Product Details
Place of Origin: JiangSu,China
Brand Name: YUSH
Certification: CE
Model Number: YSV-3A
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD1000~80000
Packaging Details: Plywooden case
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T
Supply Ability: 30Sets/Month
Maximum Speed: |
60000rpm |
Cutting Performance: |
500mm/s |
Repeated Accuracy Of Driving System: |
±0.02mm |
Drive System Motor: |
Stepping Motor |
Spindle: |
High Speed Spindle |
Machine Size: |
650*550*615mm |
Maximum Speed: |
60000rpm |
Cutting Performance: |
500mm/s |
Repeated Accuracy Of Driving System: |
±0.02mm |
Drive System Motor: |
Stepping Motor |
Spindle: |
High Speed Spindle |
Machine Size: |
650*550*615mm |

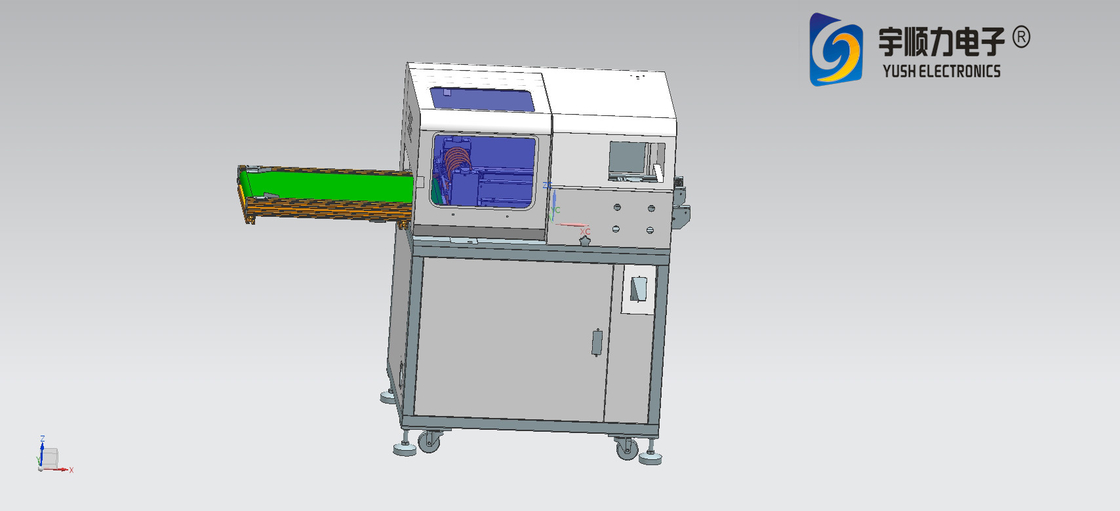

PCB Desktop pcb router,Cutting performancen 500mm/s,high speed spindle,650*550*615mm
Feafure:
1. Bench type single table cutting machine, with a speed of up to 100 mm / s and a positioning speed of 500 mm / s.
2. High quality shaft system enables the system to accelerate and decelerate quickly, reduce the synchronization time, improve productivity, and maintain high precision.
3. Use high-quality hardware to ensure high rigidity and high performance.
4. All guide screws are covered to prevent dust and dirt from entering, so as to improve the service life and performance of the shaft.
5. Avoid tin cracking and parts damage caused by artificial folding.
6. Avoid the use of punching or folding, resulting in mechanical stress problems.
7. It is suitable for cutting arc and line of finished plate.
Technical Parameters:
1. Drive system motor:stepping motor
2. Spindle:high speed spindle
3. Cutting performance:500mm/s
4. Repeated accuracy of driving system:±0.02mm
5. Cutting speed:max. 100mm / s depends on circuit board material and cutting quality
6. Resolution:±0.01mm
7. Configuration:X, y, Z three axes, stroke: 300 * 300 * 100mm, stroke can also becustomized.
8. Repeated cutting accuracy:< 0.05mm, for the contour of straight line and curve
9. PCB positioning:special or standard fixture
10. Loading and unloading mode:manual mode
11. Thickness of circuit board:0.4mm-4mm
12. Safety setting:emergency stop switch of the whole machine, emergency stop switch of the main shaft,overheat of the main shaft motor and overload detection of the servo motor
13. Spindle motor:
Power: 0.3kw
Maximum speed:60000rpm
Cooling mode:air cooling
14. Machine size:650*550*615mm
15. Weight:73KG
16. Programming mode:keypad input teaching
17. Data storage capacity:100-200 groups of files
18. Control mode:microcomputer control, online teaching programming, CAD file import
19. Transmission mechanism:guide rail + screw rod (Taiwan)
