0.3 - 3.5mm PCB Separator PCB Depaneling Machine With High Cutting Precision

China 0.3 - 3.5mm PCB Separator PCB Depaneling Machine With High Cutting Precision supplier

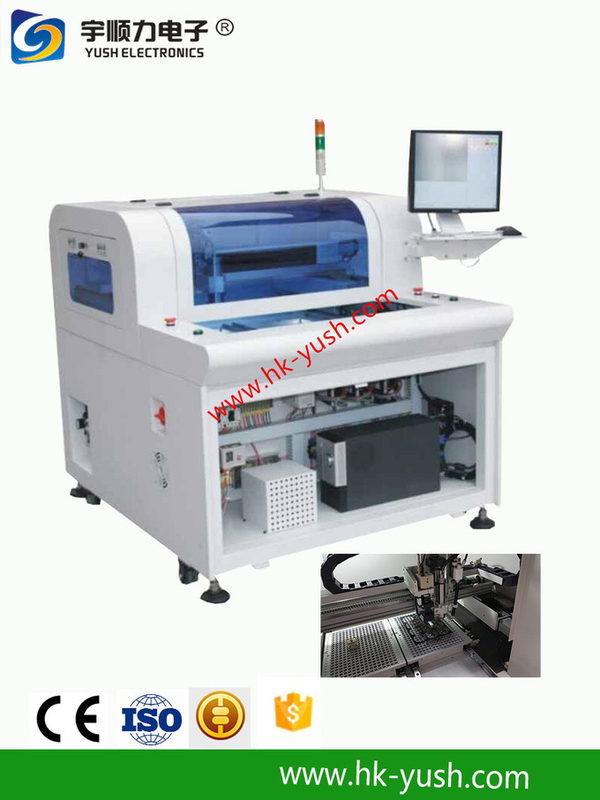

Large Image :  0.3 - 3.5mm PCB Separator PCB Depaneling Machine With High Cutting Precision

Product Details:

Place of Origin: Jiangsu
Brand Name: YUSH
Certification: ce
Model Number: YSVC-650

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Packaging Details: Wooden case
Delivery Time: 10 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 100/ month
Detailed Product Description
PCB Thickness:: 0.3-3.5mm Description:: PCB Routing Machine
Service:: Oversea Training Spindle:: Morning Star Or Germany Kavo

YSVC-650 series is a high-definition fast CCD camera to achieve professional and rapid programming, with efficient, stable, user-friendly features.


YSVC-650 cutting machine features


A small stress of the perfect solution

High-speed spindle can be achieved without postal hole cutting, components from the cutting path can reach 0.5mm



B advanced image processing software and simple and clear icons and scanning functions

HD CCD camera, easy programming

The cutting path is programmed by simply clicking on the windows computer screen in the shortest possible time

Simple operating software.



C automatic CCD camera compensation

CCD camera to read MARK automatically compensate for the relative deviation of the cutting path


D high speed x, y and z axis servomotors

Reduced waiting time and increased productivity


E intelligent milling cutter mode

Intelligent mode can significantly reduce the use of milling cutter


F efficient programming

Simple and flexible programming

Programming accuracy to 10 microns

Programming arc, round easy to achieve

Windows files are easy to store

Different models are common

Real-time display of cutting mode and X / Y axis coordinates



Overall
Dimensions(W*D*H) 1370mm*1650mm*1450mm
Weight 650KG
Height offset 60~110mm
Manipulator
Motor type JiaBao series
Positioning repeatability 0.001mm
Axis working area(max) 830mm*580mm*50mm
Work station
PCB fixation standard,specialization
PCB loading/unloading manual
PCB size (max) 420*360mm
PCB thick (max) 5mm
Fixturing
Rigidity fixturing Use client fixture
Fixturing fixation machinery
Spindle Motor
Power 150W
Spindle 60000rpm/min
Protect self/wind cooling
Change cutter Specialization
Routing capability
Cutting speed(max.) 80mm/s
Driving speed(max.) 2500mm/s
Precision of cutting 0.01mm
Vacuum System
Vacuum power 3.5KW AC 380V
Vacuum plumb
Utilities
Power 2.0KW AC380V
Air supply 4-6KG/cm2
Programming
Program edit Inline
Function edit Line,arc,circula,U-curve
Program storage HDD
Vision system SONE colour CCD
milling cutter offset AUTO
Vacuum setup AUTO
Operation Monitors
Iindicator Iindicator Machine state
tool check Automatic detection tool life, the use of time testing
Motor protect Have overheating, overload, low voltage protection function
motor over loading check Have Overload, the line is normal, low voltage protection function
Tool usable time Automatic detection tool life,
Data statistic Separate board model, separating count, diverse counting methods
Error record Software automatically records all alarms memory of machines
III. Accuracy
Axis precision 0.001mm
Cutting precision 0.1mm
IV. Safety
Working area protect With four sealed protection
Door sensor Front and rear safety door micro-switch sensor (optional)
Exigency stop button
