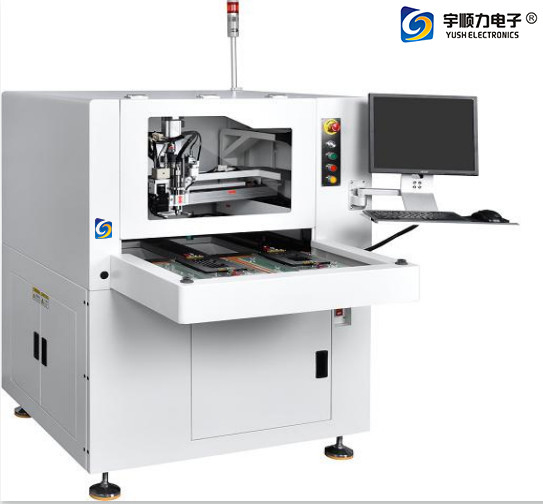

60000rpm 350 X350 Mm High-Definition Visual Alignment Automatic Offline PCB Depaneling Router
Off- line pcb depaneling router Basic specifications
01. X, Y cutting speed: 0 ~100mm/s
02. Machine Repeat Accuracy: ± 0.01mm
03. X, Y1,Y2 ,Z Control Methods: Industrial IPC and PC
04. X, Y1,Y2 ,Z Drive Mode: AC Fiber Optic Servo Motor
05. Machine Operation and Data Storage: PC System
06. Cutting accuracy: ± 0.05mm
07. Spindle speed: Max 60000rpm
08. Host voltage: 220V 1ψ 50 / 60HZ
09. Air pressure supply: above 4.5kg/cm2
10. Power Consumption: 1.8KVA
11. Dust Collection: Lower Dust Collection (Standard) or Upper Dust Collection
12. Dust collector voltage: 220V (380V) 3ψ
13. Upper dust collector size: L650*W400*H1350mm
14. Dust collector size: L665*W635*H1650mm
| Working size | Working Area | 350 X350 mm ( Customizable large size) |
| PCB Thickness | 0.3~3.5mm | |
|
Hardware brand |
Waste collection methods | Dust collection box |
| Dust collection method | Upper or Lower Vacuum | |
| Dust collection box parameters | Upper vacuum 2HP-3HP/Lower vacuum 3HP-5HP | |
| Sensor Switch Brand | Panasonic Japan | |
| Servo motor brand | Panasonic Japan | |
| Electrostatic ion wind gun brand | Taiwan | |
| Guideway Brand | Taiwan PMI | |
| Screw brand | Taiwan TBI grinding grade | |
| CCD camera brand | Germany BASLER | |
| Spindle Brand | Japan NAKANISHI | |
| Computer host brand | ASUS brand host | |
| Machine weight | 840KG | |
| Security grating | Taiwan | |
|
Electric |
Power supply | AC220/380V50/60HZ three-phase |
| Compressed air | 0.4-0.6 MPA (with filter) | |
|
Operation control |
Operating System | Chinese/English Optional |
| Software control method | PC+ Industrial Control System Control | |
| Programming methods | Computer programming, AOI scanning and editing programs faster and more accurate | |
| Warning light | Three-color sound and light alarm (normal work, waiting for test, fault alarm) | |
| With fault alarm: air pressure instability, blocking, collision | ||
|
Safe production |
Produce order mode production, four-level password protection (automatic, manual, sensor protection, etc.) | |
|
Technical Parameters |
Statistics function | Both left and right board with statistics function |
| Information management function | Support MES information system to seamlessly connect equipment and information management, Open Ethernet Interface, and supports TCP/IP network communication protocol, and necessary related software and programs; Open the BAR CODE function port. | |
| X.Y, Z, axis drive | Servo motor + screw, guide rail | |
| Worktable input and output methods | Servo motor + screw, guide rail | |
| Cutting product requirements | Left and right worktables can separate different products at the same time | |
| Cutting height requirements | Left and right worktables can separate different heights and products at the same time | |
| MARK point identification requirements | MARK points of different shapes can be identified, and MARK points can be freely set before each division. | |
| LED aperture requirements | LED aperture brightness can be adjusted in software | |
| Camera | Software controlled camera moves up and down | |
| PCB positioning and adjustment methods | Universal fixture, positioning PIN, tool fixture | |
| Milling cutter diameter range | 0.8-3.0mm | |
| Milling cutter management | The software can automatically adjust the height according to the thickness of the PCB board and the toughness length of the cutter to extend the service life of the cutter and standard tool detection. | |
| MES docking | Open MES docking port function | |
| BAR CODE scan | Open BAR CODE Scan Port Function | |
| Cutting speed | 0-100mm/S adjustable per second | |
| Working table | two worktables | |
| Cutting function | Can cut straight, curved, L-shaped, U-shaped | |
| Trouble shooting | Software can detect failure points, have I/O port detection capabilities, and have detailed alerts | |
|
Service |
Machine warranty 15 months. Our after-sales points are Suzhou, Dongguan, the United States, Brazil, Britain, France, and Turkey. Welcome to be our foreign agent. | |
Double Y-axis workbench structure, the left and right workbenches are driven by servo motors and screw guides; the left and right workbenches can split different products at the same time, and the left and right workbenches can split different products at the same time, with different heights; it can meet small batches Production, avoid excessive repetitive actions and waste of replacing jigs, fast processing speed, high production efficiency, strong stability, greatly improve processing.
The double Y-axis worktable PCB pick-up area is equipped with grating safety facilities, and there is a transparent protective cover during the cutting process to avoid accidental injury to the operator by the broken knife and flying knife, and double protection for the personal safety of the operator.
1. The high-speed imported main shaft is used to cut and split the board, which greatly reduces the cutting stress, with high precision, low inertia and fast response.
2. Milling cutter detection system, real-time monitoring of the state of the milling cutter, effectively preventing the continued operation after the cutter is broken, etc.
3. Brand-new vision system, uniform ring light source, with brightness adjustment function, making various types of Mark points better recognized, suitable for plating Tin, gold-plated, copper-plated, tin-sprayed and various PCBs of different colors are equipped with visual alignment compensation functions.
4. The software can automatically adjust the height according to the thickness of the PCB and the toughness of the milling cutter to extend the service life of the milling cutter.
Equipped with upper and lower dust suction devices, using electrostatic brushes to seal the cutting points, and independently vacuum for single cutting points, greatly improving the dust suction effect.
