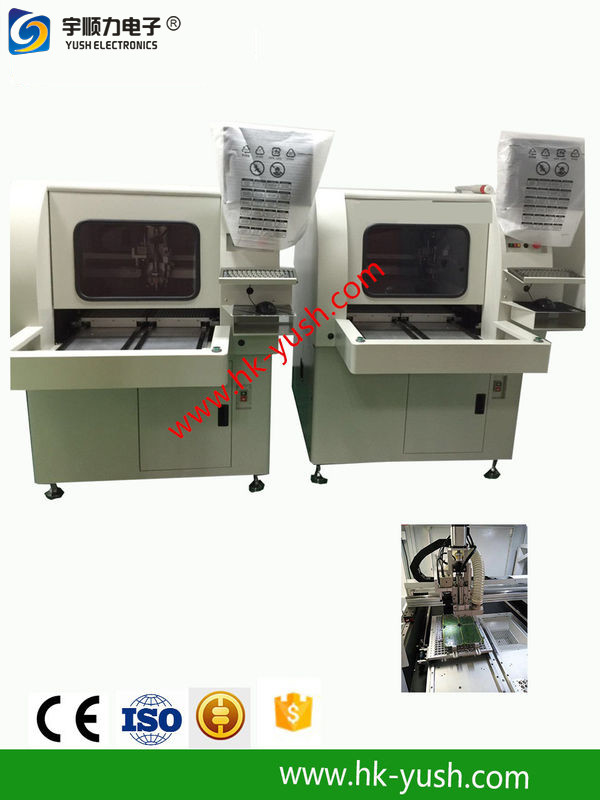

450 * 350mm Larger Pcb Depaneling Router , High Speed Pcb Off - Line Cnc Router

450 * 350mm Larger Pcb Depaneling Router , High Speed Pcb Off - Line Cnc Router
450 * 350mm Larger Pcb Depaneling Router , High Speed Pcb Off - Line Cnc Router 450 * 350mm Larger Pcb Depaneling Router , High Speed Pcb Off - Line Cnc Router

Large Image :  450 * 350mm Larger Pcb Depaneling Router , High Speed Pcb Off - Line Cnc Router

Product Details:
Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE
Model Number: YSVC-450
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000
Packaging Details: Wooden case
Delivery Time: 10 days
Payment Terms: D/P, D/A, L/C, T/T
Supply Ability: 100/ month

450 * 350mm Larger Pcb Depaneling Router , High Speed Pcb Off - Line Cnc Router

Description
Standard Working Area: 450*350mm Power: 220V, 4.2KW
High Light:

pcb depanelizer

,

pcb separator machine

PCB Depaneling Router for Larger 450*350mm PCB Boards



YSVC-450 is a new range of Router Machine. It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The system boasts being the worlds fastest router with a cycle rate of 1 seconds per tab.

It can accommodate larger PCBs in its two table configuration with maximum panel size of 450mm x 350mm.

A new Graphical User Interface (GUI) software provides user friendly "visual" programming for rapid and accurate online programming



Specification:



Model YSVC-450
Standard working area 450*350mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual or Auto
Unloading Manual or Auto
Panel Size 450*350mm
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual or Auto
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm
