PCB Automatic Magazine Loader SMT Peripheral Equipment 2220 x 845 x 1250 mm

Product Details

Place of Origin: jiangsu

Brand Name: YUSH

Certification: CE Mark

Model Number: YS-3525

Payment & Shipping Terms

Minimum Order Quantity: 1set/sets

Packaging Details: Standard packaging

Delivery Time: 3-5days

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 100set/SETS

Get Best Price
High Light:

pcb handling conveyors

,

loaders and unloaders

Weight:
210kg
Dimension(L*W*H)::
2220 X 845 X 1250 (L X W X H) (mm)
Certification::
CE
Warranty::
One Year Warranty
After-sales Service Provided::
Engineers Available To Service Machinery Overseas
Condition:
New
Voltage:
110-220V
Weight:
210kg
Dimension(L*W*H)::
2220 X 845 X 1250 (L X W X H) (mm)
Certification::
CE
Warranty::
One Year Warranty
After-sales Service Provided::
Engineers Available To Service Machinery Overseas
Condition:
New
Voltage:
110-220V
PCB Automatic Magazine Loader SMT Peripheral Equipment 2220 x 845 x 1250 mm

PCB Automatic Magazine Loader SMT Peripheral Equipment 2220 x 845 x 1250 mm



Feature:



1.PCB Magazine loader SMT peripheral equipment wholesale Automatic PCB Magazine


2. The pusher position can be adjust accordingto PCBthickness.


3. Used wear resistant cableto prevent intermittent problem.


4..SMEMA compatible



5.Sturdy and stable Design.


6.In house design control board.


7.User f riendly ‘soft touch’ LED membrane control panel.


8.Pressure regulated on pusher’sto prevent board damage.


9.Three points pneumatic clampingto align and secure magazine in position.


10.Self diagnostic Error Code display.

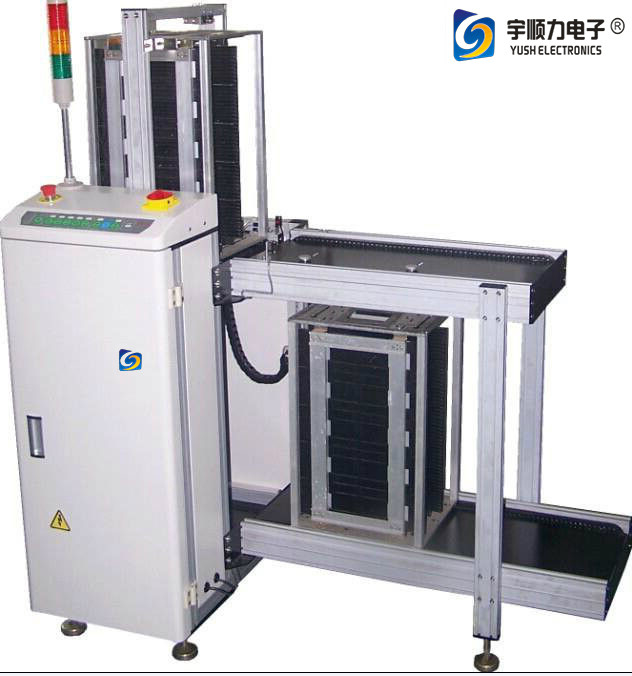

PCB Automatic Magazine Loader SMT Peripheral Equipment 2220 x 845 x 1250 mm 0



Technique Parameter :



Description Used for loading & unloading PCBs
from the Magazine
No. of Magazine Upper Conveyor:1;Lower Conveyor: 2
Time Feed PCB Approx. 6 seconds or Specify
Magazine Change Time Approx. 30 seconds or Specify
Indexing Pitch 10, 20, 30, 40mm or specify
Power Source 220VAC 50/60HZ
Air Pressure & Consume 4-6 bar, 10ltr/min max.
PCB Thickness 0.6mm min.
