630mm Max Cutting Length Pcb Separator Machine , Pcb Cutting Machine

630mm Max Cutting Length Pcb Separator Machine , Pcb Cutting Machine

  • High Light

    laser pcb depaneling

    ,

    pcb depanelizer

  • Max Cutting Length
    630mm
  • Board Thickness
    From 0.2 To 3.2mm
  • V-cut Thickness
    From 0.2 To 2mm
  • Voltage
    220 V / 110V
  • V-groove
    Is 15 Mm Pcb Cutter
  • Power
    250W
  • Place of Origin
    Jiansu
  • Brand Name
    YUSH
  • Certification
    CE
  • Model Number
    YSV-1A
  • Minimum Order Quantity
    1set
  • Packaging Details
    Plywood case
  • Delivery Time
    3 days
  • Payment Terms
    L/C, T/T

630mm Max Cutting Length Pcb Separator Machine , Pcb Cutting Machine

Features:



1. Upper blade can be adjuable between 0 and 2mm to meet different thickness of PCB and V-cut.

2. Operation platform can be adjustable higher and lower between 0 and 50mm.

3.Machine can cut boards as long as 1300mm

4.Available board thickness: 0-3.2mm . V-groove thickness:0-2mm

5.Pre-set the cutting start and end point to well control the cutting length.

6.The blades are sharp and indurable. And they can be sharpened between 7 and 10 times.

7. Minimize the shearing stress to avoid micro-cracks of the solder joints.

8. Coutrolled by microcomputer program, it can cut board accurately with no error.

9. Adjustable blade moving speed : 300mm/s or 500mm/s. As per customers' need, certain speed can be set.



Range of application:



1.It is suitable to cut PCB
2. Printed Circuit Board
3. LED Aluminum plate/LED strip/LED light bar
4. Fiberglass panel/sheet



1.Available V-cut thickness: from 0.2mm to 2.0mm
2. Available PCB thickness: from 0.2mm to 3.2 mm
3. Maximum board length: 1300mm Available PCB length

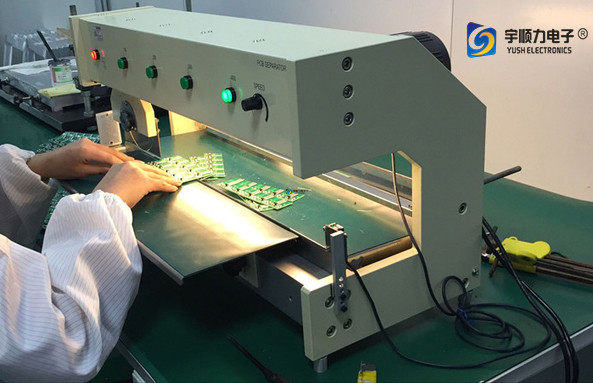

630mm Max Cutting Length Pcb Separator Machine , Pcb Cutting Machine 0



Our Advantages

1. Manufacturer.Good quality with factory / low price

2. Good after-sales service

3. Easy and safe operation



Specifications:

1.For V-cut PCB, Aluminum PCB
2.PCB thickness:0.2-3.2mm
3.PCB length:0-1300mm
4.Fast speed and lowest press
5.Blade moving
