PLC Touch Screen PCB Production Equipment , Automatic Magazine Loader

PLC Touch Screen PCB Production Equipment , Automatic Magazine Loader

  • High Light

    pcb handling conveyors

    ,

    smt magazine loader

  • Unloder Size
    (L) 1680x (W) 745x (H) 1250 + 50 /
  • PCB Size
    50 * 50 ~ 350 * 250mm
  • Warranty
    2 Years
  • Color
    Can Be Customized
  • Control Mode
    Touch Screen+PLC
  • Frame Material
    Sheet Metal 3.0mm Cold Plate Weldi
  • Place of Origin
    China
  • Brand Name
    YUSH
  • Certification
    CE
  • Model Number
    YS-3525
  • Minimum Order Quantity
    1 set
  • Price
    USD 1
  • Packaging Details
    plywood case
  • Delivery Time
    5 work days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    900 sets/month

PLC Touch Screen PCB Production Equipment , Automatic Magazine Loader

YuShun SMT PCB Loader and Unloader With Economaic Price



The main features :



1. For SMT production line terminal, after receiving a PC board signal, one by one while the receiver PCB board PCB board material is pushed into the storage box is good.
2. The track can be stored into the block a feed box, the box can be stored for a track feed box, lift table can be stored within a feed box. Lifting is selected from: 10,20,30,40mm.

3.Reliable and stable of the controlling is equipped with Micro-computer.
4.LCD monitor with user-friendly control mode is easily to operation.
5.Multi-function sound and Light Alarm of standard PCB magazine.
6.The pitch of the PCBs is available adjusted according to the components height of board.
7.The board pusher is onboard with the Unloader machine.
8.Equipped with PCBs auto-counter is easily for statistical.
9.Available to communications with other devices by SMEMA plug outlet.

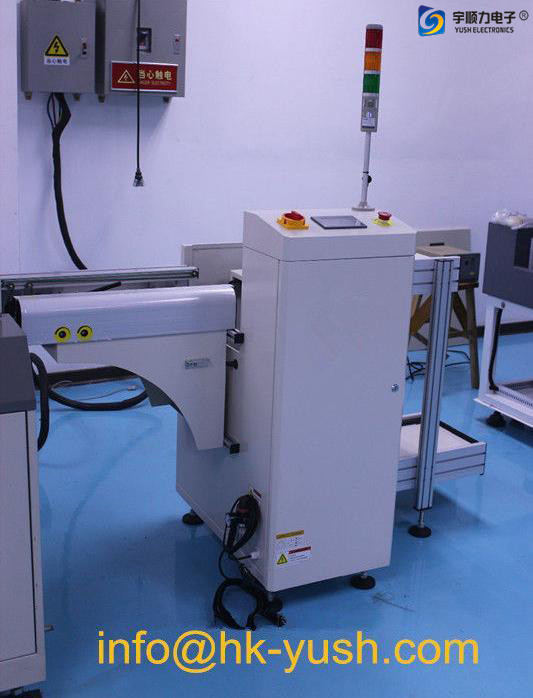

PLC Touch Screen PCB Production Equipment , Automatic Magazine Loader 0



The main configurations :


1. Dimensions: (L) 1680x (W) 745x (H) 1250 + 50 / -20mm
2. through the plate size: PCB board size 50 * 50 ~ 350 * 250mm.
3. The material box size: use PCB material for the frame size (350 * 320 * 563mm), adjustable width.
4. Transfer direction: front rail fixed, left → right transmission.
5. Transfer height: 900 + 50 / -20mm, height-adjustable shock foot cup.
7. Transfer orbit: special special aluminum rails, import φ3mm green circle with a transmission.
6. Transfer Load: may contain PCB board weight (1KG) or less.
8. Power supply: AC220V / 50-60HZ (independent electrical control box).
9. Transmission motor: GPG Taipung 15W fixed speed motor.
10. The lift motor: GPG Taipung 120W brake motors.
11. Control System: KEWEI Kuwait PLC control, Leuze side inducts start.
12. The control panel: display and control touch screen control panel.
13. The machine lifts: Taiwan imported ball screw lift, one-piece cast aluminum lift platform.
14. pusher cylinder: SMC rodless cylinder pushrod do PCB board, Pu Dima feed box clamp cylinders.
15. transmission chain: feed box out rail transport, flat black nylon engineering chain.
16. Frame Material: sheet metal 3.0mm cold plate welding, surface electrostatic powder gray computer.
17. The standard signal: SMAME male plug four core signal lines can be used directly with other devices to connect.



Our services :



1. Quick response within 24 hours.
2. On time delivery.
3. Techinical support before and after sales.



PLC Touch Screen PCB Production Equipment , Automatic Magazine Loader 1
