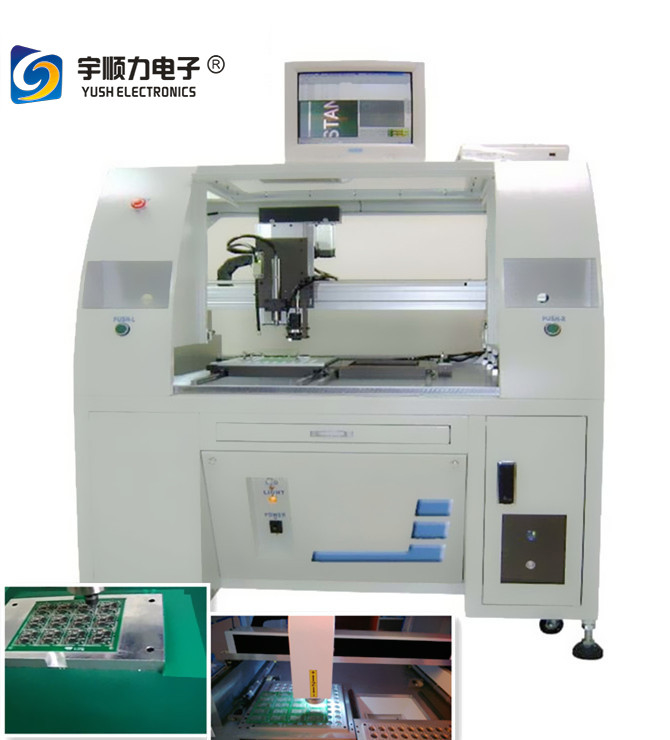

100mm / s PCB Depaneling Router Windows Routing Bit Sectioning Twin Table

100mm / s PCB Depaneling Router Windows Routing Bit Sectioning Twin Table

  • High Light

    pcb routing machine

    ,

    pcb separator machine

  • Dimension(L*W*H)
    700mm * 900mm * 1200mm
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Y Cutting Speed
    0 ~ 100mm / S
  • Z-axis Stroke
    50mm
  • Accuracy
    ± 0.01mm Machine
  • PCB (substrate) Maximum
    450mm * 500mm
  • Place of Origin
    China
  • Brand Name
    YUSH
  • Certification
    CE Certificate
  • Model Number
    YSVC-650
  • Minimum Order Quantity
    1 set
  • Price
    USD 1
  • Packaging Details
    plywood case
  • Delivery Time
    5 work days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    80 sets/ month

100mm / s PCB Depaneling Router Windows Routing Bit Sectioning Twin Table



Windows Routing Bit Sectioning Twin Table PCB Separator Machine



Gong knife board aircraft, automatic gong knife scoreboard
PCB-division
Avoid artificial tin crack and components caused by damage to the flap problem
Avoid stress problems caused by mechanical force generated
Suitable for housing varied and irregular PCB board split (straight line; arc; L-type, etc.)
X Y Z-axis with the import of 60,000 rpm / rpm spindle motor
Features
Puzzle and semi-finished products for the division
Cutting speed, high precision
Simple operation
When replacing aircraft, as long as the adjustment of the cutting process, the exchange rule to begin production
Dust collection system with high intensity, keep clean PCB and Face



Stress smallest cutting mode for Windows Routing Bit Sectioning Twin Table PCB Separator Machine


Basic Specifications :


Y Cutting speed 0 ~ 100mm / s
Accuracy ± 0.01mm machine
Z-axis stroke 50mm
X, Y, Z control or industrial PC with touch screen
X, Y, Z drive AC servo motor
Cutting accuracy ± 0.1mm
Spindle speed MAX50000rpm
Host Voltage 220V 50 / 60HZ
Air pressure 4kg / cm2 or more
Power consumption 2KVA
Dust collector dust under way
Dust collector voltage of 380V 1.5P
Host Dimension 700mm * 900mm * 1200mm
Dust collector Dimensions 680mm * 400mm * 900mm
Optional features
CCD vision system
Under the dust and dust
PCB (board) maximum 280mm * 340mm 300mm * 400mm 450mm * 500mm
Touch screen and hand-knitted or PC operation
