Single Phase PCB Depaneling Router Horizontal 100mm / S High Efficiency

Product Details

Place of Origin: jiangsu

Brand Name: YUSH

Certification: CE Mark

Model Number: YSVC-650

Payment & Shipping Terms

Minimum Order Quantity: 1set/sets

Price: 28000-30000 USA

Packaging Details: Standard packaging

Delivery Time: 3-7days

Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, L/C

Supply Ability: 100set/SETS

Get Best Price
Highlight:

pcb routing machine

,

pcb separator machine

Manipulator Motor:
Panasonic MINAS A5 Series
Maximum Axis Travel (X,Y,Z):
400mm*650mm*50mm
Routing Range:
320mm*320mm
Panel Thickness:
3mm
Manipulator Repeatability:
0.001mm
Manipulator Motor:
Panasonic MINAS A5 Series
Maximum Axis Travel (X,Y,Z):
400mm*650mm*50mm
Routing Range:
320mm*320mm
Panel Thickness:
3mm
Manipulator Repeatability:
0.001mm
Single Phase PCB Depaneling Router Horizontal 100mm / S High Efficiency

100mm / S Single Phase CNC PCB Router Horizontal High Efficiency

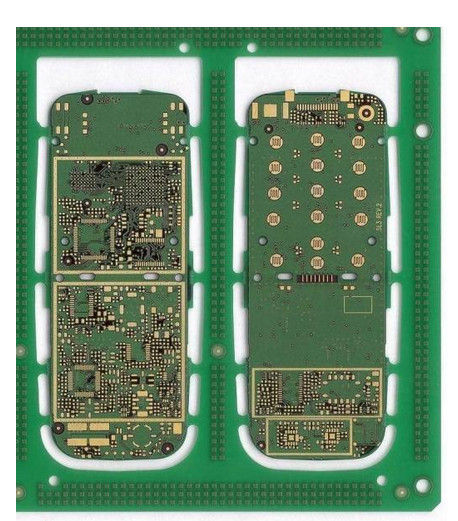

Single Phase PCB Depaneling Router Horizontal 100mm / S High Efficiency 0



feature:



1. High efficiency:It merely needs a few minutes to make a piece of PCB.

2. Safety :Enclosed Work Area ;Door Interlock Sensors ;Emergency Stop Button



Single Phase PCB Depaneling Router Horizontal 100mm / S High Efficiency 1         Single Phase PCB Depaneling Router Horizontal 100mm / S High Efficiency 2



specifications



I. Hardware
System models / types Windows XP Professional
Overall
FootPrint (LxWxH) 800mm*850mm*1700mm
Weight (Approximate) 150KG
Adjustable machine footings (for height) 60~110mm
Manipulator
Manipulator Motor Panasonic MINAS A5 series
Manipulator Repeatability 0.001mm
Axis configuration
Maximum Axis Travel (X,Y,Z) 400mm*650mm*50mm
Work station
Board Positioning Fixture positioning, thimble universal positioning, vision correction
Loading/Unloading manual
Routing Range 320mm*320mm
Panel Thickness 3mm
Fixturing
Rigid Fixturing Universal thimble & anti-static fixture
Top Clamp Using hole positioning
Spindle Motor
Power 100W
Max. speed 60000rpm/min
Cooling Natural cooling and air-cooled
Router bit size 3mm*3mm
Tool change Use Special wrench
Routing capability

Max routing speed 100mm/s
Repeatability 0.02mm
Vacuum System
Power 0.75KW220V Single phase motor
Filtration Vertical and horizontal
Utilities
Power 1.5KW AC220V
Air supply 4~5KG/cm2



Single Phase PCB Depaneling Router Horizontal 100mm / S High Efficiency 3



Our advantage:

1.we can do the designs according to the customers' requirement

2.we can offer you the high quality & reasonable price

3.we can offer your a good after-sell service .

4.we have strong professinal design team

5. promptly delivery. small order is welcome
