Large Conveying Capacity PCB Conveyor with FUJI button 160 kgs

Product Details

Place of Origin: jiangsu

Brand Name: YUSH

Certification: CE Mark

Model Number: YS-3525

Payment & Shipping Terms

Minimum Order Quantity: 1set/sets

Price: 2800-3800USD

Packaging Details: Standard packaging

Delivery Time: 3-7days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100set/SETS

Get Best Price
High Light:

loaders and unloaders

,

smt magazine loader

Payment Terms:
T/T
Min.Order Quantity:
1 Set/Sets
Magazine Dimension:
335×320×560mm
Weight:
160 Kgs
PCB Dimension:
0×50-330×250mm
Payment Terms:
T/T
Min.Order Quantity:
1 Set/Sets
Magazine Dimension:
335×320×560mm
Weight:
160 Kgs
PCB Dimension:
0×50-330×250mm
Large Conveying Capacity PCB Conveyor with FUJI button 160 kgs

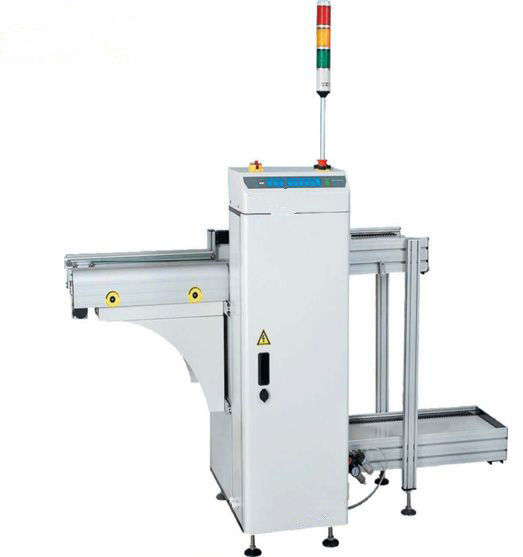

PCB Board Loader Unloader 335 Magazine Loader Easily Operation

 Apply

The PCB Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle.
Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automation equipment.

Features

1. PLC Control system.
2.  FUJI button, easily operation.
3. Four pitches selection ( 10, 20, 30, 40mm).
4. Direction from left to right or right to left (optional).
5. SMEMA compliant.



Model

YS-3525

YS-4533

YS-539

YS-3546

Effective PCB size

(L*W)~(L*W)

(50*50)~(350*250)

(50*50)~(455*330)

(50*50)~(530*390)

(50*50)~(530*460)

Dimension (L*W*H)

1000*1200*1200

1110*1360*1200

1185*1480*1200

1185*1625*1200

Size of magazine (L*W*H)

355*320*563

460*400*563

535*460*570

535*530*570

Weight

Approx 140 kg

Approx 200kg

Approx 260kg

Approx 300kg
