|Cutting Pitch:||15~480mm||Driving Motor:||1.1KW|
|Machine Size:||690*320*1050mm||Cutting Speed:||7.5M/MIN|
|Dimensions (L * W * H):||1250 * 1050 * 900||Cut Plate Width:||40-360mm|
PCB Lead Cutting Machine,
PCB Cutter Machine

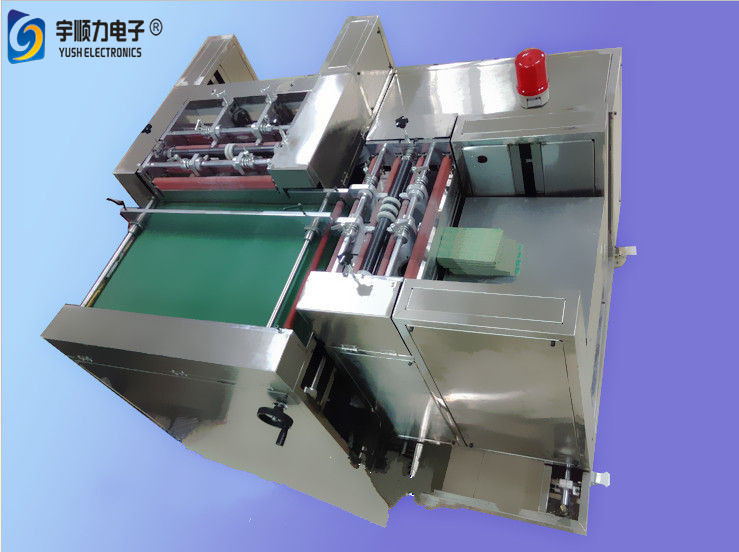

Prototype Electronic Printed PCB V Cut Machine V Groove High Speed
1. Horizontal, vertical molding machine to reduce the transfer time.
2. Easy to operate, transfer machine is simple, easy to grasp.
3. For single-sided, double-sided and multilayer circuit boards, vertical cutting.
4. Reduce handling times, five times faster than traditional V-cut machine speed, the speed can reach more than 15 m / min.
5.The use of the suction feeding system, will not scratch the surface of the product to ensure product integrity and neatly cut.
6. Automatic feeding, steering, automatic admission board, for enterprises to save part of the labor costs.
YSV-4A-Prototype Electronic Printed Circuit Board V-Groove Scoring MANUFACTURERS
Cut plate width:40-360mm
Cutting board length:75mm- any length
The thickness can be cut:0.4-3.2mm
Blade outer diameter:51 ± 2.4mm
Aluminum panels install up tool:8 pairs
V groove angle can be cut:15 ° 20 ° 30 ° 45 ° 60 °
Cardboard maximum installation tool:10 pairs
Fibreboard maximum installation tool:10 pairs
May tangent distance:14.4-360mm
