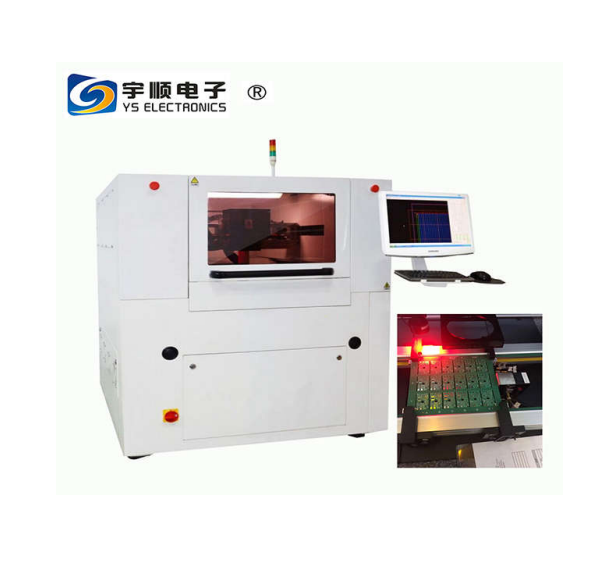

High Quality and High Efficiency PCB Laser Cutting Machine For SMT Line

Product Details

Place of Origin: Guangdong

Brand Name: YUSH

Model Number: YSV-7A

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD50000

Delivery Time: 20work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000

Get Best Price
Highlight:

PCB laser cutting machine for SMT

,

high efficiency laser depaneling machine

,

SMT line PCB cutter

Model:
YSV-7A
Laser Machine Supply Power:
AC220V / 3KW
Weight(kg):
1500KG
Beam Spot Size:
0.015mm ± 0.003mm
Model:
YSV-7A
Laser Machine Supply Power:
AC220V / 3KW
Weight(kg):
1500KG
Beam Spot Size:
0.015mm ± 0.003mm
High Quality and High Efficiency PCB Laser Cutting Machine For SMT Line
High Quality and High Efficiency PCB Laser Cutting Machine For SMT Line
High Quality and High Efficiency PCB Laser Cutting Machine For SMT Line 0 High Quality and High Efficiency PCB Laser Cutting Machine designed specifically for SMT (Surface Mount Technology) production lines, delivering precision cutting with exceptional performance.
Applications
  • Cutting various flexible circuit board materials and cover film with clean, carbonization-free results
  • High-quality, high-speed cutting of rigid materials up to 1mm (0.04") thickness
  • UV light processing through decomposition and vaporization minimizes burrs
  • Minimal thermal effect prevents stratification; produces precise, smooth cutting edges with steep sidewalls
  • Capable of cutting various substrate materials including silicon, ceramics, and glass
  • Precision etching forming of various functional films
  • Efficient FPC/PCB cutting, drilling, window covering, fingerprint identification chip cutting, TF memory card sub-boards, and mobile phone camera module cutting applications
YSV-7A Product Features
  • Neat, smooth edges after cutting with no burrs, dust, or particle residue
  • High precision cutting, especially effective for small arcs and fine cutting applications
  • Significantly reduces molding failure rates
  • Single-pass cutting capability for composite workpieces with multiple materials and varying thicknesses
  • Automatic laser head height adjustment for easy handling of double-sided surface-mounted FPC
Basic Specifications and Technical Parameters
Specification/Model YSV-7A
Laser Head SP (USA)
Laser Wavelength 355nm light wave UV laser
Max Power 10W / 15W / 17W
Worktable Location Precision ±0.003mm
Worktable Repetition Precision ±0.002mm
