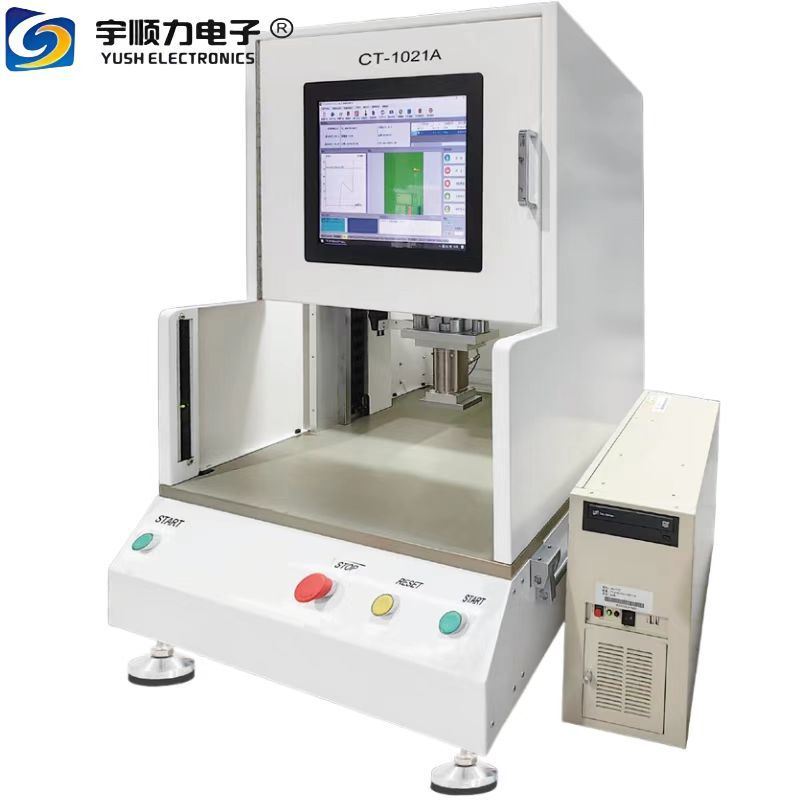

Name: High Efficiency CT-Series Desktop Semi-automatic Press-fit Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: CT-1021A
Price: 5800 USD
Availability: InStock

Product Details

Place of Origin: China,Guangdong

Brand Name: YUSH

Certification: CE

Model Number: CT-1021A

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD5800

Packaging Details: wooden case

Delivery Time: 20work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                semi-automatic press-fit machine, desktop press-fit machine, high efficiency SMT press-fit


Max. Press Force:	0.05T	Control Method:	Industrial PC+Servo Motor
Effective Press Stroke:	100 Mm	Press Block Size:	100L X 50W Mm
Safety Device:	Light Curtain

Max. Press Force:	0.05T
Control Method:	Industrial PC+Servo Motor
Effective Press Stroke:	100 Mm
Press Block Size:	100L X 50W Mm
Safety Device:	Light Curtain

High Efficiency CT-Series Desktop Semi-automatic Press-fit Machine

Product Characteristics

H-shaped structure: Consists of two vertical frames and horizontal beam with high compressive strength and deformation resistance, ensuring equipment stability
Servo motor drive enables real-time monitoring of pressure, displacement, and speed
Precise control of ram displacement and speed achieves high-precision press-fitting, effectively avoiding overpressure and underpressure
Real-time pressure monitoring with closed-loop control throughout the pressing process
Controlled by industrial computer with comprehensive SPC management, log management, user permission management, and program management
Equipped with mold and component databases for data management, with unlimited program capacity
Features pressure curve sampling control, curve slope control, and pressure/position/speed control for high-quality dynamic controllable pressing
Automatic saving, envelope, and analysis software package for pressure curve
Component alignment via laser-assisted positioning
Safety measures include dual-button start and light curtain to ensure operational safety
Supports both Chinese and English interfaces, with MES data transmission capability
Offers online and offline programming functionality
