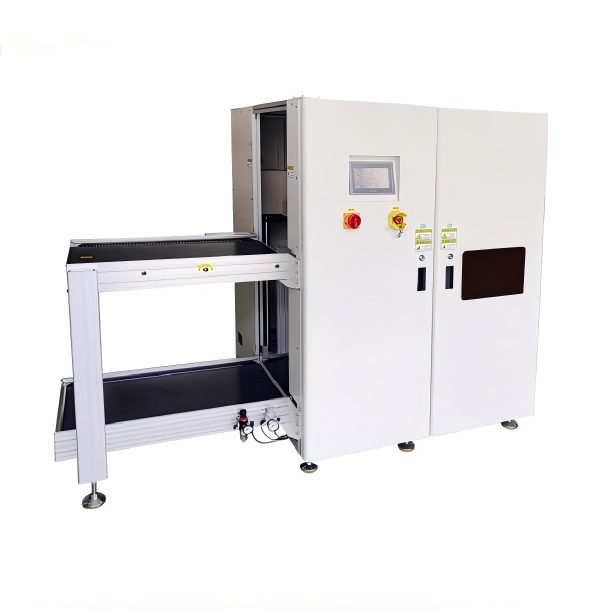

Full Auto Loader Unloader High Precision Automated SMT Line
Full Auto Loader Unloader High Precision Automated SMT Line

Full Auto Loader Unloader High Precision Automated SMT Line

Product Details

Place of Origin: GuangDong

Brand Name: YUSH

Model Number: YS-250XT

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD5000

Delivery Time: 20work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 100

Get Best Price

Product Details

Product Description
Highlight:

SMT Line Full Auto Loader

,

Precision Full Auto Loader Unloader

Weight:
220kg
Model:
YS-250XT
Air Source:
0.4-0.6MPa
Rail Transmission Height:
920±30MM
Weight:
220kg
Model:
YS-250XT
Air Source:
0.4-0.6MPa
Rail Transmission Height:
920±30MM
Full Auto Loader Unloader High Precision Automated SMT Line

Features

1.PCL control system

2.LED TFT touch screen control panel

3.Four step pitehes seleetion(10,20,30,40)

4.With the function of anti clamping plate and foolproof

5.Dircetion from left to right or right to left(option) standard

Full Auto Loader Unloader High Precision Automated SMT Line 0

Technical parameter

Overll dimension:1690*915*1680
Special aluminum profile guide ral and special Qianniao plastic chain
90W production brake motor is driven by ball screw to make Magazine step up and down
The feeding box transmission moto is a 15W constant speed platform motor
Pneumatic clamp structure
The specification of Magazin is(L)535°(W)460*(H)565mm
The maximum specification ofPCBis(L)530*(W)390mm
PCB storage quantity of plate sution machine:100PCS
Rail transmission height:920±30MM
Delivery direction righto left/eft to right
The Conveyorblt s7M flat belt
Conveyor transmission seed 9M/min
The lifting platform pitch is selected as 10,20,30,40
PLC programmable controller control
Has the function of automatic board loading and board suction
The operation control panelisa display controltrue color touch screen
Pneumatic element (the position of push plate cylinder is adjusted by screw rod)
Power supply:220V 50HZ
Air source:0.4-0.6MPa
