Desktop Pcb Router Ysatm-4c For Smt Production Line

Name: Desktop Pcb Router Ysatm-4c For Smt Production Line
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSATM-4C
Price: 10000 USD
Availability: InStock

Product Details

Place of Origin: JiangSu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSATM-4C

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: 10000 USD

Packaging Details: wooden package

Delivery Time: 3 days to 7 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:

Spindle Speed:	60000r / M	Cutting Performance:	500mm / S
Resolution::	± 0.01mm	Configuration::	X, Y, Z Three-axis, Travel: 300X300X100mm, Travel Can Also Be Customized.
Repeat Cutting Accuracy::	<0.05mm, The Outline Of The Line And Curve	Board Positioning::	Special Or Standard Fixture
Board Thickness::	0.4mm-4mm

Spindle Speed:	60000r / M
Cutting Performance:	500mm / S
Resolution::	± 0.01mm
Configuration::	X, Y, Z Three-axis, Travel: 300X300X100mm, Travel Can Also Be Customized.
Repeat Cutting Accuracy::	<0.05mm, The Outline Of The Line And Curve
Board Positioning::	Special Or Standard Fixture
Board Thickness::	0.4mm-4mm

Desktop Pcb Router Ysatm-4c For Smt Production Line

DESKTOP PCB ROUTER YSATM-4C

Features:

1.Desktop single table router machine, the speed of up to 100mm / s, positioning speed 500mm / s.
2.High-quality shaft system allows the system to quickly increase and decrease, reduce the same period of time, improve productivity, while maintaining highaccuracy.

3.Use high-quality hardware to ensure high rigidity and high performance.
4.All leadscrews are covered to prevent dust and dirt from entering, improving the life and performance of the shaft.
5.To avoid the artificial flap caused by the crack and parts damage and other issues.

Avoid the use of punch or fold, the mechanical stress generated by the problem.

6.Avoid the use of punch or fold, the mechanical stress generated by the problem.

7.Suitable for cutting of finished arc and wire.

8.Suitable for small multi-pull cutting, such as mobile phone substrate, PDA, PCinterface card.

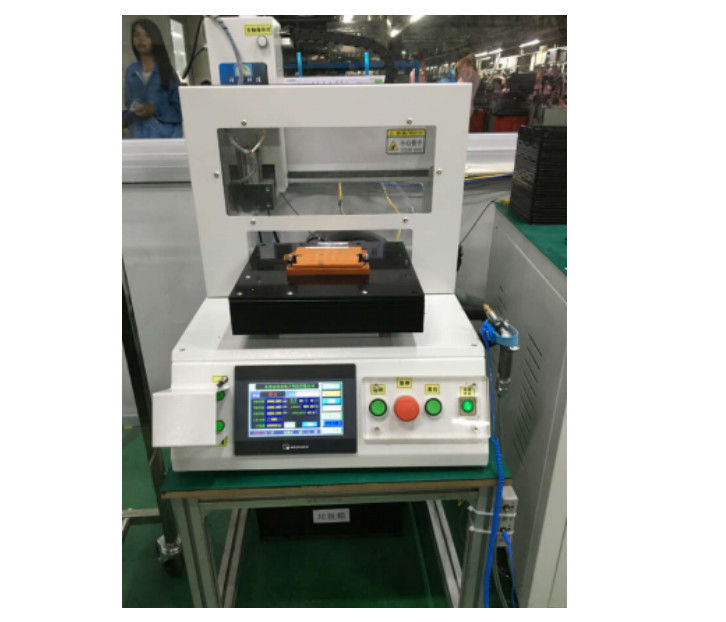

Desktop Pcb Router Ysatm-4c For Smt Production Line 0

Desktop Pcb Router Ysatm-4c For Smt Production Line 1

specification:

Drive system motor	Stepper motor
Spindle speed	60000r / m
Cutting performance	500mm / s
Drive system repeatability	± 0.01mm
Cutting speed:	Maximum 100mm / s depends on the circuit board material and cutting quality.
Resolution:	± 0.01mm
Configuration:	X, Y, Z three-axis, travel: 300X300X100mm, travel can also be customized.
Repeat cutting accuracy:	<0.05mm, the outline of the line and curve
Board positioning:	Special or standard fixture
loading and unloading methods:	Manual way
Board thickness:	0.4mm-4mm
Safety settings:	Machine emergency stop switch, spindle emergency stop switch, spindle motor overheat and servo motor overload detection.
Spindle motor Power:	0.3 kW
Cooling method:	Air-cooled
Machine size:	660 * 520 * 700mm
Weight:	73KG
CCD and monitor optional	CCD and monitor optional
Programming:	keypad input teaching
Data storage capacity:	100-200 group of documents
Control:	Microcomputer control, online programming, CAD file import
Transmission:	Rail + screw (Taiwan)
Vacuum cleaner:	1.5KW, 380V; Size: 680 * 400* 900mm ;24
Vacuum way:	Under the vacuum
Safety measures (option):	Equipped with protective cover

Desktop Pcb Router Ysatm-4c For Smt Production Line 2

The machine can be customized large area: 650 * 500mm :

The machine can add safety cover:
