Highlight:
High Quality Stencil Cleaning Machine
, 240kg Stencil Cleaning Machine
, Full Pneumatic Stencil Cleaning Machine
Stencil Size: |
750mm(L) ×750mm(W) × 40mm(H)as Max |
Liquid Tank Capacity: |
40L（as Max） |
Wash Method: |
360°double Side Rotary Nozzles Liquid Spray Wash |
Dry Methods: |
360°double Side Rotary Nozzles Spray Liquid Air Blow Dry |
Clean Time: |
2-4 Min（solder Paste Stencil） |
Dry Time: |
2-5 Min（solder Paste Stencil） |
External Air Source: |
0.4Mpa~ 0.6Mpa |
Air Consumption: |
400-600L/min |

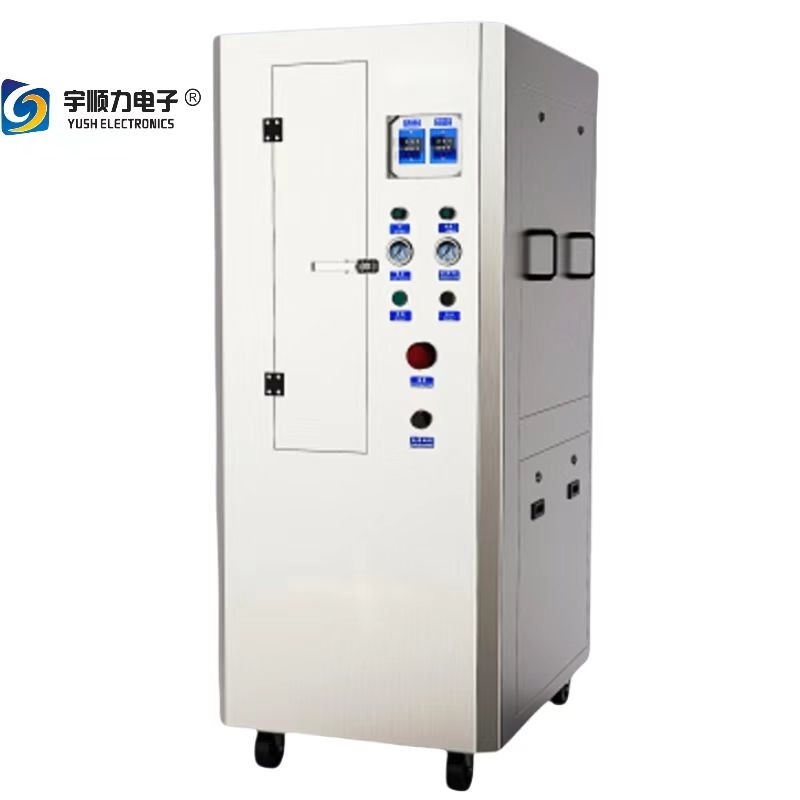

high quality Full Pneumatic Stencil Cleaning Machine Weight 240kg
0.4Mpa~ 0.6Mpa Pneumatic Stencil Cleaning Machine For Solder Paste Stencil Glue Cooper/Rubber Stencil
Pneumatic Stencil Cleaner
Model:YSL-600
YSL-600 Main Features:
All stainless steel body: beautiful, wear resistance, corrosion resistance, in line with
environmental requirements and standards;
Ø Full pneumatic operation, no electricity, no fire and other safety risks;
Ø Side wall air intake blow-drying design;
Ø User-friendly design: one-button operation and automatic filling and draining function, easy
to operate;
Ø Replaceable modular controller and quick-plug design make maintenance easy and
convenient.
Ø Two-stage filtration system, low exhaust and S-shaped exhaust duct design: solvent
recycling, low liquid consumption; Ø High density isobaric double rotating cleaning nozzle,
strong cleaning power, does not damage the tension of steel mesh.
Ø Systematic integration of global quality control devices to ensure excellent quality, stable
performance and long service life;
YSL-600 Flow chart:
YSL-600 main spec:
| S/N |
ITEM |
SPEC |
REMARKS |
| 1 |
Stencil size |
750mm(L) ×750mm(W) × 40mm(H)as max |
|
| 2 |
Liquid tank capacity |
40L(as max) |
|
| 3 |
Wash method |
360°double side rotary nozzles liquid spray wash |
|
| 4 |
Dry methods |
360°double side rotary nozzles spray liquid air blow dry |
|
| 5 |
Clean time |
2-4 min(solder paste stencil) |
|
| 6 |
Dry time |
2-5min(solder paste stencil) |
|
| 7 |
Filter systems |
1mm SUS 304 fliter net—Protect pum；
20um filter bag — for lables, screws;
1um filter elements— for solder balls,red glue.
|
Liuqid recirculation use |
| 8 |
Air supply |
0.4Mpa~ 0.6Mpa |
|
| 9 |
Air consumption |
400-600L/min |
|
| 10 |
Net weight |
240Kg |
|
| 11 |
Vent size |
Φ120xH30mm |
|
| 12 |
Machine size |
800mm(L)×950mm(W)×1650mm(H) |
|
Cleaning result comparision
Before cleaning
After cleaning
solder paste stencil red glue rubber stencil
red glue cooper stencil
Standard equipped with solvent add in and discharge function. Solvent add in and discharge very convienent.
Super wel-known pneumatic parts guarantee a stable, reliable and high quality machine and good clean result.
Maintenance and maintenance
1. Automatic filling and draining
2.Controller maintenance
3.Replaceable modular controller and quick-plug design
4. Maintenance,maintenance is simple and convenient
