Highlight:
                                                                                                                                                                                                                Semi Auto SMT Assembly Line, High Precision SMT Assembly Line, Energy Saving SMT Assembly Line


Accuracy:	+/- 0.05mm	PCB Size:	300 X 350 Mm
Platform Size:	300 X 350 Mm	Stencil Size(mm):	370470,550650
PCB Thickness:	0.2 - 6 Mm

Accuracy:	+/- 0.05mm
PCB Size:	300 X 350 Mm
Platform Size:	300 X 350 Mm
Stencil Size(mm):	370470,550650
PCB Thickness:	0.2 - 6 Mm

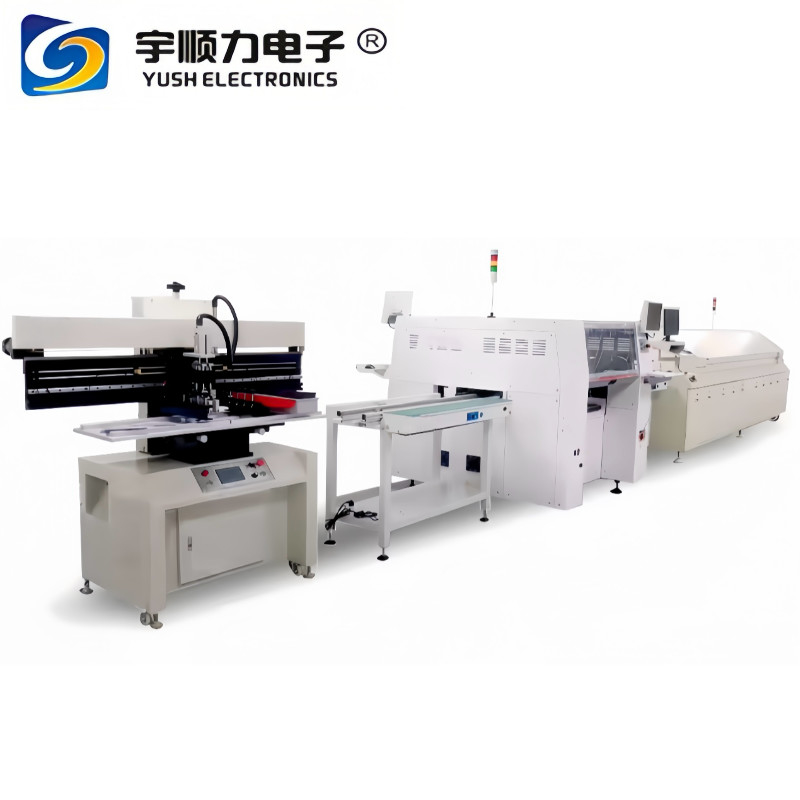

Semi Auto High Precision Energy Saving SMT Assembly Line For LED

Semi-Auto High Precision Energy Saving SMT Assembly line For LED

Low speed SMT production line with high quality and professional SMT solutions. welcome to contact us and got a good price.

Parameter

Semi-auto SMT Stencil Printer

Model	P3	P6	P12
Accuracy	+/- 0.05mm	+/- 0.05mm	+/- 0.05mm
PCB Size	300 x 350 mm	600 x 350 mm	1200 x 350 mm
Platform size	300 x 350 mm	700 x 400 mm	1350 x 400 mm
Stencil Size(mm)	370470,550650	370470,550650	370470,550650,1500*650
PCB Thickness	0.2 - 6 mm	0.2 - 6 mm	0.2 - 6 mm
Stencil Positioning	Manual	Manual	Manual
Cycle Time	< 10 Sec.	< 10 Sec.	< 12 Sec.
Power Consumption	200 W	200 W	200 W
Power Supply	1 -PH, 220VAC 50/60HZ	1 -PH, 220VAC 50/60HZ	1 -PH, 220VAC 50/60HZ
Air Pressure	4.5-6 kg/cm	4.5-6 kg/cm	4.5-6 kg/cm
Squeegee Speed	0-1500mm/sec	0-1500mm/sec	0-1500mm/sec
Dimension	850x750x1650 mm	1050x750x1650 mm	1660x750x1650 mm
Weight	280 Kg	300 Kg	356 Kg
Squeegee Length	250mm	250mm	250mm
Platform Height	950mm	950mm	950mm
Option: Special size can be customized

Reflow Oven

Model	622	733
Dimension (LWH)mm	5040x1450x1450	5800x1450x1450
Machine Weight	Approx. 2200KG	Approx. 2400KG
Number Of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length Of Heating Zones	3030mm	3730mm
Number of Cooling Zones	2	3
Control System	PLC+Computer	PLC+Computer
Transmission Agent	Chain + Mesh	Chain + Mesh
Max.Width Of PCB	460mm	460mm
Power For Warm Up	45kw	55kw
Power Consumption	8kw	10kw
Conveyor Height	900+/-20mm	900+/-20mm
