High Precision Series Automatic Visual Online PCB Depaneling Router Machine

Name: High Precision Series Automatic Visual Online PCB Depaneling Router Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-880
Price: 57,250.00 USD
Availability: InStock

Product Details

Place of Origin: jiangsu

Brand Name: Yushunli

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSL-880

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 6500~108000

Packaging Details: Plywooden case

Delivery Time: 3 days to 7 days

Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability: 300 sets/ month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                High Precision PCB Depaneling Router, Visual Online PCB Depaneling Router, Automatic PCB Depaneling Router


Working Environment:	-20℃- +45℃	Working Environment Humidity:	30%-60%
Machine Size:	201412301650mm	Vacuum Cleaner Size:	6407851760mm
Weight Of Machine With Vacuum Cleaner:	1000kg	Equipment Power:	Ac:220V±10% 50/60HZ 3.5KW
Vacuum Cleaner Power:	Ac:380V±10% 50/60HZ 3kw	Cutting Accuracy:	±0.1mm
PCB Cutting Thickness:	0.3-6mm	Cutting Speed:	0-100mm/s

Working Environment:	-20℃- +45℃
Working Environment Humidity:	30%-60%
Machine Size:	201412301650mm
Vacuum Cleaner Size:	6407851760mm
Weight Of Machine With Vacuum Cleaner:	1000kg
Equipment Power:	Ac:220V±10% 50/60HZ 3.5KW
Vacuum Cleaner Power:	Ac:380V±10% 50/60HZ 3kw
Cutting Accuracy:	±0.1mm
PCB Cutting Thickness:	0.3-6mm
Cutting Speed:	0-100mm/s

High Precision Series Automatic Visual Online PCB Depaneling Router Machine

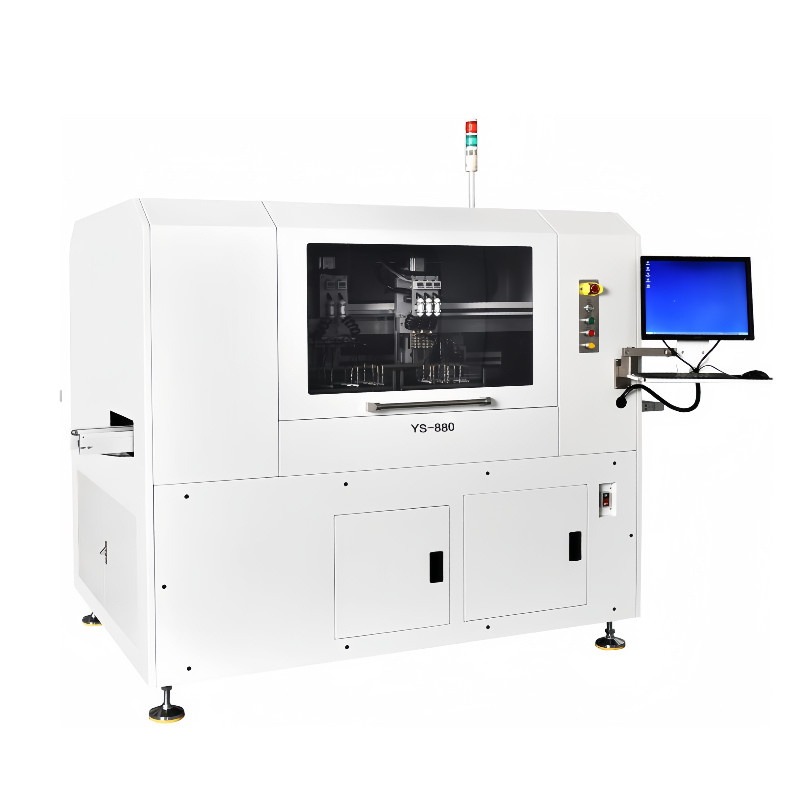

YS-880 Automatic Visual Online PCB Depaneling Router

Product Features:

The whole series is equipped with high-speed CCD vision automatic correction system, which greatly improves the cutting accuracy and operation efficiency. Adopt high-speed spindle to separate the board, with low cutting stress and high precision, suitable for PCB boards with irregular shapes. Dual working platforms can perform cutting and circuit board placement at the same time, improving work efficiency. Self-developed dust collection device, low noise, high efficiency, easy maintenance and cleaning.

Application industry:

YS-880 automatic visual online PCB Depaneling Router

YS-880 automatic PCB Depaneling machine is equipped with visual alignment correction function as standard, which is more suitable

for high-precision and high-capacity PCB cutting and splitting operations. Such as mobile phones, automotive electronics, medical equipment, aerospace. Widened and large size is suitable for the sub-board processing of large circuit boards such as digital TVs, PC motherboards, servers, etc. Standard jigs or special jigs can be used to assist in cutting the board to increase productivity. Use dual working platforms to place workpieces to reduce waiting time and increase productivity.

Technical parameters and specifications:

1.Cutting parameters

Cutting accuracy	±0.1mm
Repeatability	±0.02mm
Maximum moving speed	XY axis 1000mm/s,Z axis 800mm/s
Cutting speed	0-100mm/s
Maximum working range	300mm*350mm
PCB cutting thickness	0.3-6mm
Applicable cutter size	0.8-3.0mm
Feeding method	Rail conveyor
Discharge method	Rail conveyor
Flow direction	Left→right or right→left

2.Equipment

Equipment power	Ac:220V±10% 50/60HZ 3.5KW
Vacuum cleaner power	Ac:380V±10% 50/60HZ 3kw
Gas source	4-6kg/cm²- 6 -
Working environment	-20℃- +45℃
Working environment humidity	30%-60%
Machine size	201412301650mm
Vacuum cleaner size	6407851760mm
Weight of machine with vacuum cleaner	1000kg

Product Features:

.On-line automatic board depaneling, automatic board feeding, cutting board out greatly improving efficiency and saving labor costs

.The whole series are equipped with CCD camera alignment system to improve cutting accuracy and efficiency and prevent misoperation

.Imported high-speed spindle is used to cut and separate the board, which greatly reduces the cutting stress, has small inertia and quick response

.Double platform structure design, improve cutting efficiency

Inboard structure:

.The board is transported by rail

.Plywood positioning function after PCB board feeding

.The feeding structure vacuum suction cup automatically sucks the PCB to the fixture board for cutting

Outboard structure:

.The finished product and waste are cut on the vacuum suction jig and placed on the waste and conveyor belt respectively

PCBA pick and place structure:

.Pick and place device: automatic loading and unloading (modular vacuum suction claw, vacuum device, can be independently controlled)

.Transmission structure: X movement and Z1 Z2 suction, AC servo motor control

.Pick-up speed:500mm/sec
