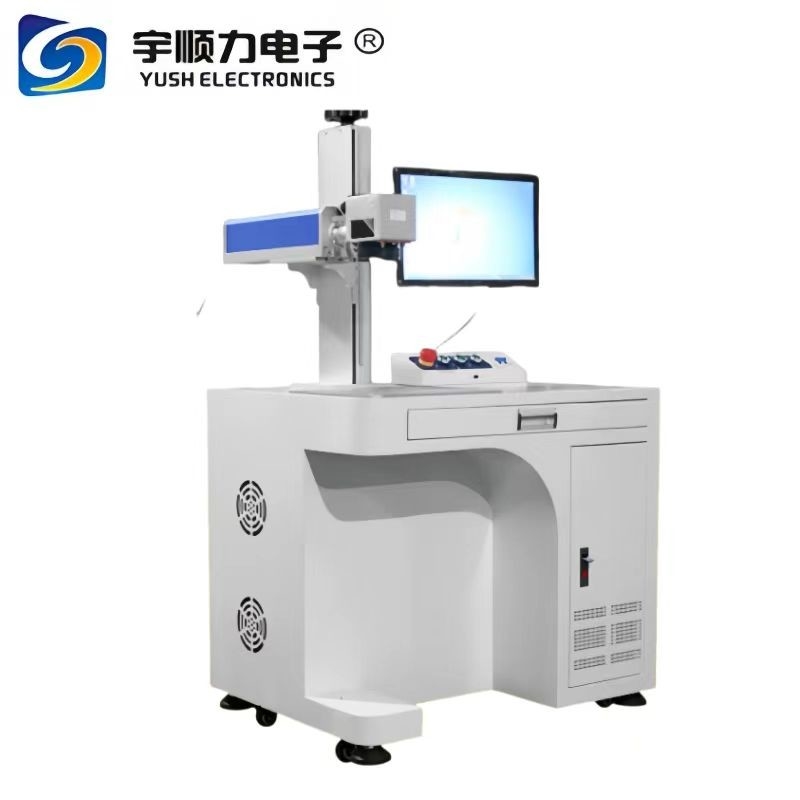

MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W

Product Details

Place of Origin: Jiangsu

Brand Name: Yushunli

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSL-M20D

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 7000~12000

Packaging Details: Plywooden case

Delivery Time: 3 days to 7days

Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability: 300 sets/ month

Get Best Price
Highlight:

20W MOPA Fiber Laser Marking Machine

,

Fiber Laser Marking Machine

Equipment Type:
YSL-M20D YSL-M30D
Laser Output Power:
20W
Central Wavelength:
1064nm
M2:
<1.5 <1.6
Marking Range:
140mm*140mm 200mm*200mm
140mm*140mm 200mm*200mm:
About 162mm About 290mm
Minimum Line Width:
The 0.05 Mm
Minimum Character:
The 0.3 Mm
Laser Repetition Rate:
1-4000kHz
Equipment Type:
YSL-M20D YSL-M30D
Laser Output Power:
20W
Central Wavelength:
1064nm
M2:
<1.5 <1.6
Marking Range:
140mm*140mm 200mm*200mm
140mm*140mm 200mm*200mm:
About 162mm About 290mm
Minimum Line Width:
The 0.05 Mm
Minimum Character:
The 0.3 Mm
Laser Repetition Rate:
1-4000kHz
MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W

MOPA Fiber Laser Marking Machine YSL-M20D



MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W 0





Equipment Analysis

MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W 1

Means of indicators



The advantages of MOPA fiber laser marking machine:



1.MOPA series are high power fiber lasers using a direct electrically modulated semiconductor laser as a seed source (MOPA) solution.It has perfect laser characteristics and good pulse shape control. MOPA fiber lasers compared to Q-switched fiber lasers the pulse frequency and pulse width are independently controllable, and the constant peak power transmission can be achieved by adjusting and matching the two laser parameters and can be applied to a wider range of marking substrates. In addition, turn the impossibility of Q-switched lasers into the possibility of MOPA, higher the output power makes it particularly advantageous in high-speed marking applications.



2.Greatly save energy expenditure. Low cost of use.



3.The laser does not need any maintenance, nor does it need to adjust or clean the lens.



4.The use of laser diode as a pump source.



5.The laser achieves laser distance transmission through optical cable and has a compact structure. Good heat dissipation effect, no need for a huge water cooling system,Only a simple air cooler is required. It can also be used in harsh environments such as shock, vibration, high temperature or dust.



6.The processing speed is 2-3 times of the traditional laser marking machine.





parameter of apparatus



MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W 2





Device name MOPA fiber laser marking machine MOPA fiber laser marking machine
Equipment type YSL-M20D YSL-M30D
Laser output power 20W 20W
Central wavelength 1064nm 1064nm
M2 <1.5 <1.6
Marking range 140mm*140mm 200mm*200mm
Focal distance About 162mm About 290mm
Minimum line width The 0.05 mm The 0.05 mm
Minimum character The 0.3 mm The 0.3 mm
Laser repetition rate 1-4000kHz 1-4000kHz
Pulse width 2-350ns 2-350ns
Engraving depth The 0.01 mm The 0.01 mm
repeatability + / - 0.002 mm + / - 0.002 mm
Overall power 0.5KW 0.6KW
Rated input power of the power supply 0.5KW 0.6KW
Cooling system Air cooling Air cooling
Electricity demand 220v/50Hz 220v/50Hz
Support format AI, BMP, DST,DWG, DXF, LAS, PLA AI, BMP, DST,DWG, DXF, LAS, PLA
Machine appearance dimension 800mm*680mm*1500mm 800mm*680mm*1500mm





Equipment shooting



MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W 3 MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W 4

                     Left                                                                            Right



     MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W 5            MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W 6



                        Package                                                  Package



MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W 7         MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W 8



                    Back interior detail                                Side interior detail





Component analysis



MOPA Fiber Laser Marking Machine YSL-M20D Laser Output Power 20W 9
