Lamp Splitter Machine With Stainless Steel Platform YSL-750

Product Details

Place of Origin: JiangSu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSL-750

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 3000

Packaging Details: Plywooden case

Delivery Time: 3 days

Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability: 300 sets/ month

Get Best Price
High Light:

60W Lamp Splitter

,

750 Plate Splitting Machine

Machine Specification:
490mm*400mm*350mm
Plat Size:
1200*450*350mm
Maximum Splitter Length:
Unlimited
Split-plate Velocity:
80, 120, 200, 400mm/S
Power:
60W
Machine Specification:
490mm*400mm*350mm
Plat Size:
1200*450*350mm
Maximum Splitter Length:
Unlimited
Split-plate Velocity:
80, 120, 200, 400mm/S
Power:
60W

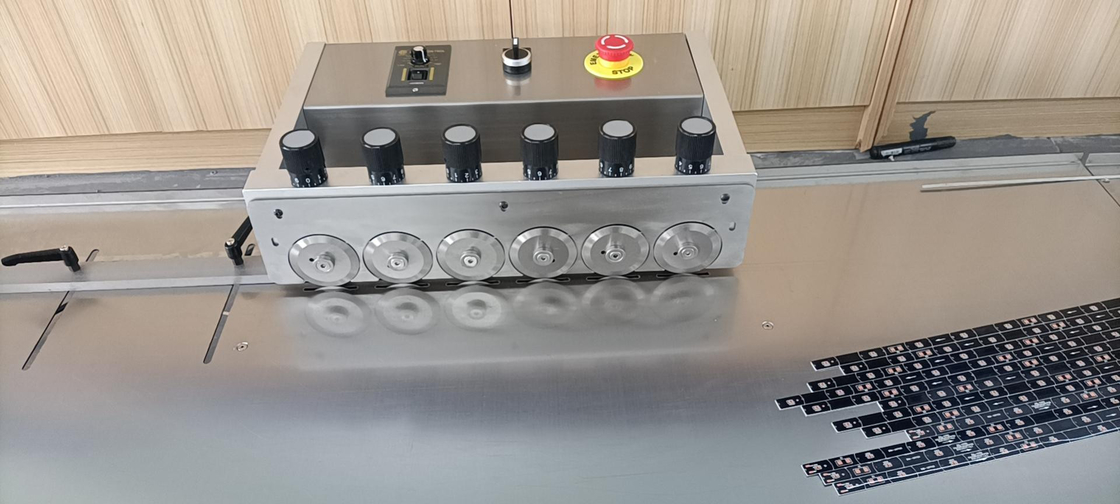

Lamp Splitter Machine With Stainless Steel Platform YSL-750
Features:
1. 750 plate splitting machine adopts six groups of cutting tools to cut step by step to reduce the shear stress to the minimum, and is equipped with deformation control device, the edge of the segmented substrate is smooth and smooth, the surface is very smooth, no twisting or warping, yes
About 0.6mm ultra-thin aluminum substrate slitting can still perfectly control its deformation in two wires, meet the glass
The strict requirement of deformation degree in pipe process
2.  Because of multiple cutting, the cutting process is very smooth, greatly improving the positioning ability of V-CUT slot, even if the V-CUT slot is very shallow circuit board, there will be no V-CUT slot from the guide knife jump out of the situation, to avoid defective products.
3. All cutting blades are calibrated with an excited dual-frequency laser interferometer to ensure that the rear blade can be cut in the slot of the front blade
Continue cutting exactly. Tip beat no more than 0.02mm, to ensure perfect cutting quality.
4. Stainless steel platform with laser calibration positioning function (1.2m or 2.4m optional)

Lamp Splitter Machine With Stainless Steel Platform YSL-750 0

Application field
The YSL-750 is used in:
750 plate machine adopts six groups of cutting tools to cut step by step, the shear stress is reduced to the minimum, and the deformation control device is configured, the edge of the segmented substrate is smooth, the surface is very flat, no twisting or warping, the ultra-thin aluminum substrate cutting about 0.6mm can still perfectly control its deformation in two wires, to meet the glass tube process on the deformation of the harsh requirements.
Because of multiple cuts, the cutting process is very smooth, greatly improve the positioning ability of V-CUT slot, even if the V-CUT slot is very shallow circuit board, there will be no V-CUT slot from the guide knife jump out of the situation, avoid bad
a. Mainly used in electronic, electrical, lighting, medical, automobile new energy, automobile and other electronic technology industries;

Lamp Splitter Machine With Stainless Steel Platform YSL-750 1

Defective PCB board

Lamp Splitter Machine With Stainless Steel Platform YSL-750 2

Machine sub-board after PCB board

Lamp Splitter Machine With Stainless Steel Platform YSL-750 3

Equipment parameter

Machine specification 490mm*400mm*350mm
Plat size 1200*450*350mm/2400*450*35mm
Maximum splitter length Unlimited
Split-plate velocity 80, 120, 200, 400mm/s
Power 60W
Tool material SKD61 High speed steel
Plate thickness 0.2-5mm
Machine weight 1.2M—65KG;2.4M—75KG
Power supply 230V/50Hz(110V/60Hz)

Board operation procedure

Lamp Splitter Machine With Stainless Steel Platform YSL-750 4

value
A Cost saving
Maximum plate cutting length: unlimited, maximum plate thickness :0.2-5mm, the cutting force of the blade is small, and the use of high-speed steel materials imported from Germany, the blade durability is greatly improved, the blade life can reach more than one year when dividing the aluminum substrate. Applicable circuit plate wide range, save manpower, greatly improve the product efficiency.
B High equipment efficiency
X and Y axis can be adjusted freely to improve the cutting accuracy to the highest. The speed of the sub-board can reach 80, 120, 200, 400mm/ s. The upper and lower round knife can be adjusted accurately, simple operation, fast speed.
C Quality is guaranteed
All cutting blades are calibrated with an excited dual-frequency laser interferometer to ensure that the rear cutter can accurately continue cutting in the slot where the front cutter cut. Tip beat no more than 0.02mm, to ensure perfect cutting quality.

Lamp Splitter Machine With Stainless Steel Platform YSL-750 5

Equipment advantage
A Cost-efficiency
● "V" groove guide device can adjust the height vertically, faster and more stable to adapt to different thickness of the substrate, increase the range of use
● The cutting knife can be turned over and reused many times to reduce the cost
B Safety design
● The stroke of the cutting plate is less than 1-2mm, and there is no concern about the operation safety
C Stability performance
● The blade parts are made of SKD11 high speed steel, wear-resistant, durable, guaranteed for one year
● Stainless steel platform with laser calibration positioning function (1.2m or 2.4m optional). There is no limit to the length of the board.

Lamp Splitter Machine With Stainless Steel Platform YSL-750 6

Process solution
Customer question: How many MM board can be divided into the narrowest light strip board?
Answer: The narrowest board can be less than 3.5MM, if you want to divide the aluminum base plate, it is recommended to use a double knife seat dividing machine
Customer question: machine maintenance consumables, life
A: All the products of the company include blades and accessories, 3 months warranty, the life of the cutter
The length of life is determined by several aspects, the first is the material, the imported high speed steel will be better than the ordinary
The material should be durable, secondly, the material of the cutting board will also affect the life of the tool, cutting glass fiber board
It will be more durable than cutting aluminum substrate
Customer question: light strip machine can be divided every day how many strips
A: The light strip splitter can be 12,000 to 15,000 strips per day, the speed is 400M/S, 8-10 hours
