Product Details
Place of Origin: JiangSu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

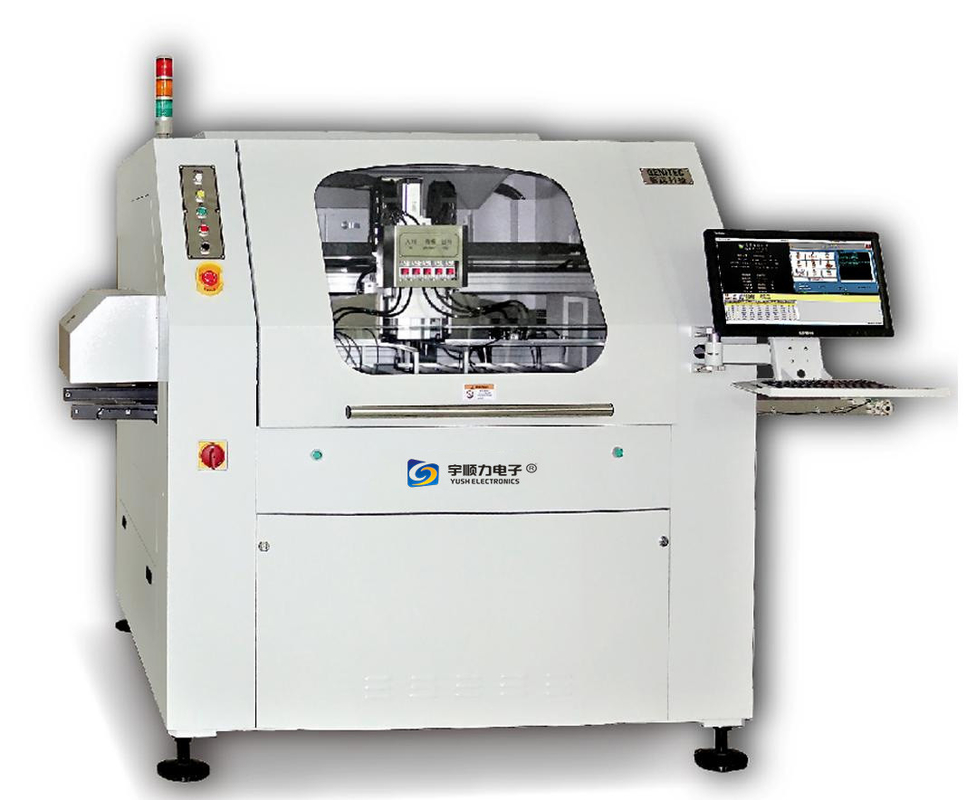

Model Number: YSL360AT
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 11000
Packaging Details: Plywooden case
Delivery Time: 3 days
Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability: 300 sets/ month
XYZ Shaft Drive Mode: |
Panasonic AC Servo Motor |
Number Of Stored Knives: |
8 PCS |
Program Teaching Mode: |
CCD Color Image Intuitive Instruction Input |
Safety Protection: |
Safety Grating Protection |
Cutter Detection: |
Standard Arrangement |
XYZ Shaft Drive Mode: |
Panasonic AC Servo Motor |
Number Of Stored Knives: |
8 PCS |
Program Teaching Mode: |
CCD Color Image Intuitive Instruction Input |
Safety Protection: |
Safety Grating Protection |
Cutter Detection: |
Standard Arrangement |
| Number | Name | Function |
| 1 | Bar code camera | Used to read the bar code on the PCB |
| 2 | Laser height module | Used to check whether the PCB is properly placed |
| 3 | CCD | Used to read the bar code on the PCB |
| 4 | Anti-riot dust collector | Prevent the collected dust from exploding |
| 5 | Fingerprint identification module | Operating log-in permits for different personnel |
| 6 | Tool diameter test module | CCD camera is used to detect the diameter of the milling cutter to prevent the wrong use |
Entry track
• With automatic width adjustment function.
• With automatic clamping and limiting device.
• Connect to front-end devices to deliver 900±50mmo height
• Board edge W5min.
Split-plate platform
• Single working platform.
• Automatic cover plate when in place.
• Use servo modules for load shifting and positioning.
• The suckers can be replaced modulatively.
Take and release module
• Put the PCB into the sub-board platform by adsorption on the left side, and put the divided PCB into the back belt line by absorption on the right side.
• Different types of sucker modules can be made for quick modular replacement.
• Optional jaw type taking and discharging materials according to customer needs.
| Lead plane | |
| XYZ shaft drive mode | Panasonic AC servo motor |
| Number of stored knives | 8PCS |
| Program teaching mode | CCD color image intuitive instruction input |
| Safety protection | Safety grating protection |
| Cutter detection | Standard arrangement |
| Program backup | USB |
| Operating system | Windows 10 |
| Control mode | Precision multi-axis control system |
| Operating interface | Monitor + keyboard + mouse |
| PCB loading/unloading | Automatic plate placing and taking |
| Power supply specification | AC220V 50/60HZ 4KW (single-phase) |
| Air source specification | 0.5Mpa |
| Overall dimension | 2284mm(L)X1605mm(D)X1716mm(H) |
| Weight | 930KG |
| Dust collector | ||
| Standard model | YS300L (Dust collection) | YS200L (Next dust collection) |
| Power supply specification | AC380V 50/60HZ | AC380V 50/60HZ |
| Output power | 4. 5KW (6HP) | 3. 7KW (5HP) |
| Inlet wind speed | 29m/s | 62m/s |
| Vacuum value | 310mbar | 260mbar |
| Inlet/outlet diameter | D50mm/D125mm | D150mm/D200mm |
| Filter bag material/grade/size | Polyester/HEPA/W610*L750mm | Polyester/PTFE/D120*L600mm |
| Bucket capacity | D400*H600mm | W540*D600*H140mm |
| Motor protection class | IP54 | IP54 |
| noise | <78dp | <79dp |
| weight | 130kg | 220kg |
| Overall dimension | 1050mm(W)*530mm(D)*1200mm(H) | 888mm(W)*738mm(D)*1772mm(H) |
