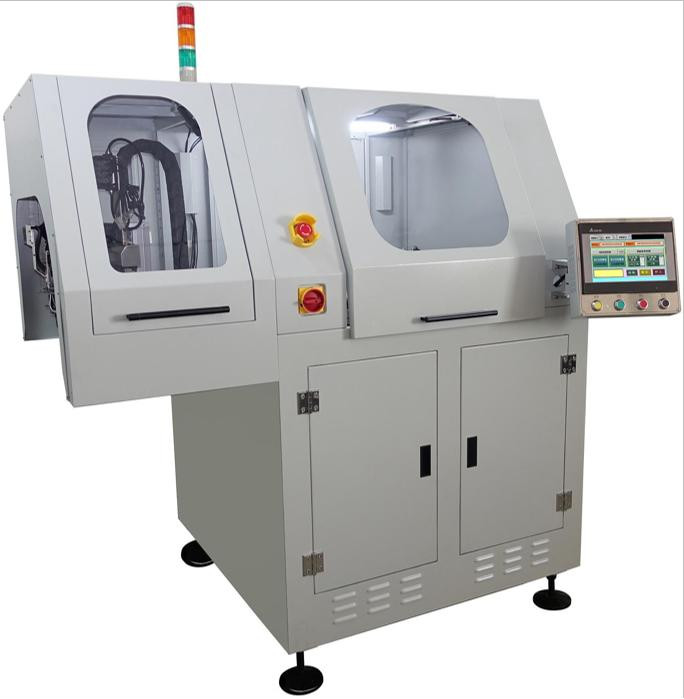

Name: Single Phase Plate Setting Machine Receiving Machine YSSZ620A
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSSZ620A
Price: 9000 USD
Availability: InStock

Product Details

Place of Origin: JiangSu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSSZ620A

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 9000

Packaging Details: Plywooden case

Delivery Time: 3 days

Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability: 300 sets/ month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                Single Phase Plate Setting Machine, 0.6MPA  Plate Setting Machine


Take-and-drop Efficiency:	12-15 Seconds /4 Small Pcs	Power Supply Specification:	AC220V 50/60 Hz Single Phase
Compressed Air:	0.6MPA (with Filter Included)	Overall Dimension:	About 1500(W)1475(D)1800(H)mm
Power:	3.2 KW

Take-and-drop Efficiency:	12-15 Seconds /4 Small Pcs
Power Supply Specification:	AC220V 50/60 Hz Single Phase
Compressed Air:	0.6MPA (with Filter Included)
Overall Dimension:	About 1500(W)1475(D)1800(H)mm
Power:	3.2 KW

Single Phase Plate Setting Machine Receiving Machine YSSZ620A

Product introduction

1. Connect with the online plate distributor or other equipment, load the divided PCB into the Tray by means of servo load shifting and grasping.

2. Suitable for Tray of different sizes; With empty Tray automatic supply, full Tray automatic collection stack function.

3. Suitable for Tray of different sizes and heights; Tray stack height 400mm.

4. The whole machine adopts microcomputer control, LCD operation interface; Can store more than 10 kinds of operation program.

5. All the grasping mechanism adopts servomotor module to realize long stroke and smooth load shifting.

6. Stepper brake motor control of pallet load shifting mechanism; Tray width can be adjusted, equipped with tray correction function.

7. Four groups of adsorption units are configured on the module of taking the plate; Each group of units vacuum independent control and detection, non-interference.

8. Each group of adsorption units can rotate 0-180° according to product and placement requirements.

Machine Application

Product outline size drawing

Product performance characteristics

Lift and shift module Vacuum suction plate module

Tray automatic change module Tray lifting platform

Applicable product specification

Device name	Tray Plate Receiver
Suitable for maximum size of subboard	350*300mm
Suitable for Tray size	180250mm(min) ~ 450350mm(max)
Tray stack height	400mm
Tray is carried	Manual labor
Take-up direction	Left-right/right-left
Feeding and discharging method	Vacuum sucker adsorption transfer load
Number of feeding sucker modules	4 groups (independent control)
Feeding and discharging control mode	X/Y/Z/R axis servo motor control
Tray lifting and shifting mode	Stepper motor (brake)
Load moving speed (maximum)	800mm/min
Load shifting repetition accuracy	The 0.05 mm
Take-and-drop efficiency	12-15 seconds /4 small pcs
PCB mobile function	Translation, rotation 90 degrees, rotation 180 degrees
Control system	Microcomputer (PLC) /PC
Operating interface	Touch Chinese interface
Power supply specification	AC220V 50/60 Hz single phase
Compressed air	0.6MPA (with filter included)
Overall dimension	About 1500(W)1475(D)1800(H)mm
weight	450Kg
power	3.2 KW
