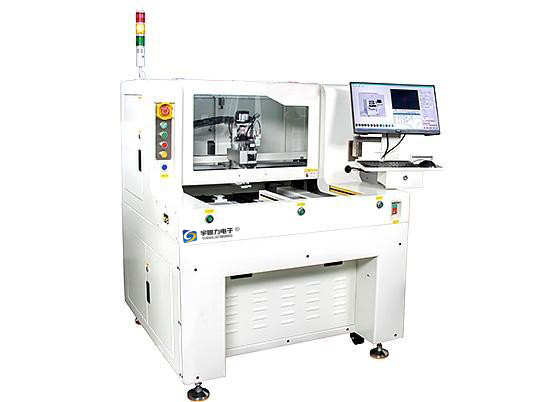

Upper Vacuum Function Pcb Router Machine YSL-880F 290mmx350mm
Basic parameter Specifications:
1. Single side working size: 290mm X 350mm
2. Four-axis servo drive: X, Y1, Y2, Z
3. X-Y AC Servo speed: 0-1000mm/sec
4. Z AC Servo speed: 0-800mm/sec
5.X-Y repetition accuracy: ±0.01mm
6. Cutting accuracy: ±0.02mm
7. CCD camera calibration accuracy: ±0.01mm
8. Plate stress value: 300uε below
9. NSK spindle speed: Max.60,000rpm
10. Tool diameter: 0.8-2.3mm
11. PCB board cutting thickness: 0.2mm-6.0mm
12. Dust collector power: 2HP (upper vacuum)
13. Dust collection cabinet size: 640mm×785mm×1760mm(D×W×H)
14. Machine size: 1075mm×1430mm×1460mm(D×W×H)
15. Weight of main engine + dust collector: 800 KG
Two. Describes the device configuration
On the dust features: milling cutter board machine is also called curve board machine, using electrostatic brush seal cutting point. Independent for single cut point vacuuming. Greatly improve the effect of vacuuming.
The PCB taking and placing area of double Y axis table of milling cutter board splitter is equipped with grating safety facilities to avoid manual misoperation and meet the public safety requirements.
Windows OPERATION INTERFACE friendly switching between Chinese AND English, ILLUSTRATED Windows operation interface, editing program is simple, can quickly complete multi-point programs.
Software users manage permissions at multiple levels to prevent misoperations.
Software sets milling cutter segmentation function, automatic cutting compensation, prolong the service life of milling cutter, reduce the cost.
