Product Details
Place of Origin: JiangSu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

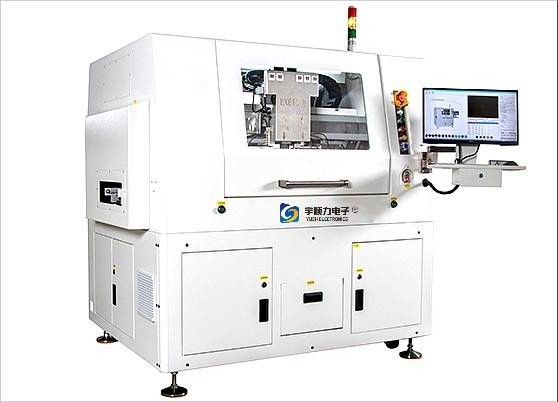

Model Number: YSL-910LAT
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 1000
Packaging Details: Plywooden case
Delivery Time: 3 days
Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability: 300 sets/ month
X-y Repetition Accuracy: |
±0.01mm |
XYZ Drive Mode: |
Ac Servo Motor |
Cutting Accuracy: |
±0.02mm |
Working Range Of Sub-plate: |
300mmx350mm |
Number Of Movement Axes: |
9 Axes |
Power Consumption: |
3.5kva |
X-y Repetition Accuracy: |
±0.01mm |
XYZ Drive Mode: |
Ac Servo Motor |
Cutting Accuracy: |
±0.02mm |
Working Range Of Sub-plate: |
300mmx350mm |
Number Of Movement Axes: |
9 Axes |
Power Consumption: |
3.5kva |
One. Basic Parameters and Specifications:
1. Working range of sub-plate: 300mmx350mm
2. XYZ drive mode: ac servo motor
3. Number of movement axes: 9 axes
4. Program teaching mode: color ccd image intuitive teaching input
5. Operation interface: win7 window operation interface
6. Upper vacuum power: 5hp, lower dust collector power: 3hp (option 5hp)
7. Cutting spindle sycotec (Germany) : max80000rpm (automatic tool change)
8. X-y ac servo speed: 0-1000mm/sec ; z ac servo speed: 0-800mm/sec
10. X-y repetition accuracy: ±0.01mm
11. Cutting accuracy: ±0.02mm
12. Ccd camera calibration accuracy: ±0.01mm
13. Plate stress value: 300uε below
14.Tool diameter: 0.8-2.3mm
15. Pcb board cutting thickness: 0.2mm-6.0mm
16. Main engine and dust collecting mechanical and electrical pressure: 220v 1φ and 3φ
17. Power consumption: 3.5kva
18. Static elimination gun
19. Vision system: high resolution digital camera
20. Drive motor: AC brushless servo motor
21. Mechanical fetching and releasing arm: anti-static vacuum suction nozzle
22. Feeding mode: rail transportation
23. Discharging mode: belt conveying or vehicle output or rail conveying
24. Load shifting mode: vacuum suction nozzle adsorption load shifting
25. Flow direction: left → right
26. Program backup: usb interface
27. Control mode: special controller
28 Dust collection cabinet size: 640mm×785mm×1760mm(d×w×h)
29. Machine size: 2014mm×1230mm×1650mm(d×w×h)
30. Weight of main engine + dust collector: 1000 kg
Two.Introduction to device configuration
1.Double work table structure
Adopt double slide rail and cylinder double platform operation. It can cut different types of products at the same time, and greatly reduce the waiting time of taking and putting plates. At the same time, it can change the double platform to a large single platform, increase the working size, and greatly improve the flexibility of equipment.
2. Under the vacuum spindle structure
a.YSL-910LAT double spindle on-line milling cutter board spliter adopts high speed imported spindle to cut board, greatly reduce the cutting stress, high precision, small inertia, fast response.
b.Milling cutter detection system, real-time monitoring milling cutter state, effectively prevent the phenomenon of continuing to run after cutting.
c.A new vision system, uniform ring light source, with brightness adjustment function, make each type of Mark point better recognition, suitable for such as tin plating, copper plating, gold plating, tin spraying, and various types of different color PCB. The whole system is equipped with visual counterpoint compensation function.
3.Under vacuum structure
Funnel seal design, suction inlet adopts 45 degrees bevel Angle, reduce dust in the internal vortex phenomenon.
4.CNC special controller
The independent CNC special controller integrates the control part, the loop control has strong stability, high precision, fast response transmission and strong anti-interference
5.Collector
