Product Details
Place of Origin: JiangSu
Brand Name: YUSH
Certification: CE Mark
Model Number: YSL-708AHSE
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: business negotiation
Packaging Details: wooden package
Delivery Time: 3 days to 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25 Set/Sets per Month
Heating Length: |
2950mm |
Cooling Type: |
Double Cooling :enforced Air Cooling/water Cooling(optional:three Cooling Zones) |
Inlet Heigh: |
900±20mm |
Total Power: |
57KW |
Start Up Power: |
30KW |
Feature: |
High Heat Energy |
Heating Length: |
2950mm |
Cooling Type: |
Double Cooling :enforced Air Cooling/water Cooling(optional:three Cooling Zones) |
Inlet Heigh: |
900±20mm |
Total Power: |
57KW |
Start Up Power: |
30KW |
Feature: |
High Heat Energy |
| SE series reflow oven main specifications | ||||||||||
| Model No | YSL-708AHSE | YSL-708HSE | YSL-708NHSE | YSL-710AHSE | YSL-710HSE | YSL-710NHSE | YSL-712AHSE | YSL-712HSE | YSL-712NHSE | YSL-706AHSE |
| Heating System | ||||||||||
| Heating Zone | 8 heating zones, 16 heating modules | 10 heating zones, 20 heating modules | 12 heating zones, 24 heating modules | 6 heating zones, 12 heating modules | ||||||
| Heating Length | 2950mm | 3670mm | 4350mm | 2230mm | ||||||
| Cooling Type | Double cooling:enforced air cooling/water cooling(Optional:three cooling zones) | Double cooling:forced air cooling | ||||||||
| Outlet Exhaust Diameter valume | 2-145,Exhaust demand 15m³/min*2 | |||||||||
| Conveyor System | ||||||||||
| Product width | Min50mm-Max400mm | |||||||||
| Conveying Direction | L→R,R→L | |||||||||
| Inlet Height | 900±20mm | |||||||||
| Fixed Rail Side | Front rail Fixed (Option:Rear Rail Fixed) | |||||||||
| Conveyor Type | Chain+mesh belt synchronous transmission | |||||||||
| Cmponent Height | Clearance based on the rail:above 30mm,below 20mm | |||||||||
| Conveying speed | 300mm-1500mm/min | |||||||||
| Control System | ||||||||||
| Power Supply | AC3 5W 380V 50/60Hz | |||||||||
| Total Power | 57KW | 71KW | 89KW | 45KW | ||||||
| Start Up Power | 30KW | 35KW | 40KW | 30KW | ||||||
| Running Power | 7.5KW | 9.5KW | 11.5KW | 6KW | ||||||
| Temperature Range | Room temperature to 320℃ | |||||||||
| Control type | PC+PLC Control system | |||||||||
| Rail Width Adjusting Mode | Electric+Manual | |||||||||
| Temp Control accuracy | ±1℃ | |||||||||
| PCB Temp Deviation | ±1℃ | |||||||||
| Data Storage | Process Data and status stotage | |||||||||
| Power Outage Protection | Equipped UPS | |||||||||
| Operation interface | Windows Chinese simplified,English online free switching | |||||||||
| General | ||||||||||

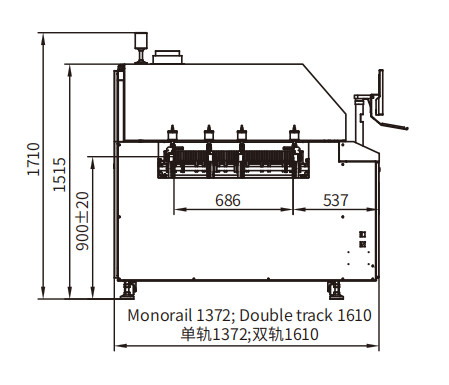

| Dimension(L*W*H) | 5055*1372*1515mm | 5775*1372*1515mm | 6495*1372*1515mm | 4335*1372*1515mm | ||||||
| Weight | 2000-2200KG | 2400-2600KG | 2800-3000KG | 1600-1800KG | ||||||
| Color | Bright wrinkled white | |||||||||
