Product Details
Place of Origin: China
Brand Name: YUSH
Model Number: YSL-200P
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD11000-12000
Packaging Details: plywooden case
Delivery Time: 6-7Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50Sets/Month
Net Size (L*W*H): |
530*500*1030mm |
Power Cord Length: |
7m |
Applicable Working Conditions: |
Robot Welding, Automation Equipment, Automatic Assembly Line, PCB, Precision Laser Engraving, Precision Laser Cutting And Other Supporting Vacuuming |
Filtration Accuracy: |
0.3μm |
Machine Body: |
Made Of 2.0 Thick Sheet Metal |
Filtration Area: |
2.16m² |
Net Size (L*W*H): |
530*500*1030mm |
Power Cord Length: |
7m |
Applicable Working Conditions: |
Robot Welding, Automation Equipment, Automatic Assembly Line, PCB, Precision Laser Engraving, Precision Laser Cutting And Other Supporting Vacuuming |
Filtration Accuracy: |
0.3μm |
Machine Body: |
Made Of 2.0 Thick Sheet Metal |
Filtration Area: |
2.16m² |

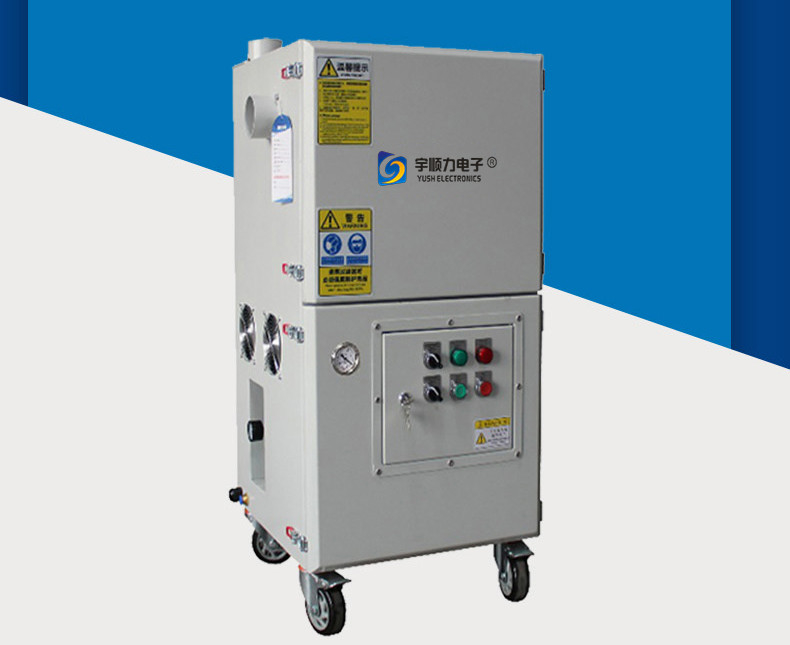

Three-phase electric industrial vacuum cleaner
Applicable working conditions
Robot welding, automation equipment, automatic assembly line, PCB, precision laser engraving, precision laser cutting and other supporting vacuuming.
Feature of product
1. Linkage interface design, which can be linked with supporting equipment.
2. It can work continuously for 24 hours.
3. The product has phase sequence and thermal overload protection functions.
4. Schneider brand electrical appliances, with the characteristics of safety and stability.
5. Equipped with 2 PTFE-coated high-efficiency filters as standard, with a filtration area of 2.16m² and a filtration accuracy of 0.3μm.
6. Pulse cleaning, automatic pulse cleaning filter time can be set according to requirements.
7. The pull-out large-capacity dust-collecting drawer is convenient for dumping garbage.
8. The machine body is made of 2.0 thick sheet metal, and after spraying and high temperature baking, the paint will not fall off and rust.
9. With brake universal wheel, it is convenient for the machine to move.
| Product parameters | Unit | YSL-200P | YSL-300P |
| power | Kw | 2.2 | 3 |
| Voltage | V-Hz | 380-50/60 | 380-50/60 |
| capacity | L | 15 | 15 |
| total filter area | c㎡ | 21600 | 21600 |
| Filtration accuracy | μm | 0.3 | 0.3 |
| number of filters | PC | 2 | 2 |
| air flow volume | m³/h | 320 | 320 |
| vacuum suction | mbar | 190 | 260 |
| noise | dB | 66 | 67 |
| Suction diameter | mm | 40/50 | 40/50 |
| Power cord length | m | 7 | 7 |
| Net size (L*W*H) | mm | 530*500*1030 | 530*500*1030 |
| Filter cleaning method | - | Pulse cleaning | |
sobbing dust drawer cooling fan
Water separator 2 filters area 2.16㎡
Schneider Electric Control panel/negative pressure gauge
1. Remote control terminal
Step 1 Insert the remote control terminal plug into the remote control terminal socket
2. Power indicator panel
The second step is to turn on the power switch and the local/remote switch
3. Remote control switch
Step 3 After the installation of the remote control switch is completed, turn on the switch, that is, the switch signal contacts, and the machine can be turned on remotely.
