Safety Depanelization Of PCB Separation , Metal Cutting Machine

Product Details

Place of Origin: JiangSu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSVC-3

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 9800-18000 USD

Packaging Details: Plywooden case

Delivery Time: 3 days

Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability: 300 sets/ month

Get Best Price
Highlight:

laser pcb depaneling

,

v scoring machine

Safety Depanelization Of PCB Separation , Metal Cutting Machine



Safety Depanelization Of PCB Separation , Metal Cutting Machine



PCB Separator Machine Specification:



1. Motorized Linear Blade Depanelizer ( YSVC-3)



2. Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors



3. Operator foolproof! Panels cannot be inserted into the knives except on the score line



4. Pneumatically driven



5. Handles high components up to 1"



6. Bow waves that can occur with round knives are avoided



7. Easy adjusting of distance between knives

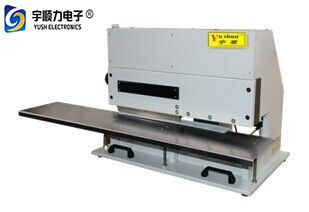

Safety Depanelization Of PCB Separation , Metal Cutting Machine 0



PCB Separator Machine Specifications:



Model: YSVC-3
The Longest Minimize: unlimted
Size: 780mmx500mmx620mm
Minimize Thickness: 0.3-3.5mm
Working Area:

330*220mm

Machine Weight:

185Kg



V-CUT PCB Separator Machine .



1. Max. PCB depaneling length is unlimted



2. Depaneling PCB without bending and tension stress



3. Safety use, easy operation



4. Depaneling process without vibrations



PCB Separator Machine Features:



1. The machine was designed to depanel pre-scored PCB carefully, without bending and tension stress.



2. Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling

process, or thin board even to 0.3mm can be worked safely.



3. Depaneling process without vibrations



4. PCB depaneling control method is by pneumatic-driven and electromagnetic valve



5. PCB control operation is that operator stamps the foot pedal to depanel PCB



6. Highest components near the v groove of PCB can be up to 50mm



7. Gap for insertion of PCB can be easy to adjust



PCB Separator Machine Scope of application :



1. Cut any length metal board more safety and easily.



2. Separates long boards directly,without turn direction .



3. Separates boards up to 2.0mm thick Metal Board



4. Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors



5. Operator foolproof! Panels cannot be inserted into the knives except on the score line



6. Handles high components up to50mm



7. Bow waves that can occur with round knives are avoided



8. Easy adjusting of distance between knives
