Product Details
Brand Name: YUSHLI
Model Number: YSLHG-640/960/1080/1280/1390/1480/1680/1610/1810
Payment & Shipping Terms
Name: |

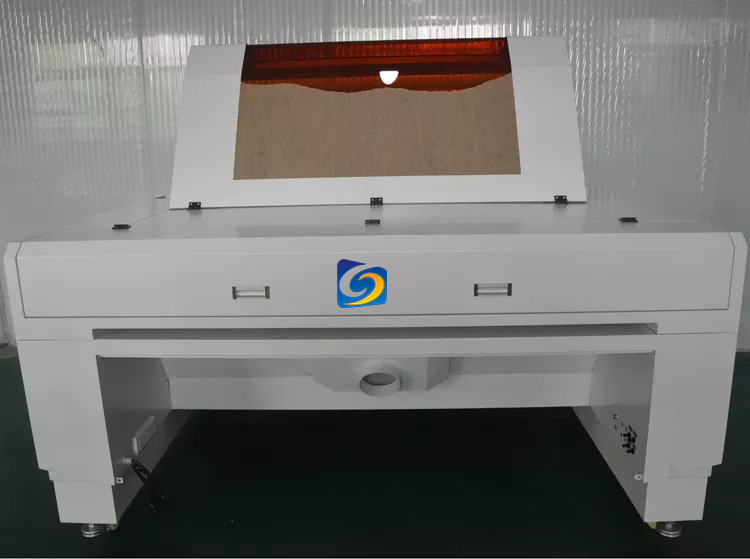

CO2 Laser Engraving Cutting Machine |
Laser Power: |
60W - 260W |
Name: |
CO2 Laser Engraving Cutting Machine |
Laser Power: |
60W - 260W |
|
激光类型
|
Laser type
|
CO2 laser tube
|
|
激光功率
|
Laser power
|
60W/80W/100W/120W/150W/260W
|
|
机器型号
|
Model of machine
|
YSLHG-640/960/1080/1280/1390/1480/1680/1610/1810
|
|
雕刻面积
|
Engraving area
|
600×400/900×600/1000×800/1200×800/1300×900/1400×800/1600×800/1600×1000(mm)
|
|
雕刻速度
|
Engraving speed
|
0-800mm/s
|
|
切割速度
|
Cutting speed
|
0-400mm/s
|
|
重复精度
|
Repeating precision
|
±0.05mm
|
|
运动系统
|
Moving system
|
Offline stepping control system
|
|
冷却方式
|
Cooling mode
|
Water cooling and protection system
|
|
整机功率
|
Gross power
|
≤2250W
|
|
工作电压
|
Working voltage
|
AC220V±10% 50Hz(60Hz)Custom made
|
|
工作温度
|
Operating temperature
|
0℃-45℃
|
|
工作湿度
|
Operating humidity
|
5%-95%
|
|
控制软件
|
Controlling software
|
YUSHLI
|
|
支持格式
|
Supported format
|
DXF,BMP,JPG,PNG,TIF PCX,TAG,LOO,GIF,PLT.AI
|
|
工作台
|
Workbench
|
Cellular/ Grid/the blade
|
|
整机重量
|
Gross weight
|
170kg/200kg/230kg/270kg/290kg/320kg/340kg/360kg/400kg
|
|
外形尺寸
|
Dimension
|
1510×1105×1100/1820×1320×1100/1920×1420×1100/2020×1320×1100/2220×1520×1100(mm)
|
