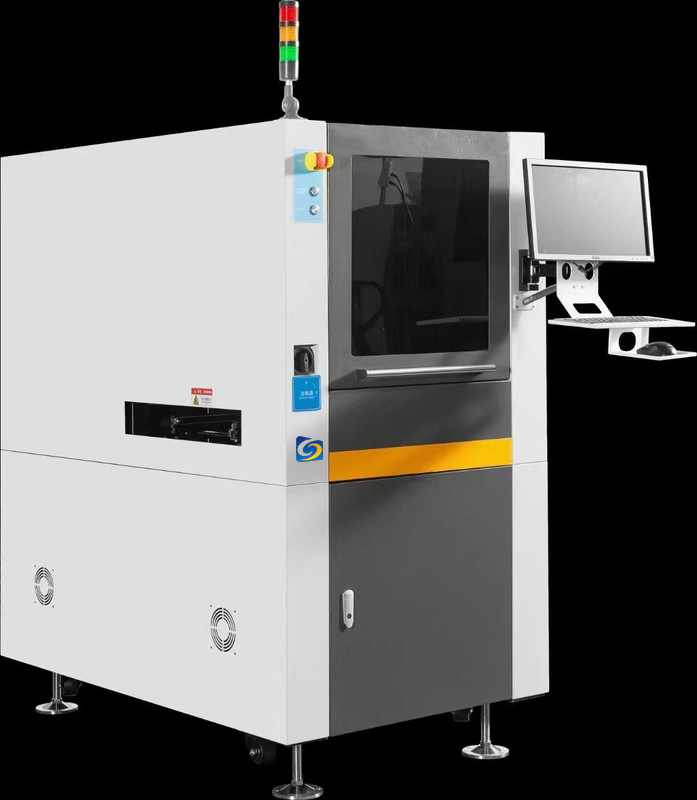

Automatic Inkjet Printer Can Realize The Surface Of PCB,FPC, Metal, Ceramic, Plastic, Rubber And Other Products
YSL-PM series continuous full-automatic inkjet printer adopts high-temperature environmental protection and quick drying ink The ink spots are attached to the surface of products and dry instantly.It can realize the surface of PCB,FPC, metal, ceramic, plastic, rubber and other products, and print the required identification information, so as to realize the purpose of industrial traceability.
Inkjet printing system can interact with IMS,MES, ERP and other production management system data to realize variable information inkjet printing, which can be read and sent back to the management system
SMT online production,reduce manpower input can also be equipped with the upper and lower board machine, realize offline production.
Product features:
It can be re printed after wiping
With spray printing information,solvent erasure and re spray printing
After baking at high temperature,the spray printing information is solidified and cannot be erased.
Adhere to the surface, no damage to the product
Ink jet printing ink spots attached to the surface of the product,no damage to the product
It can be spray printed on PCB/FPC network line without quality risk
Quick drying of ink, environmental protection
The ink can be sprayed and dried without baking. High
temperature resistance,anti friction,anti alcohol, environmental protection In the production process, there is no smoke residue on the product.
Ultra low cost of consumables,only1/8 of the label.
Industry 4.0, MES system interaction
Print information and download from MES system in real time.
After spraying the information will be read automatically and uploaded to MES system, and the information can be traced back to prevent stupidity.
Real time upload device operation data, remote management.
Easy to use ink jet control system
A simple and easy to use information generation system for jet printing
Teaching visual programming, easy to use
Spray printing information detection, to ensure no outflow of defective products.
The jetting dock can be cleaned automatically without clogging the nozzle, and can operate continuously and stably.
High reliability and stability
The equipment frame is welded as a whole and the gantry is processed to ensure high rigidity and stability Qualitative long life.
The components are of first-line brands.
Application cases:
Product selection:
| Equipment model | YSL-450A | YSL-750A | YSL-450B | YSL-750B |
| series | Standard type | Enhanced | ||
| Equipment size (L*w*H) | 880*1430*1600mm | 1200*1450*1600mm | 880*1430*1600mm | 1200*1450*1600mm |
| Jet printing area(L*W) | 450*450mm | 700*500mm | 450*450mm | 700*500mm |
| PCB size(L*W) | 50*50mm-600*50omm | 50*50mm-900*500mm | 50*50mm-600*500mm | 50*50mm-900*500mm |
| Direction of plate entry | L→R,R-L, L-L,R→R manual switching | L→R,R-L,L-L, R→R automatic switching | ||
| Duplex function | Optional | Read the bar code information on the | ||
| back,copy and print to the front | ||||
| Printing accuracy | ±0.1mm | ±0.05mm | ||
| MES Online | Select MES online function | The spray printing information is | ||
| downloaded from MES,read after spraying | ||||
| and uploaded to MEL | ||||
| Types of printable characters | 5*7,7*6,9*6,11 6,16*12,24*16, user-defined text and picture | |||
| One dimensional ink jet code | Code128,Code128A,Code128B,2/5,39 | |||
| Jet printing two dimensional code | Data Matrix,OR,PDF417 | |||
| Ink jet minimum two dimensional code | 2*2mm | |||
| Printing color can be selected | Black,White and yellow | |||
| Jet printing resolution | 80dpi, 15dpi and 150dpi are available | |||
| production efficiency | 1s/pen + 6S in and out time | |||
| Print height adjustment | 3-15mm adjustable | |||
| Double side jet printing | Equipped with bit-in flap function to | |||
| realize double-sided spray printing. | ||||
| Applicable products | thickness:0.2-8mm; tolerance of war page: | |||
| ± 1mm; upper space:≤ 5mm; weight:≤ 3kg | ||||
| Printing angle | 0-360° | |||
| Width adjustment of track slab | Automatic adjustment | |||
| Anti duplication function | 365 day automatic repeat code detection | |||
| Visual teaching programming | Through the visual guidance,set the position | |||
| of spray printing information. | ||||
| Bar code checking function | After spray printing, the position of bar | |||
| code is checked by CCD and the bar code is read | ||||
| Mark visual correction function | The mark of product is identified by CCD ,and | |||
| the position of spray printing is compensated | ||||
| to ensure the position accuracy | ||||
| Special mark point vision function | Support abnormal mark recognition,white background | |||
| recognition, automatic compensation function. | ||||
| Log query function | The system has its own database and supports | |||
| printing log query. | ||||
| Printing information generation function | The system has its own printing information | |||
| generation function, which supports non-standard | ||||
| format of date,stream code and shit. | ||||
| online function | Support SMEMA communication interface, | |||
| realize online application | ||||
| Equipment weight | 800KG | |||
| Power supply specification | 220V 50/60HZ 2KVA | |||
| Pressure source demand | ≥0.4MPa | |||
