Name: |
Online Laser Marking Machine |
Power Supply: |
220V |
Name: |
Online Laser Marking Machine |
Power Supply: |
220V |
on-line laser marking machine can be equipped with purple light green light CO2, optical fiber and other lasers, Through

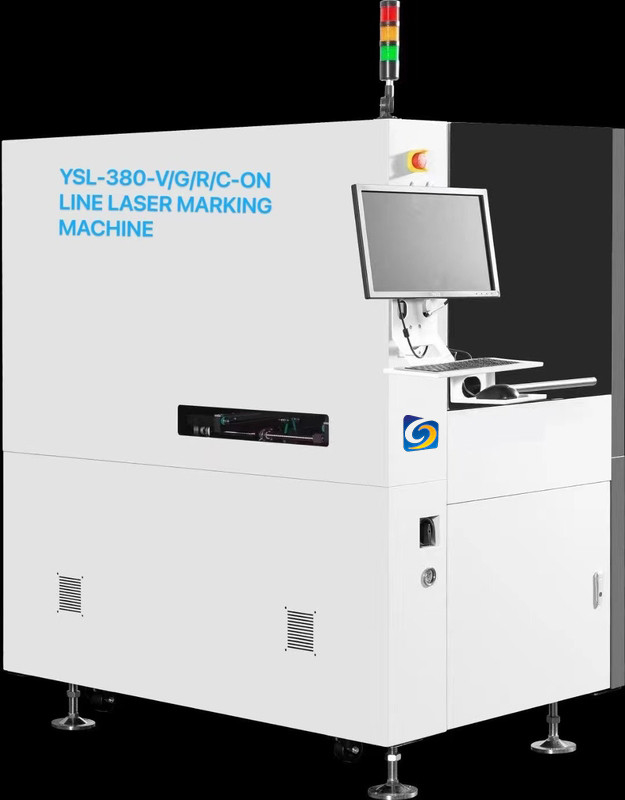

YSL-LD series on-line laser marking machine can be equipped with purple light green light CO2, optical fiber and other lasers, Through the multi-functional modules such as visual system, motion control system, information management system, it can realize the current PCB,FPC, metal,ceramics, plastics, rubber and other product surfaces, and print the required identification information to realize the purpose of industrial traceability identification
SMT can be produced online to reduce human input and can also be equipped with up and down board machines to realize offline production
Product features
It can be re printed after wiping
With spray printing information, solvent erasure and re spray printing.
After baking at high temperature, the spray printing information is solidified and cannot be erased.
Industry 4.0, MES system interaction
Pint information and download from MES system in real time.
After spraying, the information will be read automatically and uploaded to MES system, and the information can be traced back to prevent stupidity. Real time upload device operation data, remote management.
High precision and high efficiency
It can realize the marking of 0.04mm line width.
Ultra small two-dimensional code identification processing High speed, it takes only 0.3 seconds to print a code.
Easy to use ink jet control system
A simple and easy to use information generation system for jet printing
Teaching visual programming, easy to use
Spray printing information detection, to ensure no outflow of defective products
The jetting dock can be cleaned automatically without clogging the nozzle, and can operate continuously and stably
Ultra low cost
The marking efficiency is fast and can be completed at one time with low energy consumption,It can be finished immediately without additional process and manpower saving.Wide applicability, can print a variety of metal and nonmetal materials,reduce the investment of repeated equipment.
High reliability and stability
The equipment frame is welded as a whole and the gantry is processed to ensure high rigidity and stability Qualitative, long life.
The components are of first-line brands.
Application cases
Product selection:
| Equipment model | YSL-380-380-V/G/R/C | YSL-380-450-V/G/R/C | ||
| Laser type | -v:Purple light(355nm) | -v:Purple light(355nm) | -R:Infrared(1064nm) | -C:C02(10600nm) |
| Laser power | 3w/5w/10w | 3W/5W/10W | 10W/20W/30W | 5W/10W |
| Scanning mode | Galvanometer scanning | |||
| Laser spot diameter | 0.01mm | 0.015mm | 0.02mm | 0.1mm |
| Equipment size (L*w*H) | 850*1500*1600mm | 950*1500*1600mm | ||
| printing area(L*W) | 380*250mm | 450*400mm | ||
| PCB size(L*W) | 500*250mm | 600*400mm | ||
| Direction of plate entry | L→R,R-L, L-L,R→R are optional | |||
| Duplex function | Optional | |||
| Repeat positioning accuracy | 0.025mm | |||
| MES Online | Select MES online function(download the printing information MES,read and upload it to MES after printing) | |||
| Types of printable characters | English uppercase,English lowercase,numbers,Chinese characters,symbols, user-defined text and pictures | |||
| One dimensional ink jet code | Code128,Code128A,Code128B,Code2/5,Code39 | |||
| Jet printing two dimensional code | Data Matrix,OR,PDF417,mini QR,IQR | |||
| Ink jet minimum two dimensional code | 1*1mm | |||
| Compatible products | Thickness:0.2-8mm; tolerance of war page: ± 1mm;edge:≥4mm；Weight:≤3Kg | |||
| Super upper and lower space | ≤30mm | |||
| Width adjustment of track slab | Automatic adjustment | |||
| Anti duplication function | 365 day automatic repeat code detection | |||
| Visual teaching programming | Through the visual guidance,teaching set the location of printing information | |||
| Bar code checking function | After printing, the position of bar code is checked by CCD and the bar code is read | |||
| Mark visual correction function | The mark of product is identified by CCD ,and the printing position is compensated to ensure the accuracy of the printing position | |||
| Special mark point vision function | Support abnormal mark recognition,white background recognition, automatic compensation function. | |||
| Log query function | The system has its own database and supports printing log query. | |||
| Printing information generation function | The system has the function of printing information generation ,and supports non- standard | |||
| SMEMA online function | It Support SMEMA communication interface, realize online application,and can work offline with upper and lower board computers. | |||
| Equipment weight | 800KG | |||
| Power supply specification | 220V 50/60HZ 2KVA | |||
| Pressure source demand | ≥0.4MPa | |||
