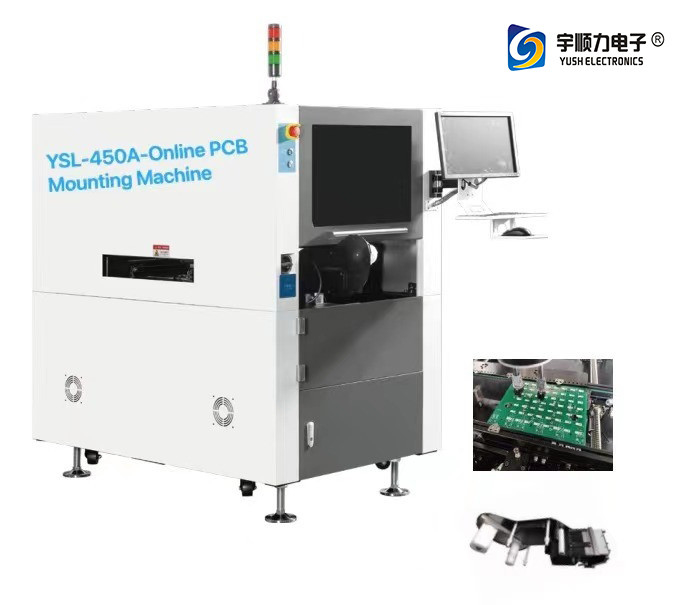

YSL-T series online mounting machine is to automatically absorb the material output by vacuum suction nozzle installed on the manipulator, Through the up and down visual alignment system. the material are attached to the product at high speed and precision.It can be used to label PET film, wheat pull tape, foam, shield cover and other materials that can be absorbed
SMT can be produced online to reduce human input, and can also be equipped with up and down board machines to realize offline production.
product features
Strong versatility,one machine for multiple purposes
It can attach label pet shield cover and other materials at the same time,one machine is multi-purpose and universal.
It can be attached with PCB.FPC, product label and many other application scenarios
Industry 4.0, MES system interaction
Print information and download from MES system in real time.
After spraying, the information will be read automatically and uploaded to MES system, and the information can be traced back to prevent stupidity. Real time upload device operation data, remote management.
No need to modify the process, fast import
For the application of labeling, there is no need to modify the current product process, rapid equipment import
Saying manpower.
The suction nozzle can be removed quickly.
Easy to use control system of mounting machine
Simple teaching visual programming system,simple and easy to use, fast line change.
Label information is automatically inspected to ensure that no defective products are outflow.
A variety of feeders are available
The intelligent feeder can automatically peel off roll label, pet, foam,blue film and other materials supporting single row and multi column typesetting
Plug gable feeder, can be prepared outside the line, fast line.
Support disc, ribbon and sheet feeder
High reliability and stability
The equipment frame is welded as a whole and the gantry is processed to ensure high rigidity and stability
Qualitative, long life.
The components are of first-line brands
Application cases:
Product selection
| Equipment model | YSL-45OA | YSL-750A |
| Equipment size ( W*H) | 950*1400*1450mm | 1200*1450*1450mm |
| Jet printing area (L*W) | 450*450mm | 700*500mm |
| CB size( L*W) | 50*50mm-60o*500mm | 50*50mm-900*500mm |
| Dimension of mounable material | Min:3*2mm Max:100*60mm | |
| Mounting efficiency | 1.1-2S/PCS | |
| Number or mounting heads | 2-6 options | |
| Number of feeders | 1-4 options | |
| MES Online | Bar code reading and uploading to MES | |
| Attachable materials | Label, pet, blue film, steel sheet, Mylar, shielding cover, film button, foam and other absorbable materials | |
| Direction of plate entry | L→ R,R→L,I→L,R→R are optional | |
| positioning accuracy | 0.02mm | |
| Mounting accuracy | ± 0.1 mm (upper and lower double vision position deviation correction) | |
| Mounting angle | 360° arbitrary setting. | |
| Mounting pressure | 0.2-2kg adjustable | |
| PCB weight | ≤3kg | |
| Double side jet printing | Equipped with built-in flap function to realize double-sided spray printing | |
| Product thickness | 0.4-20mm | |
| Streamline track | The two-stage belt track can automatically adjust the width to prevent the side clamp lifting mechanism from positioning the product | |
| Visual teaching programming | Through visual guidance, the placement position is set. | |
| Bar code checking function | The position of bar code is checked by CCD and the bar code is read. | |
| Mark visual correction function | The product mark is identified by CCD, and the mounting position is compensated to ensure the mounting accuracy. | |
| Special mark point vision function | Support abnormal mark recognition ,white background recognition,automatic compensation function | |
| Log query function | The system has it own database and supports log query. | |
| Label information generation function | The system has its own label information generation function ,which supports non-standard date,stream code and shift format. | |
| SMEMA online function | It supports SMEMA communication interface, realizes online application, and can work offline with upper and lower board computers. | |
| Equipment weight | 800KG | |
| Power supply specification | 220V 50/60HZ 2KVA | |
| Pressure source demand | 0.6MPa | |
