Product Details
Place of Origin: Jiang su,China
Brand Name: YUSHUNLI
Certification: CE
Model Number: YSV-A21
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD1000~3000
Packaging Details: plywooden case
Delivery Time: 5-7work days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability: 200Sets/Month
Model No.:: |
YSV-A21 |
Dimension:: |
950*560*750 Mm |
Transfer Belt:: |
1. 2M |
Cutting Speed:: |
100-1000 Mm / S |
Cutting Thickness:: |
0.1-3.5 Mm |
Voltage:: |
220VAC / 110VAC |
Machine Weight:: |
98 Kg |
Model No.:: |
YSV-A21 |
Dimension:: |
950*560*750 Mm |
Transfer Belt:: |
1. 2M |
Cutting Speed:: |
100-1000 Mm / S |
Cutting Thickness:: |
0.1-3.5 Mm |
Voltage:: |
220VAC / 110VAC |
Machine Weight:: |
98 Kg |

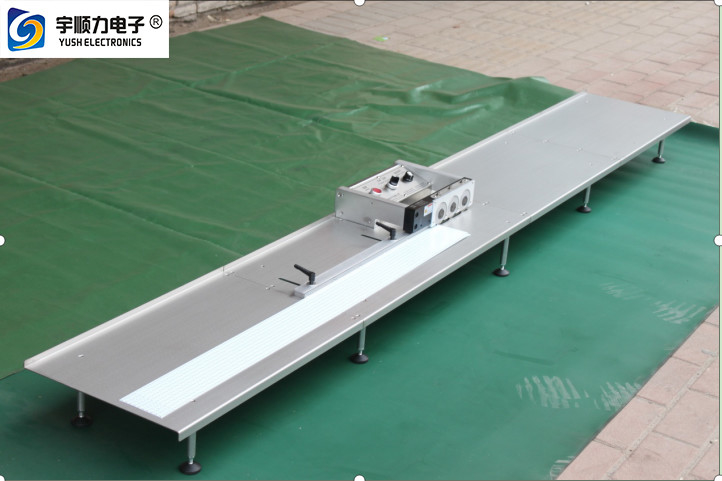

3.5mm thickness Cutting aluminum or copper board use steel blades convient PCB Separator
Specification:
| Model No.: | YSV-2A |
| Machine Dimension: | 960*560*750 mm |
| Transfer Belt: | 1. 2M |
| Material of Blade: | SHK-9 high speed steel |
| Cutting Speed: | 0-1000 mm / s |
| Cutting Thickness: | 0.5-3.5 mm |
| Voltage: | 220VAC / 110VAC |
| Weight: | 92 kg |
Feature:
♦ Max cutting length is 0-460mm/pcb;
♦ cutting blade speed are 2 type: 500mm/s & 300mm/s
♦ operate platform adjusting range from 0 to 50mm
♦ flexible setting design. i.e. micro adjust the upper and lower blade to fit some kinds of thickness of PCB
♦ as per the length of PCB, free setting stop point
Application:
aluminum base boardr ,cutting V-cut PCB, Aluminum PCB, LED strip, fiber panel, etc
For cutting both long and short V cut PCB.V cut/groove PCB
copper substrate, FR4, glass fiber board
LED light bar panel , pcb circuit board
Maintenance:
take off the power botton and clean the machine after finish working
be careful to protect the upper and lower blade
move the blades and protect them with machine oil
check the screw fastening time to time
Delivery:
by air / sea / Fedex / DHL / UPS
our forwarder partner or yours
packing with plywooden case
