SMEMA Compatible Adjustable SMT PCB Loaders And Unloaders

Product Details

Place of Origin: JiangSu,China

Brand Name: YUSHLI

Certification: CE Mark

Model Number: YS-3525

Payment & Shipping Terms

Minimum Order Quantity: 1set/sets

Price: business negotiation

Packaging Details: plywood case

Delivery Time: 5-7work days

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 100set/month

Get Best Price
High Light:

PCB Loaders And Unloaders

,

SMT Loaders And Unloaders

,

Adjustable SMT Loader

Working Voltage:
110-220V
Weight:
220kg
Dimension::
L2220 X W845 XH1250 (mm)
Warranty::
One Year
Product Name:
Automatic PCB Magazine Loader PCB Conveyor
Usage:
PCBA,LED
Working Voltage:
110-220V
Weight:
220kg
Dimension::
L2220 X W845 XH1250 (mm)
Warranty::
One Year
Product Name:
Automatic PCB Magazine Loader PCB Conveyor
Usage:
PCBA,LED
SMEMA Compatible Adjustable SMT PCB Loaders And Unloaders

Assembly Line PCB Magazine Loader Printing machine silkscreen Automatic PCB MagazineTechnique

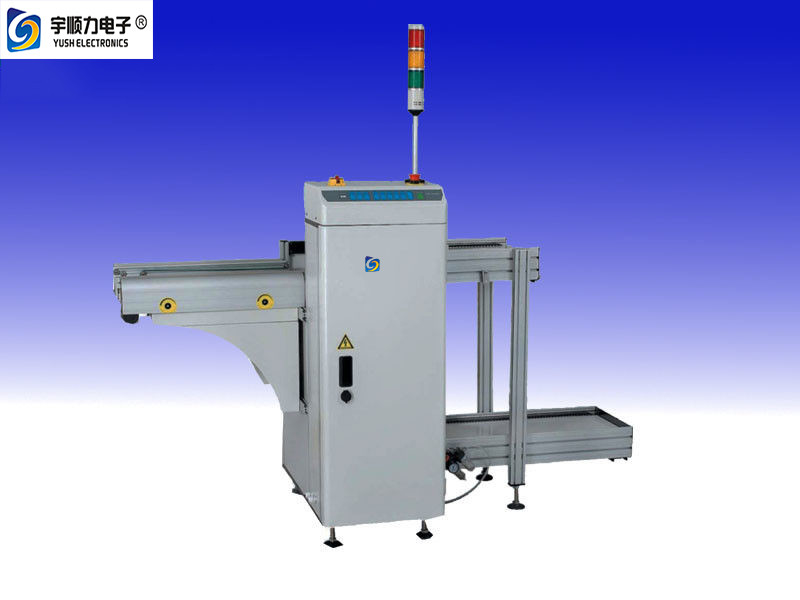

SMEMA Compatible Adjustable SMT PCB Loaders And Unloaders 0



Parameter :



Description Used for loading & unloading PCBS from the Magazine
No. of Magazine Upper Conveyor:1;Lower Conveyor: 2
Time Feed PCB Approx. 6 seconds or Specify
Magazine Change Time Approx. 30 seconds or Specify
Indexing Pitch 10, 20, 30, 40mm or specify
Power Source 220VAC 50/60HZ
Air Pressure & Consume 4-6 bar, 10ltr/min max.
PCB Thickness 0.6mm min.



SMEMA Compatible Adjustable SMT PCB Loaders And Unloaders 1



Feature:


1. The pusher position can be adjust accordingto PCBthickness.


2. Used wear resistant cableto prevent intermittent problem.


3. SMEMA compatible



4. Sturdy and stable Design.


5. In house design control board.


6. User f riendly ‘soft touch’ LED membrane control panel.


           SMEMA Compatible Adjustable SMT PCB Loaders And Unloaders 2









Working Video ;https://www.youtube.com/watch?v=3j9Zh5UyAKY
