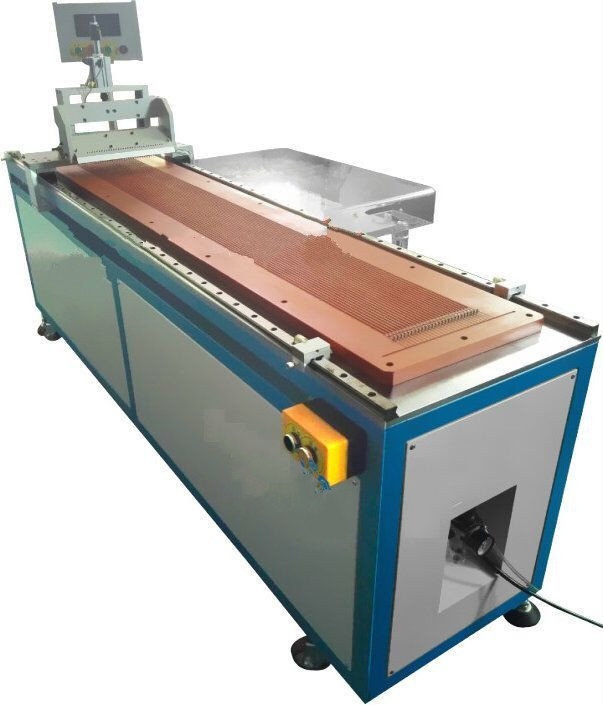

500W LED Strip Depaneling Machine With Anti Dwelling Structure

500W LED Strip Depaneling Machine With Anti Dwelling Structure
500W LED Strip Depaneling Machine With Anti Dwelling Structure 500W LED Strip Depaneling Machine With Anti Dwelling Structure 500W LED Strip Depaneling Machine With Anti Dwelling Structure 500W LED Strip Depaneling Machine With Anti Dwelling Structure 500W LED Strip Depaneling Machine With Anti Dwelling Structure

Large Image :  500W LED Strip Depaneling Machine With Anti Dwelling Structure

Product Details:
Place of Origin: Dongguan,China
Brand Name: YUSHUNLI
Certification: CE
Model Number: PCB separator machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1000~10000
Packaging Details: plywooden case
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200Sets/Month

500W LED Strip Depaneling Machine With Anti Dwelling Structure

Description
Operation Mode: Automatic Operation Board Length: 300~1200 Mm(can Sustom Made)
Plate Accuracy: 0.1mm Working Pressure: 0.6~0.8Mpa
Weight: 200kg Size: 1850*560*1450mm
High Light:

LED Strip Depaneling Machine

,

500W Depaneling Machine

,

Anti Dwelling Structure LED Strip Depanelizer

Automatic Operation 200KG LED 1850*560*1450mm Light Strip Depaneling Machine









Machine specifications:



Dimensions:L1300*W900*H1900
Cutting width : Max 300mm Power: 500W
Blade size: 356*38*6mm (Straight knife)
Working pressure 0.5~0.8Mpa Weight: 450kg
Program programming, automatic feeding and cutting machine.



Features:



Cutting boards Fiberglass board, FR4 board, aluminu

m substrate, copper substrate, etc.

Positioning According to the V cut line positioning, the screen displays the feed data.
1. For the pcb cutting equipment developed by COB light source board, the microcomputer is used to control the automatic feeding board.
2. The efficiency is 5~6 times faster than the traditional board machine.
3. When the cutting is performed, the micro stress of the components is about 200, to avoid tin cracking and prevent damage of precision parts.
4, gas hybrid design, double straight knife depaneling, especially suitable for dividing precision PCB board
5. Scythe work, suitable for various thickness MCPCB, the cutting stroke is below 2mm.
6, anti-dwelling structure design, there is no operational safety concerns.



500W LED Strip Depaneling Machine With Anti Dwelling Structure 0

500W LED Strip Depaneling Machine With Anti Dwelling Structure 1



500W LED Strip Depaneling Machine With Anti Dwelling Structure 2
