Product Details
Place of Origin: China Dongguan
Brand Name: YUSHUNLI
Certification: CE ISO
Model Number: YSVC-1200
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD1000~40000
Packaging Details: plywooden case
Delivery Time: 10-15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80Sets/Month
Name: |

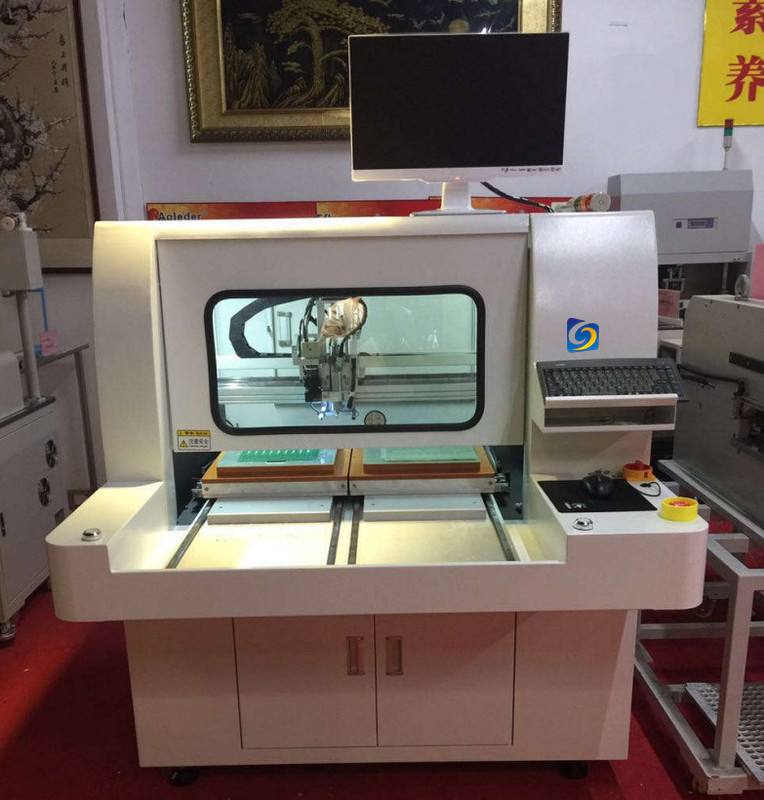

4-Axis Dual Station PCB Routing Machine |
Warranty: |
1 Year |
Condition: |
New |
Spindle Motor Speed: |
60000rpm/min |
Dimensions(W*D*H): |
1220mm*1450mm*1420mm |
Weight: |
550KG |
Positioning Repeatability: |
0.001mm |
PCB Size (max): |
322mm*322mm |
PCB Thick (max): |
5mm |
Power: |
400W |
Cutting Speed(max.): |
100mm/s |
Axis Precision: |
0.001mm |
Cutting Precision: |
0.1mm |
Name: |
4-Axis Dual Station PCB Routing Machine |
Warranty: |
1 Year |
Condition: |
New |
Spindle Motor Speed: |
60000rpm/min |
Dimensions(W*D*H): |
1220mm*1450mm*1420mm |
Weight: |
550KG |
Positioning Repeatability: |
0.001mm |
PCB Size (max): |
322mm*322mm |
PCB Thick (max): |
5mm |
Power: |
400W |
Cutting Speed(max.): |
100mm/s |
Axis Precision: |
0.001mm |
Cutting Precision: |
0.1mm |
|
SPINDLE
|
KAVO spindle
|
|
CCD
|
Sony 520 line industrial cameras
|
|
LENS
|
Computar EX2C
|
|
Screw
|
TBI Precision ground ball screw imports
|
|
Guide
|
HIWIN widening Imported linear guide rail
|
|
MOTOR
|
JiaBao LCF Series
|
|
I/O CONTRONL CARD
|
HFC PCI-9074
|
|
DRIVER CONTRONL CARD
|
HFC PCI-9074
|
|
I/O CARD
|
PCI-9074-64pcs/-38pcs
|
|
Static cleanup
|
STATIC-ST401A Series
|
|
Computer
|
(RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
|
|
Machine interface
|
AOC LCD17",Logitech mouse
|
|
Control system
|
Windows XP Professional (Service3,v.3244)
|
|
Operation GUI
|
Chinese Windows XP
|
|
Program edit
|
Inline
|
|
Vision system
|
CCD AOTU offset
|
|
Control system
|
F 1.0.2 version
|
|
Dimensions(W*D*H)
|
1220mm*1450mm*1420mm
|
|
Weight
|
550KG
|
|
Height offset
|
60~110mm
|
|
Motor type
|
JiaBao series
|
|
Positioning repeatability
|
0.001mm
|
|
Axis working area(max)
|
680mm*360mm*50mm
|
|
PCB fixation
|
standard,specialization
|
|
PCB loading/unloading
|
manual
|
|
PCB size (max)
|
322mm*322mm
|
|
PCB thick (max)
|
5mm
|
| Rigidity fixturing |
standard
|
|
Fixturing fixation
|
machinery
|
|
Power
|
400W
|
|
Spindle
|
60000rpm/min
|
|
Protect
|
self/wind cooling
|
|
Cutting speed(max.)
|
100mm/s
|
|
Driving speed(max.)
|
3000mm/s
|
|
Precision of cutting
|
0.01mm
|
|
Vacuum power
|
2.2KW AC 380V
|
|
Vacuum
|
plumb
|
|
Air supply
|
2~5KG/cm2
|
|
Program edit
|
Inline
|
| Function edit |
Line,arc,circula,U-curve
|
|
Program storage
|
HDD
|
|
Vision system
|
SONE colour CCD
|
|
milling cutter offset
|
AUTO
|
|
Vacuum setup
|
AUTO
|
|
Iindicator
|
Iindicator Machine state
|
| tool check |
Automatic detection tool life, the use of time testing
|
|
Motor protect
|
Have overheating, overload, low voltage protection function
|
|
motor over loading check
|
Have Overload, the line is normal, low voltage protection function
|
|
Tool usable time
|
Automatic detection tool life
|
|
Data statistic
|
Separate board model, separating count, diverse counting methods
|
|
Error record
|
Software automatically records all alarms memory of machines
|
|
Axis precision
|
0.001mm
|
|
Cutting precision
|
0.1mm
|
|
Working area protect
|
With four sealed protection
|
|
Door sensor
|
Front and rear safety door micro-switch sensor (optional)
|
