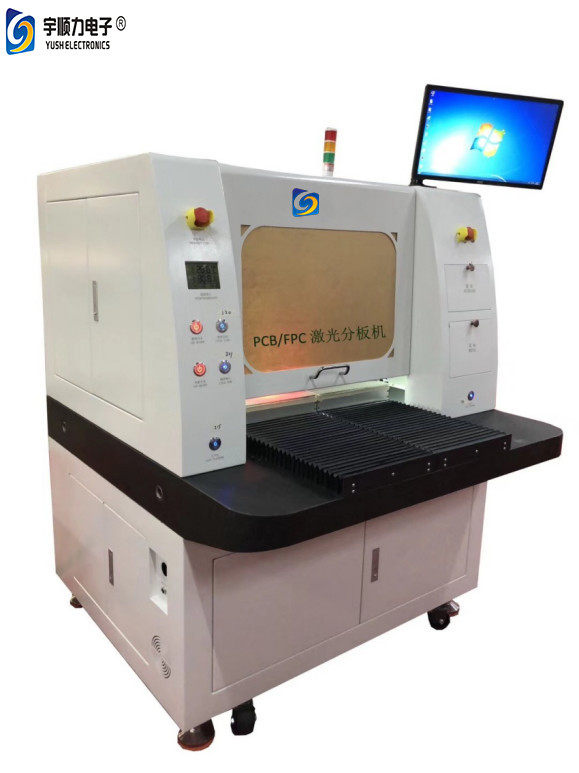

355nm CCD FPC PCB 10W 15W UV Laser Depaneling Machine

Product Details

Place of Origin: China Dongguan

Brand Name: YUSHUNLI

Certification: CE ISO

Model Number: YSV-7A

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000~80000

Packaging Details: plywooden case

Delivery Time: 10-15work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 80Sets/Month

Get Best Price
High Light:

UV Laser Depaneling Machine

,

FPC Laser Depaneling Machine

,

355nm laser pcb depanelizer

Laser Type:
10W UV Laser
Laser Wavelength:
355nm
Max Power :
10W /15w
Repetition Frequency :
1-250kHz
CCD Location Precision:
0.005mm
Max Working Range :
450mm*430mm
Beam Spot Size :
0.015mm ± 0.003mm
Dimension(L*W*H):
1500mmX1800mmX1660mm
Weight(kg) :
1800KG
Laser Type:
10W UV Laser
Laser Wavelength:
355nm
Max Power :
10W /15w
Repetition Frequency :
1-250kHz
CCD Location Precision:
0.005mm
Max Working Range :
450mm*430mm
Beam Spot Size :
0.015mm ± 0.003mm
Dimension(L*W*H):
1500mmX1800mmX1660mm
Weight(kg) :
1800KG
355nm CCD FPC PCB 10W 15W UV Laser Depaneling Machine



355nm 10W /15W High-Precision CCD FPC/PCB UV Laser Cutting Machine



With Perfect CAM interface, it supports the mainstream of the drilling and milling file format; man-machine interface is friendly; optical path is sealed, and it also has stable and reliable integration of compact structure; with modular electronic control system, it’s easy for maintenance.


Used in the procession of the soft and hard combination board (R-F PCBA), including the soft board, soft and hard combination board, which greatly improve the equipment adaptability and lower the price.



FPC UV laser cutting machine application:



1.Used in cutting a variety of flexible circuit board materials and cover film, clean and free carbonization;cutting rigid material With high quality, high speed, the thickness of up to 1mm (0.04 ").
2.Because the UV light is through decomposition and vaporization rather than melting , almost no burrs left after processing.
3.Thermal effect is small, no stratification but after cutting, the cutting edge is precise and smooth, and the sidewall is steep. Can cut a variety of substrate materials, such as silicon, ceramics, glass, etc ;
4.Various functional film of precision etching forming.



YSV-7A is designed for the FPC industry to develop a dedicated machine, fine laser beam control and stability of ultra-fast laser pulse, you can cut any complex graphics to ensure product quality.



355nm CCD FPC PCB 10W 15W UV Laser Depaneling Machine 0



YSV-7A Product feature:
1.After cutting the edges are neat and smooth
2.Don’t produce burrs, there will be no dust / particles residue high precision, especially for small arc and other fine cutting high precision, especially for small arc and other fine cutting

3.Effectively reduce the molding failure rate
4.A composite workpiece with a variety of materials and a combination of different thicknesses can be cut once
5.The laser head can automatically adjust the height, easy to handle double-sided surface-mounted FPC.



355nm CCD FPC PCB 10W 15W UV Laser Depaneling Machine 1



No contact will not produce any mechanical stress and deformation.
Linear motor platform speed, high precision, low wear and tear, easy maintenance, low maintenance costs.









Specification/model   YSV-7A
Laser head  SP (USA)
 laser type 10W UV Laser
Laser wavelength   355nm
Max power  10W /15w
Repetition frequency  1-250kHz
Worktable location precision  ±0.003mm
Worktable repetition precision    ±0.002mm
table reachition range  500mm*500mm
CCD location precision  0.005mm
Max working range  450mm*430mm
Beam spot size  0.015mm ± 0.003mm
Dimension(L*W*H)  1500mmX1800mmX1660mm
Weight(kg)  1800KG





Laser source:

Using the United States imported UV shock Light, excellent optical performance, long life, simple structure, easy to operate. This brand has been use for over 10 years.



355nm CCD FPC PCB 10W 15W UV Laser Depaneling Machine 2

355nm CCD FPC PCB 10W 15W UV Laser Depaneling Machine 3



Galvanometer system :

Using the most advanced galvanometer system in the world.

Equipped with Feedback and automatic calibration equipment Set to ensure the efficiency of processing rate and accuracy.



355nm CCD FPC PCB 10W 15W UV Laser Depaneling Machine 4



355nm CCD FPC PCB 10W 15W UV Laser Depaneling Machine 51.Marble using high-quality "Taishan green" stone by mechanical processing and hand-made fine grinding.
2.Black luster, fine structure, uniform texture, good stability, high strength, high hardness,it can maintain high precision under heavy load.
3.Rock platform has no rust, bearing acid, and resist abrasion



355nm CCD FPC PCB 10W 15W UV Laser Depaneling Machine 6



Features:
► Accuracy class: "000" level, flatness 2um
► Compressive strength: 245 ~ 254 N / mm2
► Elastic modulus: 1.27 ~ 1.47 N / mm2, higher than cast iron
► Linear expansion coefficient: 4.61 × 10-6 / ℃
► Inner damping coefficient: 15 times larger than steel, good rigidity, can shock, shock absorption.
► Shore strength: HS70 above, good wear resistance, 5 to 10 times higher than cast iron to 10 times higher than cast iron



4.CCD



High speed image acquisition system and High-precision image positioning and matching system which ensures the High precision





5.Working platform



THK(China)investment
THK Is the largest suppliers of precision linear motion guide, ball spline, ball screw, cross roller collar, actuators and other product.



355nm CCD FPC PCB 10W 15W UV Laser Depaneling Machine 7
