V Groove 5.0mm Thickness PCB Separator Machine

Product Details

Place of Origin: China Dongguan

Brand Name: YUSHUNLI

Certification: CE ISO

Model Number: YSV-1A

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000~2900

Packaging Details: plywooden case

Delivery Time: 10-15work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 80Sets/Month

Get Best Price
High Light:

5.0mm PCB Separator Machine

,

V Groove PCB Separator Machine

,

5.0mm PCB Depaneling Machine

Max Cutting Length:
460mm Or 600mm
Dimension:
740*550*460mm Or 880*420*320mm(L*W*H)
Cutting Pooint:
0-100-200-300-400mm
Cutting Speed:
300mm/s ,500mm/s
Cutter Point Angle:
26~28°
Conveyor Belt (Options):
1.5 M
Cutting Thickness:
0.6-5.0mm
Minimum Component Distance From V-groove:
1mm
Voltage:
220 V Or 110V, 50/60HZ, 250W
Max Component Height:
30 Mm
Machine Weight:
65kg / 85kg
Max Cutting Length:
460mm Or 600mm
Dimension:
740*550*460mm Or 880*420*320mm(L*W*H)
Cutting Pooint:
0-100-200-300-400mm
Cutting Speed:
300mm/s ,500mm/s
Cutter Point Angle:
26~28°
Conveyor Belt (Options):
1.5 M
Cutting Thickness:
0.6-5.0mm
Minimum Component Distance From V-groove:
1mm
Voltage:
220 V Or 110V, 50/60HZ, 250W
Max Component Height:
30 Mm
Machine Weight:
65kg / 85kg
V Groove 5.0mm Thickness PCB Separator Machine
0.6-5.0mm Thickness V Groove PCB Depanel Machine/PCB Board Separating Machine


Blades Moving PCB Separator

Features

1. Microcomputer program control, precise positioning and good stability.
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display;
4. Separating speed is adjusted by a rotary knob;
5. Handle Intermittent scoring or cut-outs;
6. Board with projected component can be cut precisely;
7. Large stainless steel platform on both side of cutting lade prevents board wobble
and table height and angle are adjustable;
8. Clearance between circular and linear blades are adjustable to fit different groove
depth and compensates for blade wear out.

Application:
Suitablde for cut SMD aluminum PCB, PCB boards and FR4 fiberglass neatly,
effectively quickly. Easy to operate and causing no damdage to components on
boards. Imported high- speed steel blade with long service life, mainly applied in
circuit board industries such as led, SMT, etc.
Specs:

Max Cutting Length
460mm or 600mm
Dimension
740*550*460mm or 880*420*320mm(L*W*H)
Cutting pooint
0-100-200-300-400mm
Cutting Speed
300mm/s ,500mm/s
Cutter point angle
26~28°
Conveyor Belt (Options)
1.5 m
Cutting thickness
0.6-5.0mm
Minimum component distance from v-groove
1mm
Voltage
220 V or 110V, 50/60HZ, 250W
Max component height
30 mm
Machine weight
65kg / 85kg
Machine Warranty period
1 year



Range of application:



1.It is suitable to cut PCB
2. Printed Circuit Board
3. LED Aluminum plate/LED strip/LED light bar
4. Fiberglass panel/sheet

1.Available V-cut thickness: from 0.2mm to 2.0mm
2. Available PCB thickness: from 0.2mm to 3.2 mm
3. Maximum board length: 1300mm



Specifications:

1.For V-cut PCB, Aluminum PCB
2.PCB thickness:0.2-3.2mm
3.PCB length:0-1300mm
4.Fast speed and lowest press
5.Blade moving

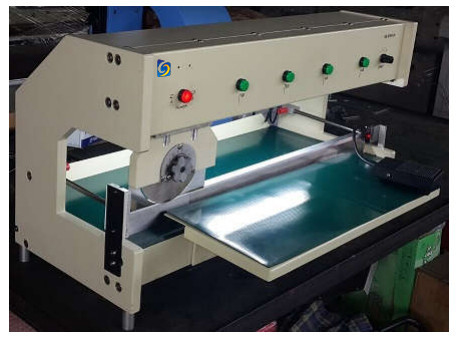

V Groove 5.0mm Thickness PCB Separator Machine 0
