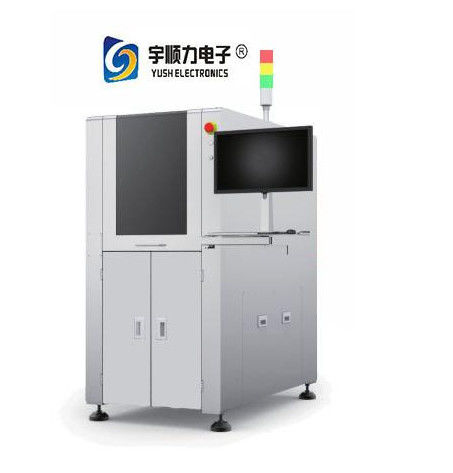

10.6μm Demo CO2 UV Fiber Laser Marking Machine For PCB

Product Details

Place of Origin: China Dongguan

Brand Name: YUSHUNLI

Certification: CE

Model Number: YS-900

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000~10000

Packaging Details: plywooden case

Delivery Time: 10-15work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 80Sets/Month

Get Best Price
High Light:

Demo Fiber Laser Marking Machine

,

PCB Fiber Laser Marking Machine

,

10.6μm Laser Marking Equipment

Laser Typies:
CO2
Wavelength:
10.6(μm)
Laser Output Power (W):
5
Laser Spot Diameter (μm):
80
Scanning Speed (mm/s):
6000
Repeatability(μm):
±125
Topside Clearance(mm):
75
Character Height/width(mm):
0.1~55
Laser Pointer:
Red Light
PCB Thickness(mm):
0.2~6
Laser Typies:
CO2
Wavelength:
10.6(μm)
Laser Output Power (W):
5
Laser Spot Diameter (μm):
80
Scanning Speed (mm/s):
6000
Repeatability(μm):
±125
Topside Clearance(mm):
75
Character Height/width(mm):
0.1~55
Laser Pointer:
Red Light
PCB Thickness(mm):
0.2~6
10.6μm Demo CO2 UV Fiber Laser Marking Machine For PCB

Demo CO2 UV Fiber Laser Marking Equipment For Resin , Rubber , PCB Material



Below is the operation video of CO2 laser marking machine on YuTube





http://www.pcbdepanelingmachine.comhttp://www.pcbdepanelingmachine.comhttps://youtu.be/y_qULFhrvzY

http://www.pcbdepanelingmachine.comhttps://youtu.be/sY_UKL-qHg8

http://www.pcbdepanelingmachine.comhttp://www.pcbdepanelingmachine.comhttps://youtu.be/rmmZkfrSHh8



Applied materials:



Bamboo and wood products, paper, leather, cloth, plexiglass, epoxy resin, fabric, plastic, rubber, ceramics, crystal, jade, glass and artificial stone, the vast majority of non-metallic materials.



Product Advantage:



Print 1D, 2D,text and patterns.

1.Three light source optional can be choosed-CO2,UV & Fiber-optical Support up and down dual laser head design.

2.Dual camera design, as reading as printing With smoke detection.

3.Built-in high power purification device , flow rate to 1000 m³/H

4.Safety door design, closed work process to prevent pollution into work environment. Z axis Optional, more flexible printing.

5.Standard SMEMA communication interface. Narrow-body design, only 0.768m wide.



Application range:



Widely used in clothing leather, buttons, glasses, craft gifts, electronic components, food packaging, plexiglass, fabric cutting, architectural ceramics, PCB, rubber products, shell nameplate marking cutting.



Product parameter:

Model No. M-900 M-940 M-960
Laser typies CO2 UV Fibre
Wave length 10.6(μm) 355(nm) 1064(nm)(Central Wavelength)
Laser output power (W) 5 5 20
Laser spot diameter (μm) 80 15
Scanning speed (mm/s) 6,000 5,000
Repeatability(μm) ±125
Topside Clearance(mm) 75
Character height/width(mm) 0.1~55
Laser pointer Red Light
Barcode Reader CCD on-line detection
Barcode type 1D,2D,RSS Coding,Data,Letters and Figures,Truetype,Marking data
Marking material Resin,Rubber,Plastic&Paper Resin,Rubber,Plastic&Paper,Metal
PCB thickness(mm) 0.2~6
PCBMarking area(mm) 50×40-400×400
Conveyor height(mm) 900±50
Z axis Optional
Double laser light source Optional
Cooling type Mandatory air cooling water cooling wind cooling
Power supply 220V/one-phase/50Hz/8A
Air pressure(bar) 6
Weight(kg) around 500
Dimensions(mm) 768(W)×1,285(D)×1,430(H)
