Product Details
Place of Origin: China Dongguan
Brand Name: YUSHUNLI
Certification: CE
Model Number: YSVC-450
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD1000~40000
Packaging Details: plywooden case
Delivery Time: 5-7work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200Sets/Month
Valid Cutting Size: |
350*350 Mm |
PCB Thickness: |
0.4-6.0mm |
Air Pressure: |
0.5MPa |
Cutting Speed: |
1~100mm/s(adj) |
Voltage: |
AC220V 50/60HZ 1ø |
PCB Material(Resin): |
FR4, CEM1, CEM3 |
SPINDLE: |
KAVO Spindle Or NSK Japan |
Cooling Type: |
Air Compression |
Valid Cutting Size: |
350*350 Mm |
PCB Thickness: |
0.4-6.0mm |
Air Pressure: |
0.5MPa |
Cutting Speed: |
1~100mm/s(adj) |
Voltage: |
AC220V 50/60HZ 1ø |
PCB Material(Resin): |
FR4, CEM1, CEM3 |
SPINDLE: |
KAVO Spindle Or NSK Japan |
Cooling Type: |
Air Compression |

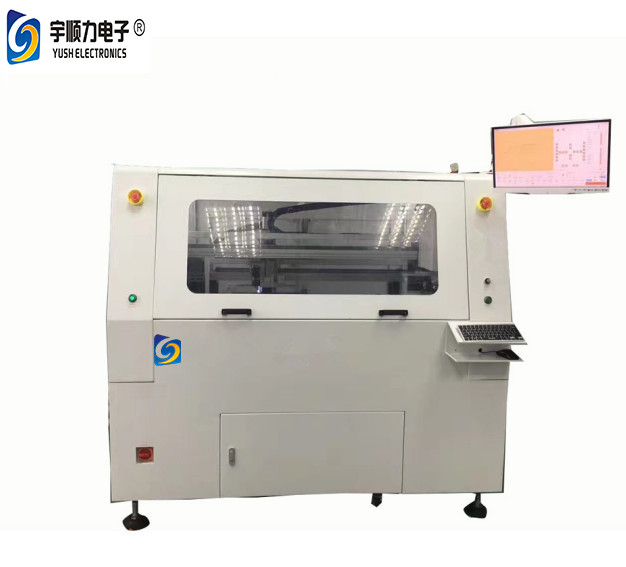

0.4-6.0mm Automated In-Line PCB Depaneling Routers YSVC-450 For FR4, CEM1, CEM3
FEATURES:
• In-Line Automatic PCB Separator can loading, Cutting , unloading automatically, meet the needs of automatic factory.
• It can adjust width and receive PC board automatically. Meanwhile, it can identify the finished PCB board and waste automatically after cutting, save labor costs.
• Equip high-speed CCD with automatic vision alignment system at set, great improve the precision of cutting and operation efficiency.
• Use high-speed main shaft to cut PCB, less cutting stress, high precision, and apply to any form of PCB.
• Dual tables motion could carry out PCB cutting and placing at the same time, improve operation efficiency.
Advantages:
1. Using double slide into place device, reduce the cutting waiting times, increase production capacity.
2. Avoid artificial flap caused by the cracking of tin and part damage and other issues.
3. Avoid using blunt or fold, produced by mechanical stress.
4. Suitable for the finished plate arc and line cutting.
5. Suitable for small pieces of the final cutting, base plate of a mobile phone, PDA, PC interface card and so on.
Operational Vision:
• Diagrammatic window operating pages, easy to learn and operate.
• Directly edit the cutting programming on screen.
System Setting:
• Provides the fine tuning revise by diagrammatic machine.
• Set the related parameters of cutting.
Maintenance Program:
•Provides the fine tuning revise y diagrammatic machine.
•Windows Operational Environment: Easy to learn and operate.
APPLICATION:
•In-line Automatic PCB Separator can loading, cutting, identification, unloading automatically, consistent with operation save labor costs.
•Equip high speed CCD with automatic vision offset at set, especially for high precision and production of PCB cutting process.
•Apply to small connected PCB, such as cell-phone, digital camera, GPS and MODULE, cutting processing.
•Extended size applies to those large PCB of digital TV, PCB mainframe, workstation, and servo cutting process.
•Standard jig or special purpose jig, to aid in PCB cutting to increase production, is optaional.
•Placing working pieces on the dual table to less the waiting time and increase the production.
•You can use variety programs for receiving PC board to achieve fully automation, saving labor costs.
SPECIFICATIONS:
| ITEMS | SPECIFICATIONS |
| SPINDLE | KAVO spindle Or NSK Japan. |
| CCD | Sony 520 line industrial cameras |
| Valid cutting size | 350*350 mm; |
| PCB Thickness | 0.4-6.0mm; |
| Transmission height | 900±50mm |
| Transmission direction | Left -> Right |
| Transmission speed | 1500mm/s(max)/adjustable |
| Feeding plate type | Section-type transportation guide rail |
| Rail width adjustment | Automatic |
| Communication signal of upper and lower computers | SMEMA |
| PCB Positioning | Upper and lower guide rail clamping |
|
Picking system |
360°rotary clamping system; 2 groups of vacuum suction nozzles at most, 4 groups of ESD belt transportation/batch panel forwarding units at most |
| Cooling type | Air compression |
| ESD monitoring | YES |
| Automatic tool change | YES |
| Cutting stress feedback | YES |
| Out plate type | ESD belt transportation/batch panel forwarding unit |
| Procedure programming | GERBER drawing import/Editing program through visual system |
| PCB Material(Resin) | FR4, CEM1, CEM3 etc. |
| Route Bit Diameter | φ0.8, φ1.0, φ1.2, φ1.5, φ2.0 |
| X,Y,Z Axes Control | AC Servo |
| Loading Method | Track Delivery |
| Unloading Method | Track Delivery or Partition Delivery |
| Transfer Method | Vacuum Nozzle Adsorption |
| Movement Direction | Left→Right / Right→Left |
| Cutting function | Offset to straight line, circular, and arc |
| Process table |
Dual tables |
