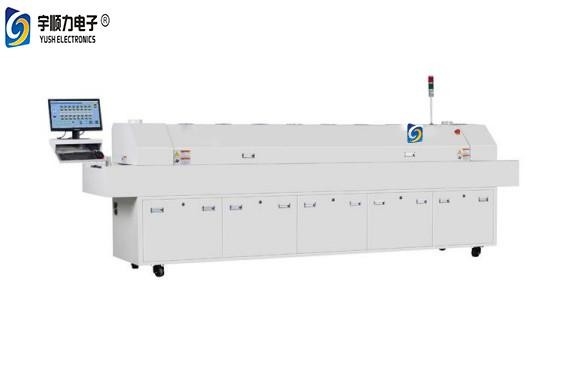

Name: PID Close Loop Control SSR Driving Lead Free Reflow Oven
Brand: YUSHUNLI
SKU: YUSH A8
Price: 1000 USD
Availability: InStock
Rating: 5 (151 reviews)

Product Details

Place of Origin: China

Brand Name: YUSHUNLI

Certification: CE

Model Number: YUSH A8

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD 1000~10000/SET

Packaging Details: plywooden case

Delivery Time: 5-7 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 80Set/Month

Get Best Price

Product Details

Product Description

High Light:
                                                                                                                                                                                                                                                                                                                                                                                SSR Driving Lead Free Reflow Oven, 1000mm/min Lead Free Reflow Oven, PID Close Loop Control reflow oven


Number Of Heating Zones:	UP 8/BOTTOM 8	Length Of Heating Zones:	2800MM
Heating Mode:	Up:hot Air; Bottom: IR	Cooling Mode:	Force Air
Max. Width Of PCB:	350mm	Conveyor Speed:	0-1000mm/min
Power Supply:	5 Line 3 Phase 380V 50/60Hz	Total Power:	38kw
Dimension(LWH):	4200×700×1320mm	Weight:	800KG

Number Of Heating Zones:	UP 8/BOTTOM 8
Length Of Heating Zones:	2800MM
Heating Mode:	Up:hot Air; Bottom: IR
Cooling Mode:	Force Air
Max. Width Of PCB:	350mm
Conveyor Speed:	0-1000mm/min
Power Supply:	5 Line 3 Phase 380V 50/60Hz
Total Power:	38kw
Dimension(LWH):	4200×700×1320mm
Weight:	800KG

PID Close Loop Control SSR Driving Lead Free Reflow Oven

PID Close Loop Control & SSR Driving Lead Free Reflow Oven

Introduction:

No.1 The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the

radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the

special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect"

completely .

2.Using special high temperature resistant protection system in heating preservation system and special iron in furnace .

3.Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise,

shockless and easy for maintenance .

4.Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB .the whole top oven fixtures

can open completely so that easy to clean the oven inside .

No.2 Smooth and reliable transmission system

1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can

running smooth ,speed range can be arrived at 0-1000mm/min.

2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up

to ±20 mm/min .

3.Special stainless belt: durable and wear-resistant, not easy to deform and long life.

No.3 Stable and reliable electrical control system

1.It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast

response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic

control heating .

2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each

temperature zone, transfer and control timely, compensate the temperature balance in each zone .

3 .Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime

effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature

and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control &

the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .

4. Power is abundant, heat up fast, it’s only need 20 minutes from room temperature to constant temperature.

5 .Failure diagnosis and sound light alarm.

6. Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.

Specification:

PID Close Loop Control SSR Driving Lead Free Reflow Oven 2
