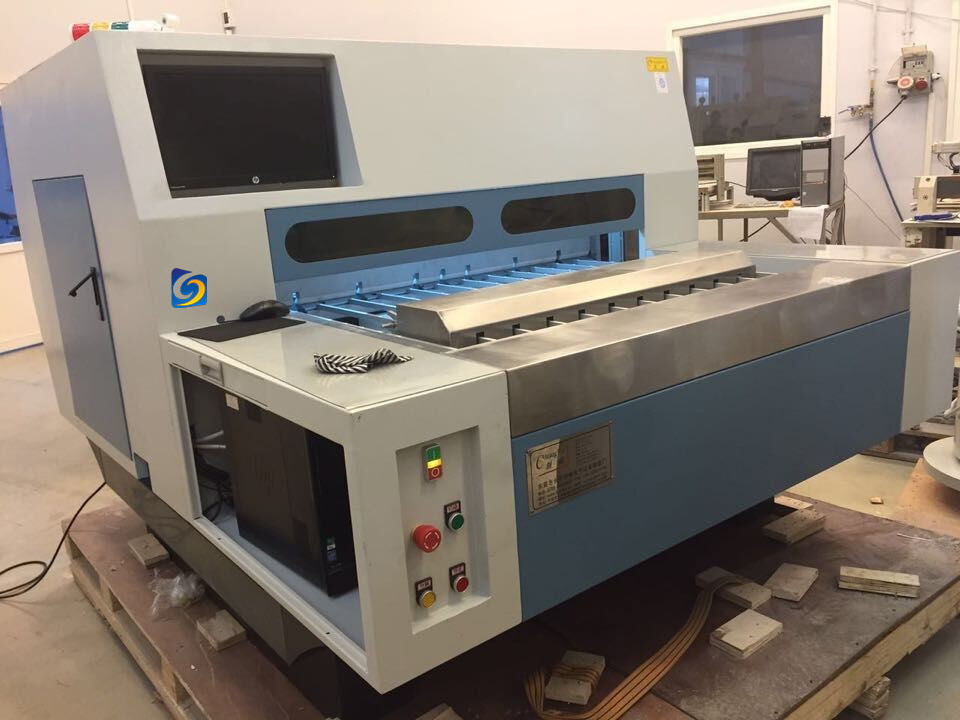

CNC V-CUT Machine YSVC-1200 / Pcb V Cut Machine

CNC V-CUT machine YSVC-1200 feature :

Specification

1. Machine Name: CNC V-CUT machine YSVC-1200 .

2, Power: AC220V ± 5V, 1 ¢ 50HZ 5KVA (requirements must be equipped with a power regulator)

3, The gas source: 0.5Mpa 50NL / Min

4,Vacuum: The minimum amount of wind 15m3 / min; minimum static pressure 50mm / Aq

5, Machining maximum size: 1250mm * 650mm

6, Processing minimum size: 105mm * 105mm

7. Board Thickness: 0.4mm ~ 3.2mm

8, Precision: Parallel accuracy ± 0.05mm, residual thickness precision: ± 0.05mm, pitch: ± 0.05mm Alignment of the upper and lower blade ± 0.05mm

9, The processing position: the distance from the first cutter to edge minimum 8mm, a single side of the cutting line processing unlimited number, can be set arbitrarily.

10. Machine dagger count: the number of machine processing jump knife blade and knife position can be arbitrarily set the number .

11. The residual thickness setting: the machine has three types of residual thickness can be set to three different shades of a single surface residual thickness.

12. The machine structure: machine adopts casting machine base integrated design approach, to ensure the stability of machine performance.

Second, the operating system

1. The machine uses Microsoft WindowsXP system, all english operation interface, easy to understand, approachable,Parameter setting procedure is simple. First, set the number of dimensions of the plate, followed by setting the position of the cutting line data, againSet to complete the processing of the residual thickness.

2. The machine displays illustrations, real-time tracking process icon displays the current processing position, allowing the operator In real time to understand the whole process.

3. The machine has a test function, to avoid improper setting data sheet of scrap in the complete data set after the first board using tests to test cutting short distance to check the cutting position and the actual position is consistent, as can not match the parameter correction processing.

4. Machine tool protection function is set to avoid residual thickness and tool set to set the outer diameter of improper the tool is damaged.

Third, the machine hardware configuration

1. The machine axes were performed using imported servo control system to ensure the stability and performance of the machine precision, pushing the plate axis,Knife shaft and on the knife-axis servo and servo motors, servo wheel servo and servo motors.

2.The main control by the United States six-axis motion control card.
