Single Axis SKD11 Blades PCB CNC V Grooving Machine

Product Details

Place of Origin: China

Brand Name: YUSH

Certification: CE

Model Number: YSVC-450

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000~8900

Packaging Details: Plywooden case

Delivery Time: 5-7 work days

Payment Terms: L/C, D/A, Western Union, MoneyGram, D/P

Supply Ability: 100Sets/month

Get Best Price
High Light:

PCB CNC V Grooving Machine

,

SKD11 Blades CNC V Grooving Machine

,

200W Single Axis cnc v cutting machine

Model:
YSVC-450
Dimensions:
L2600*W850*H1050mm
PCB Thickness:
0.6-5.0mm
Blade Materia:
SKD11
Voltage:
220V/50Hz Or 110V
Weight:
210 Kg
Power:
200W
Model:
YSVC-450
Dimensions:
L2600*W850*H1050mm
PCB Thickness:
0.6-5.0mm
Blade Materia:
SKD11
Voltage:
220V/50Hz Or 110V
Weight:
210 Kg
Power:
200W

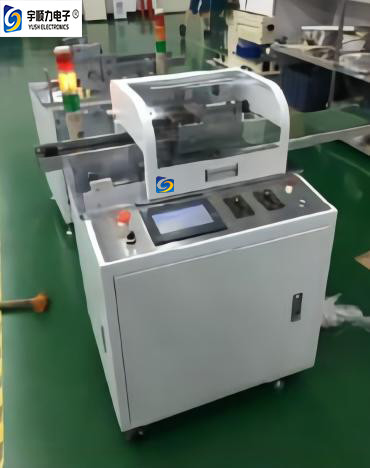

Single Axis SKD11 Blades PCB CNC V Grooving Machine

                Endurable SKD11 high speed steel Single axes Multi-blade PCB CNC Automatic V Groove







Introduction:
YUSH Electronic Technology Co.,Ltd

The machine is equipped with standard upper and bottom two axes, 10 groups of blades
which can separate the 10 lines or more LED light bars at same time.all blades are made
of endurable SKD11 high speed steel.
PCB clamping and conveying system ensure precise separating without deformation and
burrs.
The machine adopts touch screen and PLC control system which can monitor production
information,easy to operate.
Full english operation interface , easy to operate.





Features:
1. The conveying speed can be adjusted.
2. The single separated PCB width is 8-20 mm. Max cutting width 200 mm;
3. Machine with automatic feeding system;
4. Machine is equipped with safety protection device.
5. Suitable cutting material of PCB :aluminum ,FR4,glass fiber.
6. Equipped with SMEMA connector ,easy to connect with upstream machine
7. The machine adopts the touch screen and PLC which can monitor production information.
8. MDS-900 is equipped with multiple sets of blades which can separate the whole light bar
board one time.
9. The distance between upper and lower cutter can be precisely adjusted, the separating
thickness of PCB range is : 0.8MM-3.0MM.
Machine video reference URL:
https://www.youtube.com/watch?v=0sjdORjdIjo
https://www.youtube.com/watch?v=uulxDt_6WfE&feature=youtu.be



YSVC-450- Specifications





Model YSVC-450
Total Dimension L2600*W850*H1050mm
Inlet conveying length 850mm
Outlet conveying length 850mm
Separating blades number 10 groups of upper and lower blades , total:40pcs
PCB Thickness 0.6-5.0mm
Separating PCB bar number at one time 11 LINES
Separting width of single PCB 8-20MM
Max PCB width 200 mm
Max component height 30 mm
Blade material SKD11
Blade average lifespan 1,000,000 times (1.2m long , 3mm thick PCB)
Voltage 220V/50Hz or 110V
Machine weight 210 kg
Power 200W
