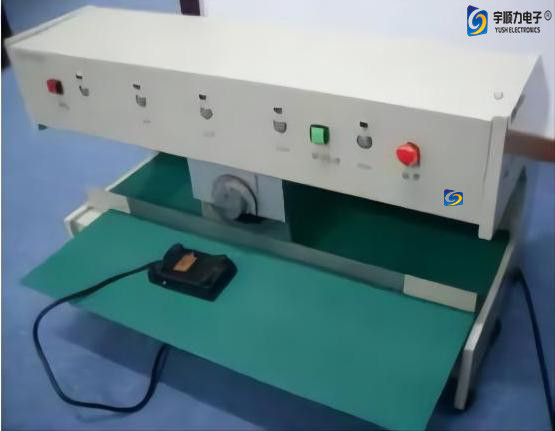

Steel 110V AC 300mm/S 400mm PCB V Cut Machine

Steel 110V AC 300mm/S 400mm PCB V Cut Machine
Steel 110V AC 300mm/S 400mm PCB V Cut Machine Steel 110V AC 300mm/S 400mm PCB V Cut Machine Steel 110V AC 300mm/S 400mm PCB V Cut Machine

Large Image :  Steel 110V AC 300mm/S 400mm PCB V Cut Machine

Product Details:
Place of Origin: JiangSu
Brand Name: YuSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSV-1A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000
Packaging Details: Plywooden case
Delivery Time: 5-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100sets/month

Steel 110V AC 300mm/S 400mm PCB V Cut Machine

Description
Cutting Speed: 300mm/s ,500mm/s Cutter Point Angle: 26~28°
Cutting Thickness: 0.6-5.0mm Cutting Point: 0-100-200-300-400mm
Voltage: 220 V Or 110V, 50/60HZ, 250W Conveyor Belt (Options): 1.5 M
High Light:

400mm PCB Separator

,

300mm/S PCB V Cut Machine

High Speed PCB Separator PCB V Cut Machine 110V AC 960 X 560 X 750mm (Model :YSV-1A)



High Speed PCB Separator PCB V Cut Machine 110V AC 960 X 560 X 750mm / pcb cutting blade





PCB Separator Specification:





Model NoYSV-1A
Machine Dimension960*560*750 mm
Transfer Beltnone
Material of BladeSHK-9 high speed steel
Cutting Speed0-1000 mm / s
Cutting Thickness0.8-3.5 mm
Voltage220VAC / 110VAC
Weight89kg



PCB Separator Feature:





1. One cutting span is 0-460mm/pcb .



2. Cutting blade speed are 2 ype: 500mm/s & 300mm/s.



3. Operate platform adjusting range from 0 to 50mm.



4. Flexible setting design. i.e. micro adjust the upper and lower blade to fit some kinds of thickness of PCB.



5. As per the length of PCB, free setting stop point.



6. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.



7. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job.Dedicated.



to high strength cutting, and excellent toughness, able to cut metal board.







PCB Separator Application:





Aluminum base board



Copper substrate



V-CUT Line FR4 board



Glass fiber board



V-CUT LED light bar panel



V-CUTPCB circuit board



Demo exhibitions:



Steel 110V AC 300mm/S 400mm PCB V Cut Machine 0

Steel 110V AC 300mm/S 400mm PCB V Cut Machine 1



Wooden package:



Steel 110V AC 300mm/S 400mm PCB V Cut Machine 2
