Product Details
Place of Origin: JiangSu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YS-6000PII
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD38000
Packaging Details: Plywooden case
Delivery Time: 6-7days
Supply Ability: 50Sets/Month
Size(L*W*H): |
1300mm*1150mm*1455mm |
Weight: |
1500KG |
Power: |
AC220V / 3KW |
Laser Source: |
All Solid-state UV Lasers With A Wavelength Of 355 Nm |
Laser Power: |
15W Light (US Original Import) |
Material Thickness: |
≤1.0 Mm |
Size(L*W*H): |
1300mm*1150mm*1455mm |
Weight: |
1500KG |
Power: |
AC220V / 3KW |
Laser Source: |
All Solid-state UV Lasers With A Wavelength Of 355 Nm |
Laser Power: |
15W Light (US Original Import) |
Material Thickness: |
≤1.0 Mm |
1300mm*1150mm*1455mm 1500KG YS-6000PII fpcb pcb led laser cutting machine smt separator

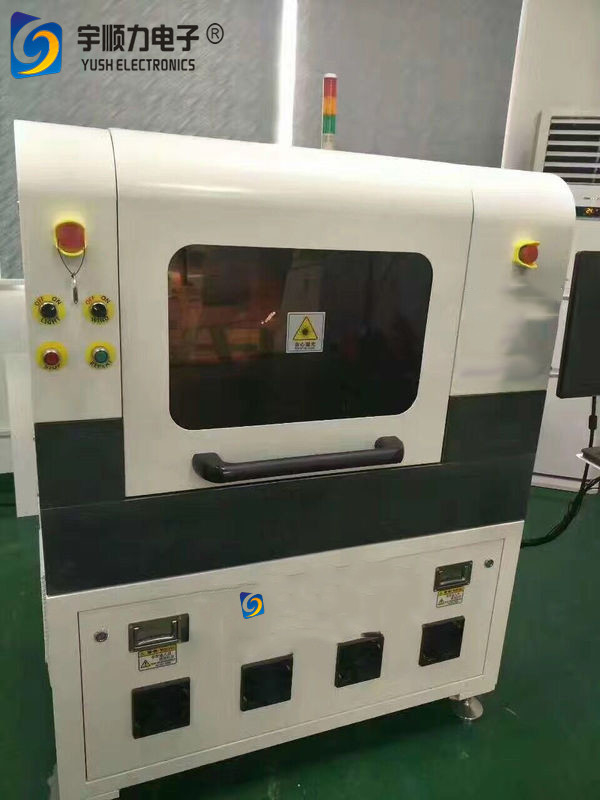

YS-6000PII+ Product Photos
|
Specificaon Model
|
YS-6000PII |
| Size(L*W*H) | 1300mm*1150mm*1455mm |
| Weight | 1500KG |
| Power | AC220V / 3KW |
| Laser source | All solid-state UV lasers with a wavelength of 355 nm |
| Laser power | 15W light (US original import) |
| Material thickness | ≤1.0 mm |
| Machine precision | ±20 μm |
| Platform positioning accuracy | ±2 μm |
| Platform repeatability | ±2 μm |
| Cut the format | 460mm* 460mm |
| Focus spot diameter | 20±5μm |
| Ambient temperature / humidity | 20±2 ℃/＜60 % |
| Machine body | marble |
| Galvanometer system | CTI US original import |
| exercise system | Full Closed Loop AC Linear Motor System |
| Motion control system | PMAC(USA Delta Tau) |
| Necessary hardware and software | Includes PC and CAM software |
Features:
|
● Efficient, fast FPC cutting, has been installed or not mounted PCB sub-board, drilling and covering the window, fingerprint identification chip cutting, TF card sub-board, memory card sub-board, mobile phone camera module cutting application.
|
|
● High degree of automation: galvanometer automatic correction, automatic focus, full automation, the use of laser displacement sensor automatically adjust the focus to the height of the table to achieve fast alignment, saving time and effort
|
|
● Block, delimit, specify block or select area cut and form directly, cut edge neat rounded, smooth without burrs, no overflow glue. Products can be arranged in a matrix for multiple automatic positioning cutting, especially for fine, difficult, complex patterns such as the appearance of cutting.
|
|
● Can be array multi-block cutting, make full use of platform format, an array of cutting multiple pieces of the same kind of processing products, saving up and down time to enhance the efficiency of laser cutting.
● High-precision CCD automatic positioning, focusing, so that positioning fast and accurate, time-saving peace of mind, high efficiency, fast delivery.
● High-performance lasers: the use of international brands of solid-state ultraviolet lasers, with a good beam quality, focusing spot is small, uniform power distribution, thermal effect is small, slit width is small, high cutting quality is the perfect cutting quality assurance.
● Fast and high precision: High precision, low drift galvanometer with fast linear motor system platform combination, fast cutting while maintaining the micron level of high accuracy.
●Fully automatic positioning: the use of high-precision CCD automatic positioning, high precision, without human intervention, simple operation, to achieve the same type of one-click mode, greatly improving production efficiency. ●Exhaust gas treatment system: the suction system can eliminate all the cutting exhaust gas, to avoid the harm to the operator and the pollution of the environment.
●Easy to learn software: independent research and development based on the Windows system control software, easy to operate the Chinese interface, friendly and beautiful, powerful and diverse, easy to operate. |
