Product Details
Place of Origin: SuZhou
Brand Name: YUSH
Certification: CE
Model Number: YSPE-10T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Payment Terms: T/T L/C paypal west union credit card
Supply Ability: 20sets/ month
Flex PCB Punching Machine Fabrication The Use Of Voltage: |
220VAC |
Flex PCB Punching Machine Fabrication Plate Area: |
330×220mm |
Flex PCB Punching Machine Fabrication Working Pressure: |
0.50-0.70Mpa Dry Gas Source |
Flex PCB Punching Machine Fabrication Cylinder Return Mold Opening Force:: |
1.5T 4T 5T |
Flex PCB Punching Machine Fabrication Force:: |
3T 8T 10T |
Flex PCB Punching Machine Fabrication Size:: |
820×740×1750mm |
Flex PCB Punching Machine Fabrication The Use Of Voltage: |
220VAC |
Flex PCB Punching Machine Fabrication Plate Area: |
330×220mm |
Flex PCB Punching Machine Fabrication Working Pressure: |
0.50-0.70Mpa Dry Gas Source |
Flex PCB Punching Machine Fabrication Cylinder Return Mold Opening Force:: |
1.5T 4T 5T |
Flex PCB Punching Machine Fabrication Force:: |
3T 8T 10T |
Flex PCB Punching Machine Fabrication Size:: |
820×740×1750mm |
Features:

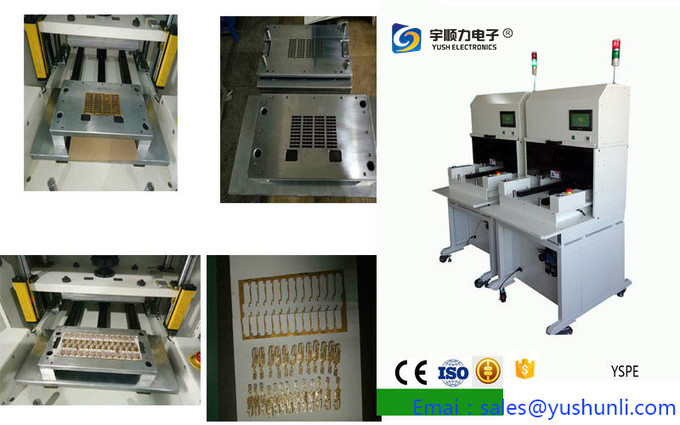

1. Flex PCB punching machine, LED MCPCB punching machine,Flex PCB led punching machine,FPC Rigid PCB punching machine by means of punching dies, to avoid micro-cracks caused by manual.
2. Die toolings is changeable
3. Easy set up of punching dies
4. Loading and unloading PCBs is convenient
5. Easy operation, has safe protection system
6. Air cylinder driven
Flex PCB punching machine, LED MCPCB punching machine,Flex PCB led punching machine,FPC Rigid PCB punching machine
Specifiction:
| Description | LED PCB punch machine |
| Model | Flex PCB punching machine, LED MCPCB punching machine,Flex PCB led punching machine,FPC Rigid PCB punching machine-YSPE |
| Working area | 330*220mm |
| Working pressure | 0.45-0.7Mpa |
| Machine dimension | 730*810*1760mm |
| Cutting precision | ±0.05mm |
| Cycle time | 7.5s/cycle |
| Weight | 650KG |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property | LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Instruction system | International standard instruction system |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Shut height | 80MM |
| Flat area | 690*660MM |
| Flat thickness | 30MM |
| Power | 380/220V |
| Fuse | 3A |
| Composition | Punching machine, Air cylinder, Ottomans, etc |
