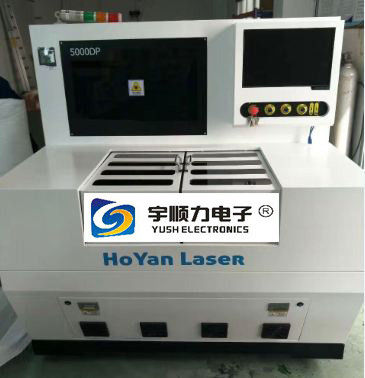

Ultraviolet Laser Cutting Machine - Dual- Table Milling Knife - MicroScan Cutting Machine (Model :5000DP)

Product Details

Place of Origin: JiangSu

Brand Name: YUSHUNLI

Certification: CE

Model Number: 5000DP

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: business negotiation

Packaging Details: wooden package

Delivery Time: 3 days to 7 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 set per month

Get Best Price
High Light:

co2 laser marking machine

,

fiber laser marking machine

,

Ultraviolet Laser Cutting Machine Dual Table

Laser Properties:
Solid Violet Laser
Laser Wavelength:
355nm
Camera Lents:
SCANLAB/CTI
Grating Scale:
Renishaw
CCD:
MVC
Drive Motor:
Yaskawa
Positioning Accuracy:
±2 μm
Processing Accuracy:
±20 μm
Laser Properties:
Solid Violet Laser
Laser Wavelength:
355nm
Camera Lents:
SCANLAB/CTI
Grating Scale:
Renishaw
CCD:
MVC
Drive Motor:
Yaskawa
Positioning Accuracy:
±2 μm
Processing Accuracy:
±20 μm
Ultraviolet Laser Cutting Machine - Dual- Table Milling Knife - MicroScan Cutting Machine (Model :5000DP)

Ultraviolet laser cutting machine - Dual- table milling knife - MicroScan Cutting machine (Model :5000DP)



Technical features:



1. Work Table: Dual-platform working mode, one after the other, always keep the equipment contact uninterrupted work, greatly improve production efficiency, is specialized A device tailored for FPC and PCB processing.


2. Efficient and fast FPC/PCB profile cutting, drilling and film opening, fingerprint identification chip cutting, TF memory card sub-board, mobile phone camera.Applications such as head module cutting.

3. The block, layer, designated block or selected area is cut and directly formed, and the cutting edge is round and smooth, smooth and burr-free, and there is no overflow. Product can The matrix is ​​arranged in multiples for automatic positioning and cutting, which is especially suitable for cutting of fine, difficult and complicated patterns.


4. High-performance laser: It adopts the international first-line brand solid-state UV laser, which has good beam quality, small focused spot and uniform power distribution.The advantages of small thermal effect, small slit width and high cutting quality are the guarantee of perfect cutting quality.


5. Fast and high precision: high precision, low drift galvanometer combined with a fast ironless linear motor system platform for fast cutting while maintaining micro High precision in the order of meters.


6. Fully automatic positioning: High-precision CCD automatic positioning and focusing, making positioning fast, accurate and high precision, no manual intervention, easy to operate,Achieve the same type of one-button mode, greatly improving production efficiency.


7. Exhaust gas treatment system: The suction system can completely eliminate the cutting exhaust gas, avoiding the harm to the operator and the pollution to the environment.


8. High degree of automation: auto-correction of galvanometer, automatic focusing, automatic automation throughout, automatic adjustment of focus to the table with laser displacement sensor.The height of the surface enables quick alignment and saves time and worry.


9. Easy to learn software: self-developed Windows-based control software, easy-to-operate Chinese interface, friendly and beautiful, powerful
Large and varied, easy to operate.



Specification parameters:



Items Machine mode MicroScan 5000DP

















































Config

Laser brand Optowave
Laser power 15W
Laser property Solid violet laser
Laser wavelength 355nm
Vibrating camera lens SCANLAB/CTI

Field lens



SILL/JENOPTIK

Rail



HIWIN
reflector Optowave
Grating ruler Renishaw
CCD MVC



Driver motor



Yaskawa

reflector Optowave
Linear motor igus
355 beam expander Optowave
DC generator HIWIN
355 beam expander Optowave

Dust

processor

HOYAN
Machine material Marble
Motion control card QianliYun
Cutting software Hoyan-ScanCut
  Spot diameter 20± 5um

Max. range



50mm*50mm



















Property config



Cutting thickness



Less than 1.2mm

Repeatability

accuracy

±2 μm

Positioning

accuracy

±2 μm



Processing precision



±20 μm

MAX. Table 350*450mm*350*450mm(2 Table)
Machine size 1350mm(L)×1150mm(W)×1550mm(H)
Folder format Gerber/DXF
Machine weight 2000KG
Working method Dual table















environment

Power AC220V / 3.5KW
Electric requirement 2 phase AC220V
Temperature 20±2 ℃



Humidity



50-60%

Air pressure 0.5~0.6Mpa
vibration ≤5um
Environment requirement 20±2 ℃ /50-60%
Special function Laser QR code(Metal/oil surface)
Cutting material

Cover film, pure glue, blue film

,FR4,PP,PI,FPC, PC



Demo exhibitions:



Ultraviolet Laser Cutting Machine - Dual- Table Milling Knife - MicroScan Cutting Machine (Model :5000DP) 0
