High Speed Pick And Place Machine / Chip Mounter / Chip Shooter

High Speed Pick And Place Machine / Chip Mounter / Chip Shooter
High Speed Pick And Place Machine / Chip Mounter / Chip Shooter

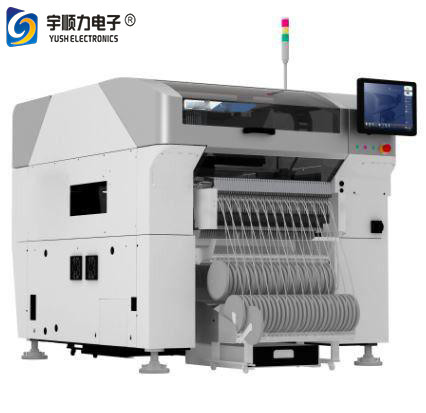

Large Image :  High Speed Pick And Place Machine / Chip Mounter / Chip Shooter

Product Details:
Place of Origin: Japan
Brand Name: Juki
Certification: CE
Model Number: RS-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 78000-99000 piece
Packaging Details: wooden case and vacuum packaging
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 30 piece per mounth

High Speed Pick And Place Machine / Chip Mounter / Chip Shooter

Description
Standard PCB Size: 650mmx370mm Custom PCB Size: 1200mmx370mm
The Electronic Components Height: Max 25mm The Min Electronic Components Size: 0201
Speed: 42000CPH Accuracy: ±0.03mm
Dimension: 1,500×1,810×1,440mm Weight: 1700Kg
High Light:

pick and place soldering machine

,

smt pick and place equipment

Automatic Juki Chip Mounter RS-1 fast smart function



2019 Automatic Juki Chip Mounter RS-1 fast smart function



multi function high speed Automatic Juki pick and place machine RS-1 for SMT assembly line

High Speed Pick And Place Machine / Chip Mounter / Chip Shooter 1

High Speed Pick And Place Machine / Chip Mounter / Chip Shooter 2

Product Introduce:

JUKI has launched its new High-speed SMT Pick and Place Machine,Equipped with a newly developed parallel 8 nozzle head, the JUKI SMT Pick and Place Machine is capable of mounting a wide variety of parts and improving the mounting speed by up to 70%.
The JUKI Pick and Place Machine is robotic assembly machine for mounting electronic components on a "PCB" in the printed board mounting process. In addition to increasing the number of components mounted per cycle from six to eight, JUKI Pick and Place Machine also includes a new mechanism to improve the mounting speed by automatically changing the recognition sensor height.

Product features:

■ No head replacement, newly developed "Parallel 8 nozzle head" with auto-height component recognition sensor
■ Automatically adjust the component recognition sensor of the mounter head from 1 to 25 mm in 5 stages according to the PCB requirements. High productivity is achieved without replacing the placement head, even for parts with different heights, from very small parts to large parts.
■ High placement capacity of 40,000 CPH
■ The distance between the pickup and placement positions is shortened by adopting the new SMT Pick and Place Machine RF series electric feeder.
■ Extensive component compatibility
■ Components from 0.2 mm × 0.1 mm to 74 mm square, 50 mm × 150 mm, and the height of parts up to 25 mm can be mounted. Component range and placement speed have been improved by changing the image recognition to four-part simultaneous recognition and using high-speed motors on the θ (theta) axis of the nozzle. In addition, we adopted a new electric feeder that is smaller, lighter, and thinner. The feeder capacity has been increased to 112 per RS-1 to improve capability of a single machine solution.
■ Implementation of smart mounting process

specifications:

Board size
50×50mm~650×370mm(Single clamping)
Component height
25mm
Component size
0201※~□74mm/50×150mm
Placement accuracy
Placement accuracy
Feeder inputs
max.112(Using RF feeders)
Placement speed
Optimum 42,000CPH
Conveyor specification
standard

High Speed Pick And Place Machine / Chip Mounter / Chip Shooter 3

High Speed Pick And Place Machine / Chip Mounter / Chip Shooter 4
