PCB Separator / FR4 Board Laser PCB Depaneling Machine ±20 μM Precision

China PCB Separator / FR4 Board Laser PCB Depaneling Machine ±20 μM Precision supplier
PCB Separator / FR4 Board Laser PCB Depaneling Machine ±20 μM Precision supplier PCB Separator / FR4 Board Laser PCB Depaneling Machine ±20 μM Precision supplier

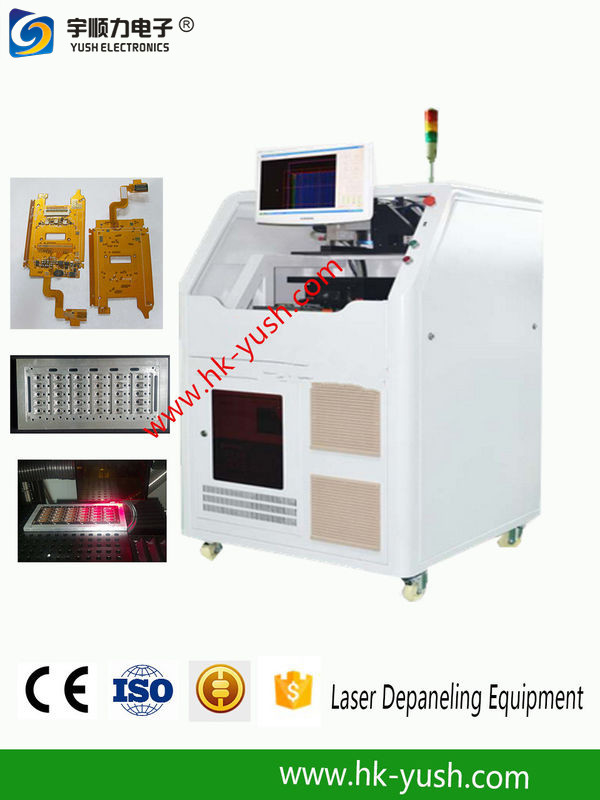

Large Image :  PCB Separator / FR4 Board Laser PCB Depaneling Machine ±20 μM Precision

Product Details:

Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE
Model Number: YSATM-3L

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1000
Packaging Details: Wooden case
Delivery Time: 10 days
Supply Ability: 100/ month
Detailed Product Description
Working Size:: 450*430 Mm Precision:: ±20 μm
Laser Wavelength:: 355nm Laser Power:: 15W(optional)
Type:: UV Laser Brand:: USA Or Germany
Laser Scanning Speed:: 2500mm/s (max)

Laser PCB Separator with ±20 μm Precision for FR4 PCB Boards

  • The laser process is completely software-controlled. Varying materials or cutting contours are easily taken into account through adapting the processing parameters and laser paths.
  • In the case of laser cutting with the UV laser, no appreciable mechanical or thermal stresses occur.
  • The laser beam merely requires a few µm as a cutting channel. More components can thus be placed on a panel.
  • The system software differentiates between operation in production and setting up processes. That clearly reduces instances of faulty operation.
  • The fiducial recognition by the integrated vision system is done in the latest version around 100% faster than before.

Laser Depanelizer Machine,YSATM-3L Feature:

1. High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

2. Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

3. Reduce energy consumption, Cost savings.

4. Cost-effective, fast cutting speed, stable performance





Laser Depanelizer Machine, YSATM-3L Specification:



Parameter

















Technical parameters

Main body of laser 1480mm*1360mm*1412 mm
Weight of the 1500Kg
Power AC220 V
Laser 355 nm
Laser



Optowave 10W(US)

Material ≤1.2 mm
Precisio ±20 μm
Platfor ±2 μm
Platform ±2 μm
Working area 600*450 mm
Maximum 3 KW
Vibrating CTI(US)
Power AC220 V
Diameter 20±5 μm
Ambient 20±2 ℃
Ambient <60 %
The Machine Marble

Laser Depanelizer Machine Principle
