Computer CNC PCB V Cut Machine , 40M / min Circuit Board Cutter

China Computer CNC PCB V Cut Machine , 40M / min Circuit Board Cutter supplier
Computer CNC PCB V Cut Machine , 40M / min Circuit Board Cutter supplier Computer CNC PCB V Cut Machine , 40M / min Circuit Board Cutter supplier Computer CNC PCB V Cut Machine , 40M / min Circuit Board Cutter supplier Computer CNC PCB V Cut Machine , 40M / min Circuit Board Cutter supplier

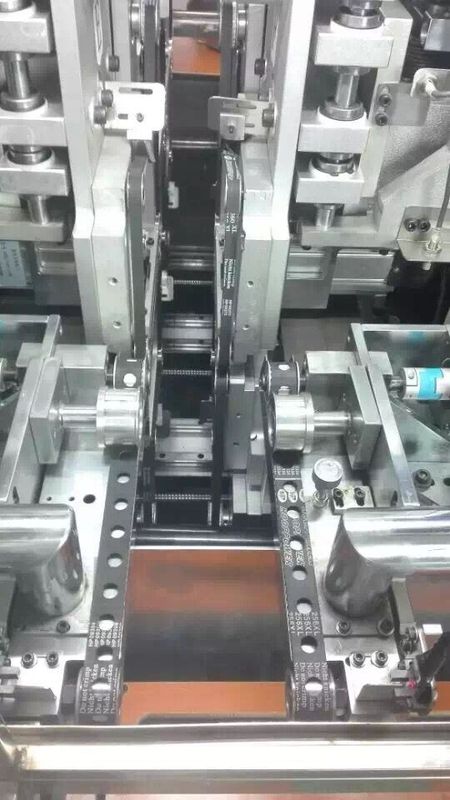

Large Image :  Computer CNC PCB V Cut Machine , 40M / min Circuit Board Cutter

Product Details:

Place of Origin: Jiangsu China
Brand Name: YUSHLI
Certification: CE
Model Number: YSVC-450C

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: 48000-58000
Packaging Details: Plyswooden Case
Delivery Time: 3-5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 set/ week
Contact Now
Detailed Product Description
Feeding And Receiving Mode:: Automatic Retraction Plate Parallel:: ±0.05mm
Gap:: ±0.05mm Machine Dimensions:: Length * Width * Height=1.63 M *1.53 M *1.8m
Machine Weight:: 1500KG Power Supply Demand:: AC380V
Air Pressure Requirements:: 4kg/cm2 Processing Precision:: Residual Thickness: ±0.05mm



Computer CNC PCB V Cut Machine , 40M / min Circuit Board Cutter



Product Description:



1. Computer CNC V Cut Machine (speeds of up to 40M / min, selling India)



2.  Automatically records The use of the tool the number of production in the monitoring of production Among.



3. Auto retractable Boards province suction feed on simple pressure effectively avoid scratching board.



4.  Avoid Touching Intelligent Test tool Change knives reduce operational errors.



5.  CNC automatic operation is quick and easy.



6.  High-Speed High efficiency Rate of up to 40 m / min, a significant reduction in labor costs.



7.  Easy operation screen to the big screen computer Qing Xi large capacity memories.


8.  The machine perfect self-protection failure rate low ongoing maintenance costs.




Computer CNC PCB V Cut Machine , 40M / min Circuit Board CutterComputer CNC PCB V Cut Machine , 40M / min Circuit Board CutterComputer CNC PCB V Cut Machine , 40M / min Circuit Board Cutter

Technical Data:

Cutting the number of knives: 4 knives
Machine dimensions: long 1.63M* width 1.53M* high 1.8M
Positioning mode: Sideway type
Machine Weight: 1500KG
Processing area:

The maximum plate width is 500mm; Plate length is unrestricted.

The minimum plate width is 70mm.

Plate length is 70mm.

Processing precision:

Residual thickness: ± 0.05mm

Parallel: ± 0.05mm

Gap: ± 0.05mm

Processing plate thickness: 0.4mm-3.0mm
Power supply demand: AC380V
Air pressure requirements: 4kg/cm2
The minimum distance from plate side to cutter: 3mm
The Maximum Processing speed: 40m/min,15m/min(Aluminum)
Dust collection flow: 25m3/min
Feeding and receiving mode: Automatic retraction plate
Body appearance: Stainless steel
