High Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum Board

China High Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum Board supplier
High Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum Board supplier High Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum Board supplier High Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum Board supplier High Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum Board supplier High Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum Board supplier High Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum Board supplier

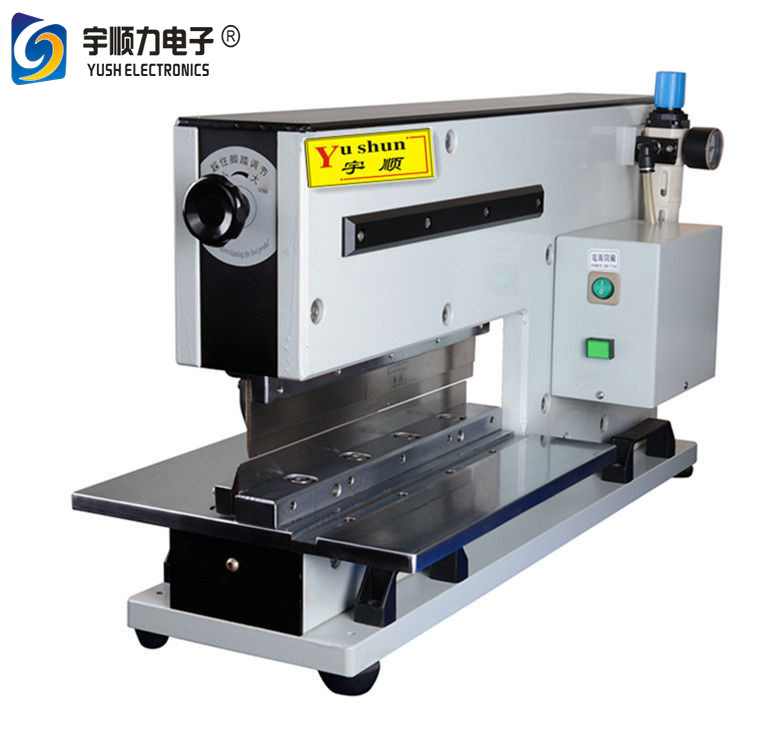

Large Image :  High Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum Board

Product Details:

Place of Origin: China
Brand Name: YuSH
Certification: CE,ROHS, FCC
Model Number: YSVC-2

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 6800-9800 USD
Packaging Details: Plywooden case
Delivery Time: 5-10 days
Payment Terms: Ex works . FOB
Supply Ability: 1000 set /week
Contact Now
Detailed Product Description

High Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum Board



PCB separator  Product Introduction

Using the new gas electric light weight design, built-in SERISOR, completed no shear stress plate cutting once, The machine is especially suitable for cutting precision SMD or sheet. Without Bow waves and micro cracks which produced when using no circular knife type to cut. Using the wedge tool to cut board linearly, and minimize the shear stress , so the sensitive SMD components, and even the capacitor can be not affected, and minimize potential quality risk. Plate cutting stroke below 1MM, no operation safety concerns, cutting tool is made of high speed steel precision grinding, and can repeat grinding, also suitable for sheet metal without V-CUT board operation.





PCB separator  Feature :



1. Double straight knife cutting, quite suitable for separating precise SMD sheet and aluminum board.

2. Guillotine type, and suitable for various thickness PCB, plate cutting stroke below 2mm, no operation safety concerns.

3.The internal stress which is produced during cutting drop to below180uE, In order to avoid split, and prevent precision parts damaged.

4. Can cut the board which the width between the V groove edge and parts is 0.3mm, height is 60mm.

5. The cutting tool can be repeated grinding freely after wearing.



PCB separator  Specification







Maximum length of the board: 300mm / 400mm
Package Size: 720mm(L)*300mm(W)*440(H)
Thickness: 0.50~3.5mm
Power supply: 220VAC / 110V
Working air pressure: 0.4——0.6Mpa
Weight: 189 kg
Scope of application: All V-CUT SMD PCB board






PCB separator  Characteristics

1. The rate of segmentation is 1 separation per second, and is controled by the pedal pneumatic switch .
2. Cutting knife group as a passive start, can be safely grasp cutting line and its position; cutting stress is small, and not easy to form the cracking phenomena.
3. Non roller (roller cutter, samtech cutting) cutting, no dust, no motor drive, no carbon pollution.
4. Non friction type cutting , no residual metal.
5. Blade using warranty 200000/ no power supply, so there is no loss of electrical products, and no replacement.
6. Cutting tool designs by the own company , does not need to import and with high effective .
7. By using of 4-5KG air compressor, it can be used unneccessary a specific cutting site; And the appearance of the machine maintains by wiping oil avoiding rusting.

High Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum BoardHigh Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum BoardHigh Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum BoardHigh Speed V Cut PCB Depanel Circuit Board Cutter for Aluminum Board
